Aiphone
Aiphone IX-DVM Video Door Phone Sub Station
- SKU:
- 21505812
- MPN:
- ix-dvm
- Availability:
- Usually ships the same or next business day. In stock at our OH warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/23/2026 04:53:07 PM PST
- Stock Update:
- 05/23/2026 04:53:07 PM PST
Description
This item is brand-new, factory sealed.

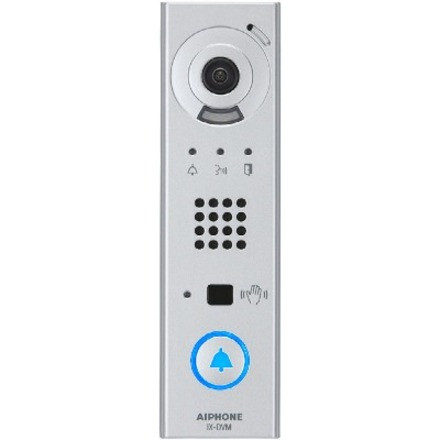

The IX-DVM is a UL Listed mullion-mount IP video door station that is weather and vandal resistant. The station contains a contactless call sensor for touchless call-in. The touchless sensor incorporates a Class 1 laser. The station is equipped with a 720p HD, wide dynamic range fixed color camera that can be streamed to third party devices using ONVIF® Profile S or RTSP. Video can be captured on a microSD™ card.
The IX-DVM can be programmed to call up to 20 different stations with three different call level selections.
Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message, and more). The stations have audible and LED indicators for calling, communication, and door release.
There is one contact output that can be used for door release, and one input that can be used to trigger an outgoing call or answer a call/page.
Features
Yes
Additional Information:
- Power Source: PoE (IEEE 802.3af class 0)
- Camera: 720p HD, wide dynamic range
- Class 1 laser: This product incorporates a Class 1 laser. (transmissions conform with IEC 60825-1:2014)
- Relay Output Output Method: Form C dry contact (N/O or N/C)
- Audio Codec: G.711 (µ-law, A law), G.722
- Video Codec: H.264/AVC, motion JPEG
- Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security: IEEE 802.1X
- Operating Temp: -40° ~ 140°F (-40° ~ 60°C)
- Protection: IP54, IK07
Application/Usage:
Door Entry
Compatibility:
Aiphone IX Series
Country of Origin:
Japan
Specs
| Power Description | |
| Input Voltage |
|
| Power Consumption | 4.60 W |
| Physical Characteristics | |
| Durability |
|
| Height | 6.9" |
| Width | 1.9" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Aiphone |
| Manufacturer Website Address | http://www.aiphone.com |
| Marketing Information | The IX-DVM is a UL Listed mullion-mount IP video door station that is weather and vandal resistant. The station contains a contactless call sensor for touchless call-in. The touchless sensor incorporates a Class 1 laser. The station is equipped with a 720p HD, wide dynamic range fixed color camera that can be streamed to third party devices using ONVIF ® Profile S or RTSP. Video can be captured on a microSD™ card. The IX-DVM can be programmed to call up to 20 different stations with three different call level selections. Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message, and more). The stations have audible and LED indicators for calling, communication, and door release. There is one contact output that can be used for door release, and one input that can be used to trigger an outgoing call or answer a call/page. |
| Product Type | Video Door Phone Sub Station |
| Product Name | IX-DVM Video Door Phone Sub Station |
| Manufacturer | Aiphone Co., Ltd |
| Manufacturer Part Number | IX-DVM |
| Product Model | IX-DVM |
| Camera | |
| Horizontal Viewing Angle | 170° |
