Black Box Network Services

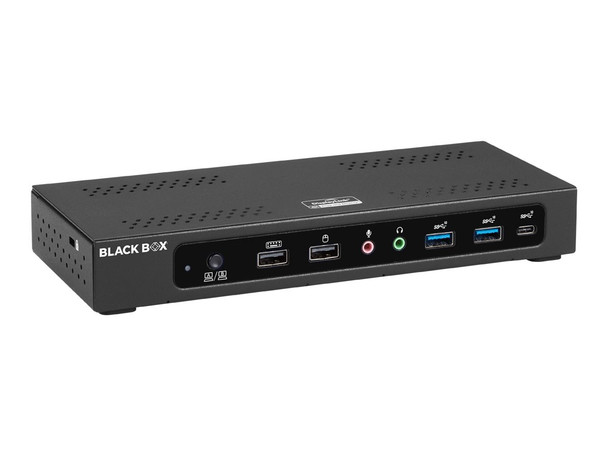

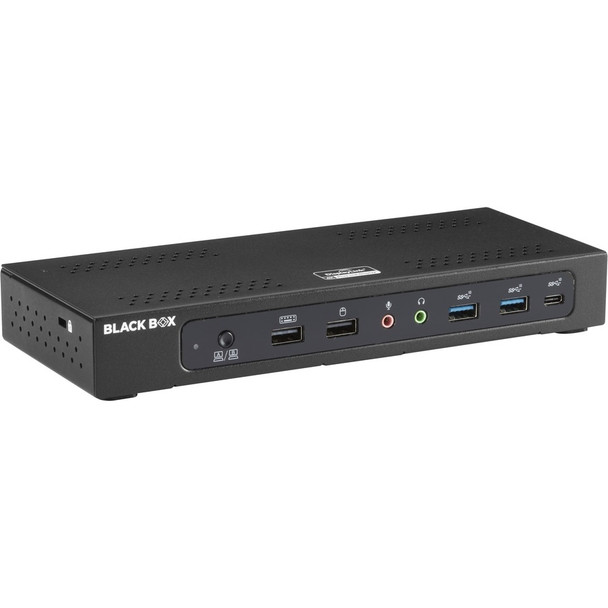

Black Box USBC20004KDUAL USB-C Docking Station
- SKU:
- 19728089
- MPN:
- usbc2000-4kdual
- Availability:
- Out of stock
- Stock Update:
- 05/23/2026 12:12:23 AM PST
- Stock Update:
- 05/23/2026 12:12:23 AM PST
Description
This item is brand-new, factory sealed.
The Black Box USB-C Docking Station - 4K, Dual (USBC2000-4KDUAL) with PD/Alt/KM sharing for laptops merges cutting-edge technology and high-quality hardware with innovative design elements.
Connect two 4K DisplayPort monitors and one 4K HDMI monitor, while sharing one keyboard and mouse with two MacBook Pro or Windows laptop hosts with this multi-port adapter.

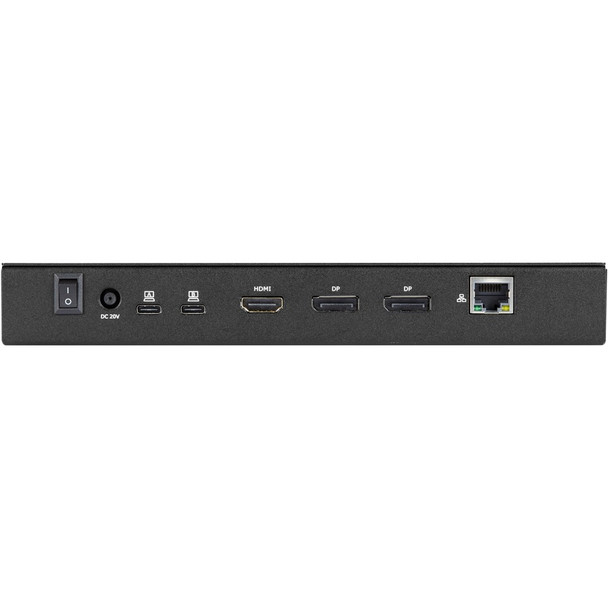

The docking station includes two USB C host ports and cables, one audio-in and one audio-out port for the switched host, one 4K HDMI and two 4K DisplayPort video ports, a LAN port, two super-speed USB 3.2 Gen2x1 Type A ports, and one super-speed USB 3.2 Gen2x1 Type C port for peripherals, one keyboard port, and one mouse port.
Supports Dual Host and Screen-Sharing
With the KVM sharing features add on, the docking station allows the user to switch the display (HDMI/DP/DP) monitors/USB-peripherals via multi-switch mode with a dual host (desktop/laptop/tablet) at the same time.
With the KM sharing feature, the USBC200-4KDUAL enables the user to move the mouse/touchpad cursor between different hosts.
Super-Fast and Backward-Compatible
The USB-C docking station supports USB 3.2 Gen2x1 (10 Gbps) data transmission. Even better, it's backward-compatible with USB 3.0 and 2.0, so you aren't limited by legacy hardware.
Includes USB Host Charging Ports
USB-C host 1 and host 2 ports can charge device 1 and device 2 at the same time. Each device draws 100 W power for a total of 200 W maximum for both host ports.
Package Contents:
- USB-C Docking Station - 4K, Dual
- 1 x USB-C Triple Video Docking Station W/PD
- 2 x USB-C to C Cable
- 1 x Power Adapter, 230 W (20 V/11.5 A)
- 1 x Docking Station VESA Mount
Features
- USB-C Docking Station - 4K, Dual
- 1 x USB-C Triple Video Docking Station W/PD
- 2 x USB-C to C Cable
- 1 x Power Adapter, 230 W (20 V/11.5 A)
- 1 x Docking Station VESA Mount
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Kensington Security Slot:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Maximum Power Supply Wattage | 230 W |
| Power Source Type | Power Supply |
| Physical Characteristics | |
| Weight (Approximate) | 1.50 lb |
| Product Color | Black |
| Height | 3.50" |
| Color Family | Black |
| Width | 8.60" |
| Depth | 1.30" |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Number of USB Type-A Ports | 4 |
| USB Type-C Detail | 3 x USB 3.2 Gen 2 Type C Female |
| Number of RJ-45 Ports | 1 |
| Number of USB 2.0 Ports | 2 |
| Total Number of USB Ports | 7 |
| DisplayPort Version | 1.4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| USB Type-C | Yes |
| Headphone/Microphone Combo Port | Yes |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| Number of HDMI Ports | 1 |
| Host Interface | USB 3.2 (Gen 2) Type C |
| DisplayPort | Yes |
| USB Type-A | Yes |
| HDMI | Yes |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The Black Box USB-C Docking Station - 4K, Dual (USBC2000-4KDUAL) with PD/Alt/KM sharing for laptops merges cutting-edge technology and high-quality hardware with innovative design elements. Connect two 4K DisplayPort monitors and one 4K HDMI monitor, while sharing one keyboard and mouse with two MacBook Pro or Windows laptop hosts with this multi-port adapter. The docking station includes two USB C host ports and cables, one audio-in and one audio-out port for the switched host, one 4K HDMI and two 4K DisplayPort video ports, a LAN port, two super-speed USB 3.2 Gen2x1 Type A ports, and one super-speed USB 3.2 Gen2x1 Type C port for peripherals, one keyboard port, and one mouse port. Supports Dual Host and Screen-Sharing With the KVM sharing features add on, the docking station allows the user to switch the display (HDMI/DP/DP) monitors/USB-peripherals via multi-switch mode with a dual host (desktop/laptop/tablet) at the same time. With the KM sharing feature, the USBC200-4KDUAL enables the user to move the mouse/touchpad cursor between different hosts. Super-Fast and Backward-Compatible The USB-C docking station supports USB 3.2 Gen2x1 (10 Gbps) data transmission. Even better, it's backward-compatible with USB 3.0 and 2.0, so you aren't limited by legacy hardware. Includes USB Host Charging Ports USB-C host 1 and host 2 ports can charge device 1 and device 2 at the same time. Each device draws 100 W power for a total of 200 W maximum for both host ports. |
| Product Type | Docking Station |
| Product Name | USB-C Docking Station - 4K, Dual |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | USBC2000-4KDUAL |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K |
| Supported Resolutions | 4096 x 2160 |
| Device Supported |
|
| Connectivity Technology | Wired |
