Cooler Master

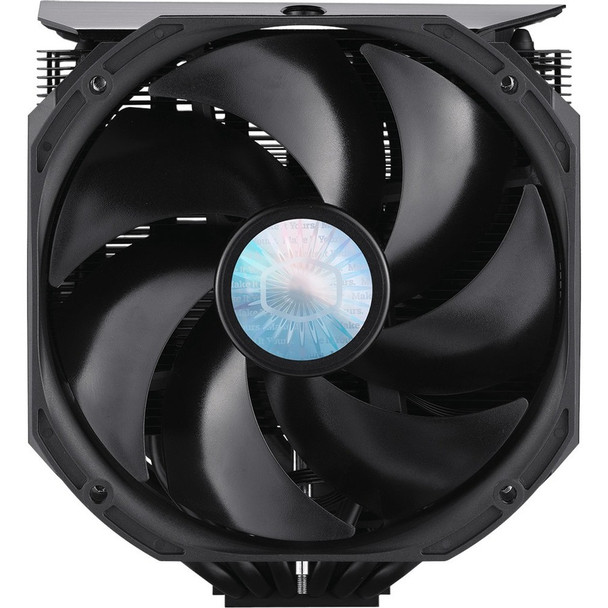

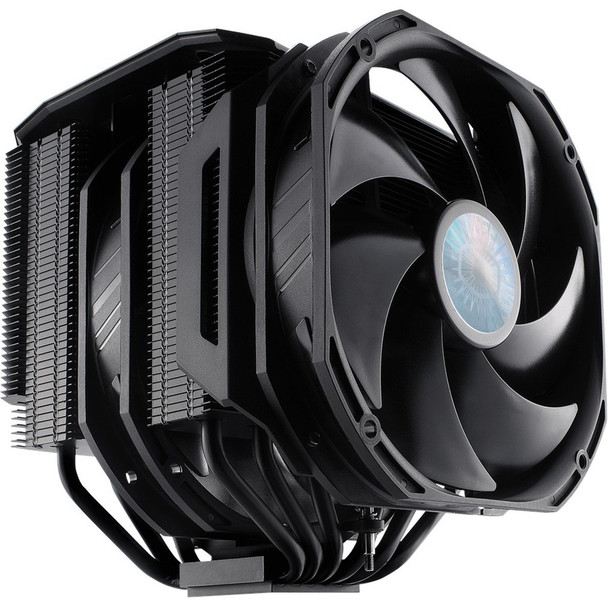

Cooler Master MasterAir MA624 Stealth - 1800 rpm - 4-pin (PW (MAMD6PS314PKR1)
(No reviews yet)
Write a Review
- SKU:
- 18030183
- MPN:
- 252344
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 09/21/2023 08:07:21 PM PST
- Stock Update:
- 09/21/2023 08:07:21 PM PST
Description
This item is brand-new, factory sealed.
PREMIUM AESTHETICSStealth black aluminum top cover matches all-black hardware throughout to offer a premium finish
RELENTLESS COOLING POWER
6 heat pipes and full coverage of nickel-plated copper base provides seamless contact with CPU for excellent heat dissipation.
TWICE THE SURFACE AREA
Dual tower heatsinks provide twice the surface area for better cooling
Best combination of fin thickness and distance between layers ensures maximum airflow through the heatsink
QUIET AND POWERFUL
Twin SickleFlow 140 fans provide optimal airflow and pressure using Push-Pull setup for excellent performance at inaudible noise levels
INCLUDES DUAL SICKLEFLOW 140 & ONE SICKLEFLOW 120
Optional 3rd SickleFlow 120 fan included for necessary RAM clearance
COMPATIBILITY & CLEARANCE
Optimized design for graphic cards compatibility on ATX and M-ATX platforms.
Fan Configuration:
SickleFlow 120 x 1 & SickleFlow 140 x 1
Allows 40mm RAM height for clearance and compatibility.
SickleFlow 140 x1
Concave heatsink design provides up to 70mm RAM compatibility. EXTERIOR COLOR
Black CPU SOCKET
LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 HEAT SINK MATERIAL
6 Heat Pipes, Aluminum Fins FAN QUANTITY
140 mm Fan - 2 PCS, 120 mm Fan - 1 PC FAN SPEED
140 mm Fan - 650-1400 RPM +/- 5%, 120 mm Fan - 650-1800 RPM +/- 5% FAN AIRFLOW
140 mm Fan - 67 CFM (Max), 120 mm Fan - 62 CFM (Max) FAN NOISE LEVEL
140 mm Fan - 10 to 27 dBA, 120 mm Fan - 8 to 27 dBA FAN AIR PRESSURE
140 mm Fan - 2.25 mmH2O (Max), 120 mm Fan - 2.5 mmH2O (Max) FAN MTTF
160,000 Hours FAN POWER CONNECTOR
4-Pin (PWM) FAN RATED VOLTAGE
12VDC FAN RATED CURRENT
0.15A FAN SAFETY CURRENT
140 mm Fan - 0.4A, 120 mm Fan - 0.37A FAN POWER CONSUMPTION
1.8W SERIES
MasterAir COOLER TYPE
Air Cooler HEATPIPES
6Item Dimension (L inchxW inchxH inch)
10 x 8 x 10
Weight
6.00 lb
Warranty Information
5 YEARS
Features
Application/Usage:
Processor
Motherboard
Specs
| Physical Characteristics | |
| Product Material | Nickel Plated |
| Fan Diameter Details | <ul> <li>2 x 140mm</li> <li>1 x 120mm</li> </ul> |
| Heatsink Material | Aluminum |
| Height | 5.7" |
| Width | 6" |
| Depth | 6.3" |
| Interfaces/Ports | |
| Connectors | 4-pin (PWM) |
| Fan Information | |
| Airflow Details | <ul> <li>1 x 67CFM</li> <li>1 x 62CFM</li> </ul> |
| Fan Speed (Min) | 650 rpm |
| Fan Life | 18.3 Year |
| Number of Fans | 3 |
| Fan Speed (Max) | 1800 rpm |
| Noise Levels (A-Weighted) | 27 dB(A) |
| General Information | |
| Brand Name | Cooler Master |
| Manufacturer Website Address | http://www.coolermaster-usa.com |
| Marketing Information | Dual Tower Dual Fan Twice the Performance Cooler Master's MA624 Stealth brings to you twice the performance with dual fans and tower in a striking package. Equipped with jet black hardware throughout, its dark veil is nothing to be underestimated. The twin 140mm SickleFlow fan combined with dual tower heatsink configuration delivers a powerful Push-Pull setup, with its 6 pipes and nickel plated base working in sync to draw heat out rapidly. An optional 3rd 120mm fan is included to you for swap out for necessary RAM clearance. The MA624 Stealth is the ultimate secret weapon to blast away heat. FEATURES | Premium Aluminum Black Top Cover - Black aluminum top cover offers a premium finish Dual Tower Heat Sink - Dual heatsink combination provides twice the surface area for better cooling 6 Heat Pipes with Nickel Plated Base - 6 heat pipes and nickel plated base provides optimal coverage for exceptional cooling Dual SickleFlow 140 Fan - Twin fans utilize Push-Pull setup for optimal airflow and pressure RAM Clearance Option - Optional 3rd SickleFlow 120mm fan included for necessary RAM compatibility and clearance Easy Mounting System - Exclusive All-In-One mounting design for easy installation |
| Product Type | Cooling Fan/Heatsink |
| Product Name | MasterAir MA624 Stealth |
| Manufacturer | Cooler Master Co., Ltd |
| Manufacturer Part Number | MAM-D6PS-314PK-R1 |
| Product Line | MasterAir MA624 Stealth |
| Heatsink Information | |
| Compatible Intel Socket |
|
| Compatible AMD Socket |
|
