Elotouch Electronics
Elo 2094L 20 Class Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms" E331214
- SKU:
- 18251514
- MPN:
- e331214
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/23/2025 06:47:10 AM PST
- Stock Update:
- 03/23/2025 06:47:10 AM PST
Description
This item is brand-new, factory sealed.

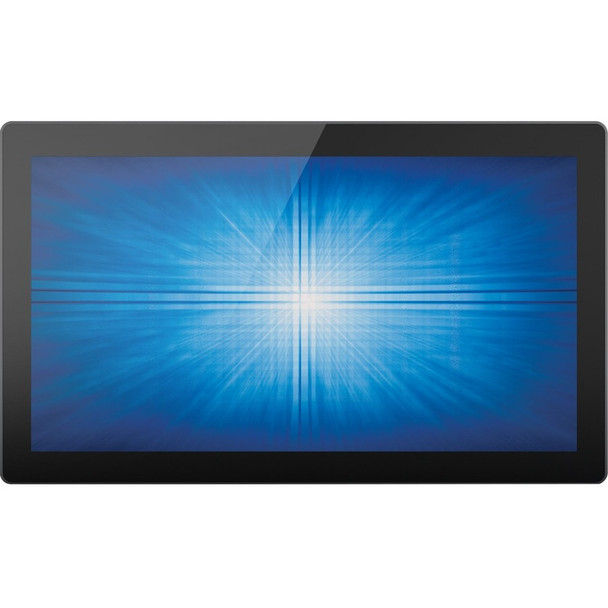

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

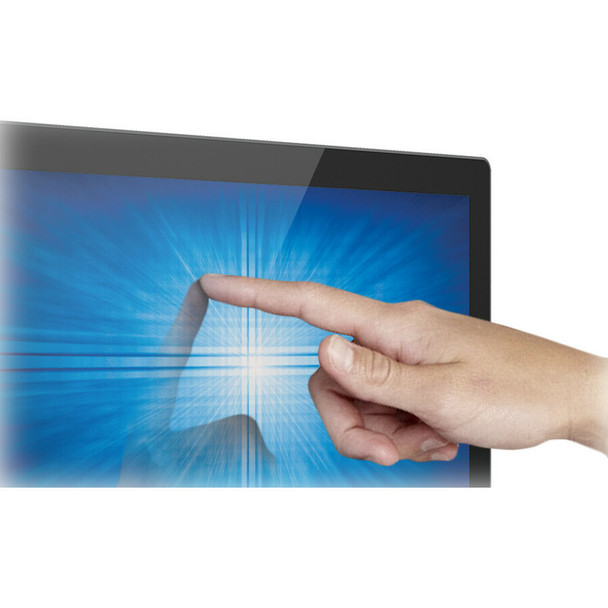

Touch ready.Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.- Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
Package Contents:
- 2094L 19.5" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- Flush Mount Brackets w/Screws
- EEI Label
- Japan Class-B info sheet
Features
- 2094L 19.5" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- Flush Mount Brackets w/Screws
- EEI Label
- Japan Class-B info sheet
Certifications & Standards:
TAA Compliant:
No
Environmentally Friendly:
Yes
Mean Time Between Failures (MTBF):
5.7 Year
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Power Description | |
| Energy Consumption per Year | 29 kWh |
| Operating Power Consumption | 20 W |
| Standby Power Consumption | 1.50 W |
| Off-Mode Power Consumption | 500 mW |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Weight (Approximate) | 10.36 lb |
| Product Color | Black |
| VESA Mount Standard | 100 x 100 |
| Height | 11.2" |
| Color Family | Black |
| Width | 18.9" |
| Depth | 1.6" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| VGA | Yes |
| HDMI Version | 1.3 |
| USB | Yes |
| DisplayPort | Yes |
| HDMI | Yes |
| DisplayPort Version | 1.1a |
| USB Standard | USB 2.0 |
| Video | |
| Brightness | 250 Nit |
| Maximum Refresh Rate | 75 Hz |
| Maximum Resolution | 1920 x 1080 |
| Contrast Ratio | 3,000:1 |
| Color Supported | 16.7 Million Colors |
| General Information | |
| Brand Name | Elo |
| Manufacturer Website Address | http://www.elotouch.com |
| Marketing Information | The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. Touch ready. Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. Other features. Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities Display Port and VGA video interfaces |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Product Name | 2094L 19.5" Open Frame Touchscreen (Rev B) |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E331214 |
| Product Model | 2094L |
| Packaged Quantity | 1 |
| Technical Information | |
| Curved Screen | No |
| Viewable Screen Size | 19.5" |
| Response Time | 20 ms |
| Aspect Ratio | 16:9 |
| Panel Technology | Thin Film Transistor (TFT) |
| Vertical Viewing Angle | 178° |
| Mount Type | Flush Mount |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Screen Mode | Full HD |
| Features | On-screen Display (OSD) |
| Vertical Frequency | 50 Hz to 75 Hz |
| Horizontal Viewing Angle | 178° |
| Backlight Technology | LED |
| Screen Size Class | 20" |
| Touchscreen Information | |
| Touchscreen | Yes |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
