Evga

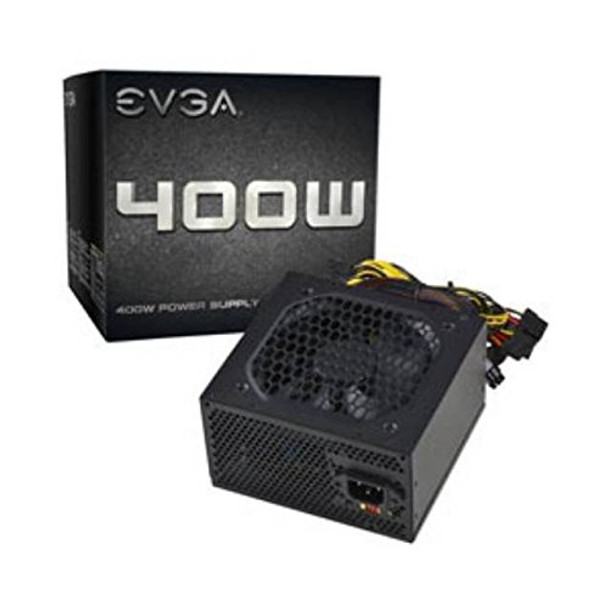

Evga 400w Power Supply - 120 V Ac, 220 V Ac Input Voltage - 3.3 V Dc, 5 V Dc, 12 V Dc, -12 V Dc, 5 V Dc Output Voltage - 1 Fans - Internal (100-n1-0400-l1)

(No reviews yet) Write a Review
SKU:
18047113
MPN:
100-n1-0400-l1
Availability:
Usually ships the same or next business day. In stock at our GA, PA warehouses.
Shipping:
Calculated at Checkout
Stock Update:
07/19/2025 07:28:49 AM PST
$51.00
Buy more, get it as low as $

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 and pay only $45.47 each 45.47
Buy 3 and pay only $43.31 each 43.31
Buy 4 - 8 and pay only $41.30 each 41.3
Buy 9 - 30 and pay only $40.26 each 40.26
Buy 31 or above and pay only $38.41 each 38.41
Stock Update:
07/19/2025 07:28:49 AM PST

Description

This item is brand-new, factory sealed.

Specifications

  • Mfr Part Number: 100-N1-0400-L1
  • Features:
    • Quiet and Intelligent Auto Fan for near-silent operation
    • Heavy-duty protections including UVP (Under Voltage Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • Maximum Power: 400 W
  • Input:
    • Voltage: 100 ~ 240 VAC
    • Current: 10 - 5 A
    • Frequency Range: 50 ~ 60 Hz
  • Type: ATX12V / EPS12V
  • Efficiency: 75% Typical
  • MTBF: 100,000 hours
  • Fan: 1x 120mm Sleeve Bearing Fan
  • Output: +3.3V @ 18A, +5V @ 17A, +12V @ 30A, +5VSB @ 2A, -12V @ 0.3A
  • Connectors: 1x 24pin ATX Main Connector, 1x 8(4+4)pin EPS Power Connector, 1x 8(6+2)pin PCI-Express Connector, 1x 6pin PCI-Express Connector, 4x SATA Connectors, 3x Molex Connectors, 1x Floppy Connector
  • Approvals: TUV, cUL, UL, CE, FCC, WEEE, RoHS
  • Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
  • Weight: 4.0 lbs

Features

Certifications & Standards:
  • cUL
  • UL
  • CE
  • FCC
  • T?V

    •

    Environmentally Friendly:
    Yes



    Environmental Compliance:

    Waste Electrical and Electronic Equipment Directive (WEEE)
    Restriction of Hazardous Substances (RoHS)



    Country of Origin:
    China



    Specs

    Power Description
    Number of +12V Rails1
    Output Power400 W
    Output Current
    • 18 A
    • 17 A
    • 30 A
    • 300 mA
    • 2 A
    • 24 A
    • 15 A
    • 34 A
    • 3 A
    Input Voltage Range100 V AC - 240 V AC
    Input Voltage
    • 120 V AC
    • 220 V AC
    Output Voltage Detail
    • 3.3 V DC @ 18 A
    • 5 V DC @ 17 A
    • 12 V DC @ 30 A
    • -12 V DC @ 300 mA
    • 5 V DC @ 2 A
    Output Voltage
    • 3.3 V DC
    • 5 V DC
    • 12 V DC
    • -12 V DC
    Input Current
    • 5 A @ 120V
    • 10 A @ 230V
    Input Voltage TypeAC
    Physical Characteristics
    Form FactorInternal
    Weight (Approximate)2 lb
    Length5.5"
    Product ColorBlack
    Height3.3"
    Color FamilyBlack
    Width5.9"
    Warranty
    Limited Warranty2 Year
    Interfaces/Ports
    Receptacles
    • 1 x 24-pin ATX Motherboard
    • 1 x 4+4pin ATX12V Motherboard
    • 1 x 6+2pin PCI-E
    • 1 x 6-pin PCI-E
    • 4 x Serial ATA
    • 3 x 4-pin LP4 Peripheral Device
    • 1 x 4-pin SP4 Floppy Drive
    General Information
    Brand NameEVGA
    Manufacturer Website Addresshttp://www.evga.com
    Marketing InformationWhen building on a budget, the EVGA 400W power supply is a great choice at a low cost. Supporting 30A on a single +12V rail provides more options without having to reduce your component requirements. The EVGA 400W offers the connections and protections needed for basic system builds. With a standard 2 year warranty and ultra quiet fan design the EVGA 400W power supply will be a great asset for your next build on a budget.
    Product TypePower Supply
    Product Name400W Power Supply
    ManufacturerEVGA Corporation
    Manufacturer Part Number100N10400L1
    Technical Information
    Specification ComplianceATX12V/EPS12V
    Efficiency75%
    Number of Fans1
    Protection Type
    • Under Voltage
    • Over Power
    • Short Circuit
    ModularNo
    Reliability
    MTBF100000 Hour

    View AllClose
