Kingston 8GB DDR4 SDRAM Memory Module (KSM26RS8/8HDI) KSM26RS8/8HDI

(No reviews yet) Write a Review
SKU:
18059464
MPN:
243426
Availability:
Out of stock
Stock Update:
11/11/2024 02:36:44 AM PST
  • Main
  • Original

Out of stock

Stock Update:
11/11/2024 02:36:44 AM PST

Description

This item is brand-new, factory sealed.

DESCRIPTION

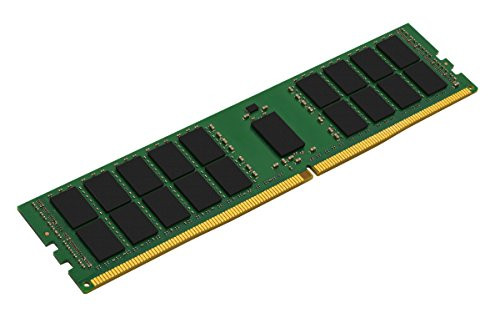

Kingston's KSM26RS8/8HDI is a 1G x 72-bit (8GB) DDR4-2666
CL19 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8,
ECC, memory module, based on nine 1G x 8-bit FBGA
components. The SPD is programmed to JEDEC standard
latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin
DIMM uses gold contact fingers.


FEATURES

Power Supply: VDD = 1.2V

VDDQ = 1.2V

VPP = 2.5V

VDDSPD = 2.41V to 2.75V

Functionality and operations comply with the DDR4 SDRAM datasheet

16 internal banks

Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available

Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Supports ECC error correction and detection

On-Die Termination (ODT)

Temperature sensor with integrated SPD

This product is in compliance with the RoHS directive.

Per DRAM Addressability is supported

Internal Vref DQ level generation is available

Write CRC is supported at all speed grades

CA parity (Command/Address Parity) mode is supportedCL(IDD)
19 cyclesRow Cycle Time (tRCmin)
46.25ns(min.)Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)Row Active Time (tRASmin)
32ns(min.)Maximum Operating Power
See IDD TableUL Rating
94 V - 0Operating Temperature
0oC to +85oCStorage Temperature
-55oC to +100oCIDD Specifications
IDD
Symbol
2400
IDD0
746mA
IDD0A
746mA
IDD1
845mA
IDD1A
866mA
IDD2N
6844mA
IDD2NA
688mA
IDD2NT
729mA
IDD2NL
622mA
IDD2NG
686mA
IDD2ND
677mA
IDD2NP
691mA
IDD2P
443mA
IDD2Q
665mA
IDD3N
698mA
IDD3NA
698mA
IDD3P
477mA
IDD4R
1378mA
IDD4RA
1408mA
IDD4RB
1394mA
IDD4W
1379mA
IDD4WA
1409mA
IDD4WB
1319mA
IDD4WC
1367mA
IDD4WP
1530mA
IDD5B
2218mA
IDD5F2
1713mA
IDD5F4
1551 mA
IDD6N
174mA
IDD6E
239mA
IDD6R
115mA
IDD6A
239mA
IDD7
1641 mA
IDD8
92mA
IPP
Symbol
2400
IPP0
36 mA
IPP1
40mA
IPP2N
21 mA
IPP2P
17mA
IPP3N
100mA
IPP3P
98 mA
IPP4R
128mA
IPP4W
126mA
IPP5B
490mA
IPP5F2
323mA
IPP5F4
260mA
IPP6N
37 mA
IPP6E
52mA
IPP6R
25mA
IPP6A
52 mA
IPP7
142mA
IPP8
18mAItem Dimension (L inchxW inchxH inch)
7 x 3 x 1

Weight
1.00 LB

Warranty Information
Lifetime Warranty

Features

Environmental Certification:
Hazard Assessment of Perfluorooctane Sulfonate (PFOS)



Environmentally Friendly:
Yes



Environmental Compliance:

Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS) 2
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)



Country of Origin:
Taiwan



Specs

Physical Characteristics
Form FactorDIMM
Length5.3"
Number of Pins288-pin
Width1.2"
Warranty
Limited WarrantyLifetime
General Information
Brand NameKingston
Manufacturer Website Addresshttp://www.kingston.com
Product TypeRAM Module
Product Name8GB DDR4 SDRAM Memory Module
ManufacturerKingston Technology Company
Manufacturer Part NumberKSM26RS8/8HDI
Technical Information
Memory TechnologyDDR4 SDRAM
Memory Size8 GB
CAS LatencyCL19
Memory Speed2666 MHz
Device SupportedServer
Memory Voltage1.20 V
Memory StandardDDR4-2666/PC4-21300
Error CheckingECC/Parity
Signal ProcessingRegistered
