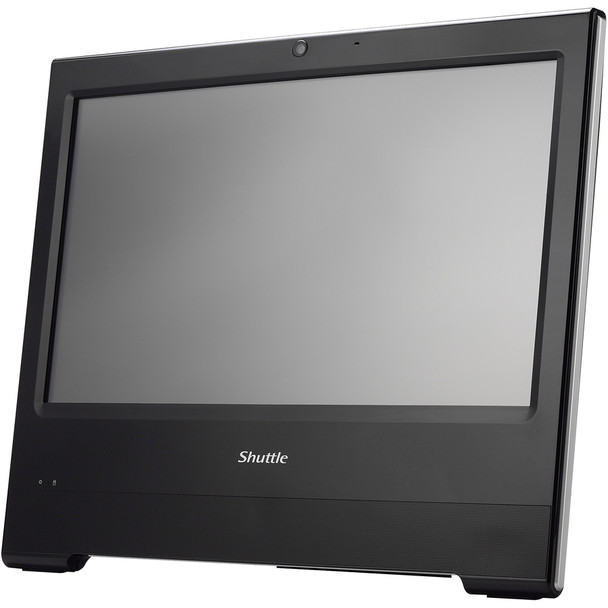

Shuttle XPC X50V6U3 All-in-One Computer - Intel Core i3 [7th Gen] i3-7100U 2.40 GHz - 32 GB DDR4 SDRAM - 15.6" 1366 x 768 Touchscreen Display - Desktop - Black (208393)

This item is brand-new, factory sealed.

All-in-One PC for POS, POI, Kiosk Applications
The Shuttle XPC all-in-one X50V6U3 is the latest addition to the X50 Series and is powered by Intel's Core i3-7100U processor. The all-new 14 nm Kaby Lake architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.Fanless and silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free
24/7 nonstop operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must be kept clear.
- If a hard disk is installed, this must also be approved for permanent
operation by its manufacturer.
IP54 protected
The front panel is dust-protected and protected from
splashing of water according to protection class IP54.
Chassis
Colour: black or white
Dimensions: 391 x 327 x 42 mm (W x H x D)
100mm VESA mount capable
Mounting hole for Kensington lock
Weight: 3.6 kg net, 4.8 kg gross
Operating system
This system comes without operating system.
It is compatible with:
- Windows 10 - 64-bit
- Linux - 64-bit
Touchscreen
Touchscreen function supports fingertip input
Resistive 5-wire single-touch technology
Stylus for the touchscreen included
39.6cm display (15.6")
39.6 cm / 15.6" LCD display, ratio: 16:9 wide-screen panel
Resolution: 1366 x 768 1.05 Megapixel
Backlight unit: High power LED, Luminance: 220 cd/sqm
Glass thickness: 0.5 mm
Processor
Model: Intel Core i3-7100U (ULV)
System-on-a-chip architecture (SoC): no chipset required
BGA1356 package - directly soldered onto the mainboard
Code name: Kaby Lake-U (7th Generation Intel Core)
Cores / Threads: 2 / 4
Clock rate: 2.4 GHz
L1/L2/L3 Cache: 128 kB / 512 kB / 3072 kB
Memory controller: DDR4-2133 Dual Channel (1.2 V)
TDP wattage: 15 W maximum
Manufacturing process: 14 nm
Maximum Tjunction Temperature: 100 ^oC
Supports Hyper-Threading (HT), 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2
Integrated graphics engine
Integrated Graphics
Intel HD Graphics 620
GPU clock frequency: 300-1000 MHz
Execution Units (EUs): 24
Supports DirectX 12
Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardware decoding
Supports Quick Sync Video and Clear Video HD technology
Up to three displays simultaneously
Two video ports support two additional independent screens:
1) HDMI 1.4 supports 1920 x 1080 at 60 Hz or 3840 x 2160 at 30 Hz
2) VGA / D-Sub analog video supports 1920 x 1080 at 60 Hz
Special conditions for operation in Multi-Monitoring mode:
1) Clone mode: all displays show the same content at 1366x768 resolution
2) Extended mode: all displays show different content
BIOS
AMI BIOS in 8 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports hardware monitoring and watch dog functionality
Supports Firmware TPM v2.0 functionality
Memory
2x SO-DIMM slot with 260 pins
Supports DDR4-2133 (PC4-17000) SDRAM at 1.2 V
Supports Dual Channel mode
Supports a maximum of 16 GB per DIMM, maximum total size: 32 GB
Supports two unbuffered DIMM modules (no ECC or registered)
Hard disk drive / SSD
Supports one SATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format
The SATA 3.0 interface supports up to 600MB/s data transfer speed (6 Gbit/s)
Supports one drive with up to 12.5 mm in height
M.2-2280 Slot
The M.2 2280 BM slot provides the following interfaces:
- PCI-Express Gen. 3.0 X4 with up to 32 Gbps Data Transfer Speed
- SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm and a length of 42, 60 or 80 mm (type 2242, 2260, 2280).
Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe SSDs (with M key)
Card Reader
Integrated card reader supports SD, SDHC and SDXC memory flash cards
Webcam
Integrated 2.0 Megapixel (1600 x 1200) HD webcam
Microphone and speakers
Front panel with integrated Electret Condenser Microphone and
2x 2 W speakers
Integrated Audio
Realtek ALC269 Audio Codec
Two analog audio connectors (3.5 mm) on the bottom side:
1) Line-out (head-phones)
2) Microphone input
Digital Audio is supported via HDMI.
Wired Network
Intel i211 Ethernet Controller with MAC, PHY and PCIe interface
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL) from S3, S4 modes
Supports network boot by Preboot eXecution Environment (PXE)
Wireless Network (WLAN)
WLAN chip: Realtek 8188EE
Supports IEEE 802.11b/g/n for 2.4 GHz band
Speed: max. 150 Mbps up-/downstream
Security: WPA/WPA2, WEP
M.2-2230AE card with internal antenna


Package Contents:

• XPC X50V6U3 All-in-One Computer
• Power Adapter
