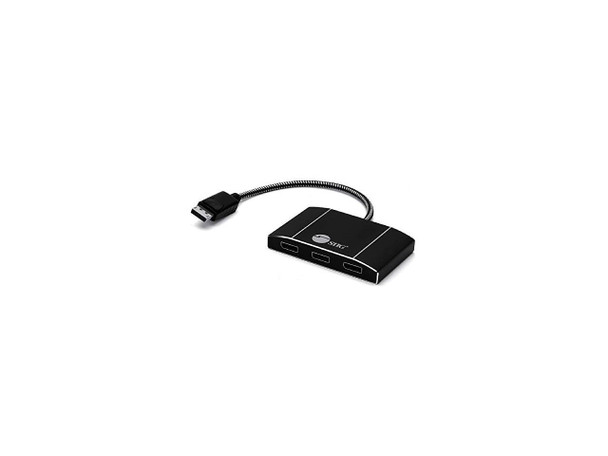

SIIG 8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter CEDP0P11S1

This item is brand-new, factory sealed.

Features

Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity

Provides multiple display modes such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display

Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter

Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less displays. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p, etc.

Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth

Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology

Supports 4K HDR and HDCP 2.2

Reset button allows re-detection of all the displays if any of the displays are not detected

Plug-n-play, trouble-free set up without complicated hardware or driver installation

High quality aluminum housing decreases surrounding electro magnetic interference and provides optimal video quality

Note: Replaces CE-DP0D12-S1



Compatibility Notes:

- Requires either AMD Eyfinity or Intel Collage or NVIDIA Surround technology graphics adapter for Video Wall mode

- Requires a DisplayPort 1.4 graphics card to support minimum of 3 external displays

- Mirror mode using Windows Display Uility and NVIDIA Utility is limited to 2 displays Chipset:
VMM5330 Maximum resolution:
One screen 8K (7680 x 4320) at 30Hz
Two screen 4K at 60Hz
Three screen 4K at 30Hz
Note: If you want to make one screen 8K (7680x4320) at 60Hz, two screens 5K (5120x2880) at 60Hz, and three screens 4K (3840x2160) at 60Hz, please make sure your hosts and sources graphic cards have DisplayPort 1.4 DSC (Display Stream Compression) supportedCompliant with DisplayPort 1.4 specifications Audio:
5.1-ch surround audio Display Modes:
Mirror, Extend, Panoramic video wall
Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode Total Bandwidth
32.4Gbps : Supports a maximum of one 4K at 60Hz display with two 4K at 30Hz displays. Or, three 4K at 30Hz displays. Other resolution permutations which are less than or equal to 4K at 30 will be fine also. For example, three 2K, three 1080p, 4K+2K+1080p etc.
Note: The total combined bandwidth among all connected DisplayPort displays must NOT be exceeded Color:
Black Housing:
aluminum Connector:
1x 20-pin, DisplayPort, Male, Input
3x 20-pin, DisplayPort, Female, Output
1x 5-pin, Micro USB, Female, Input (for power only)
1x Reset button Environmental conditions:
Operating temperature:
32 to 104 degrees F Storage temperature:
-4 to 158 degrees F Relative humidity:
5% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS System Requirements
Desktop computer or laptop with an available DisplayPort 1.4 Dual mode output
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Requires GPU / graphics card to support at least 3 external displays to use all 3 DisplayPort video ports at the same time with extended mode
Requires USB 3.0 power source of at least 5V/600mA Package contents
1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter
Micro-USB power cable
Quick Start GuideItem Dimension (L inchxW inchxH inch)
5 x 1 x 3

Weight
1.00 lb

Warranty Information
2 Years

Package Contents:

• 1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter
• Micro-USB power cable
• Quick Start Guide
