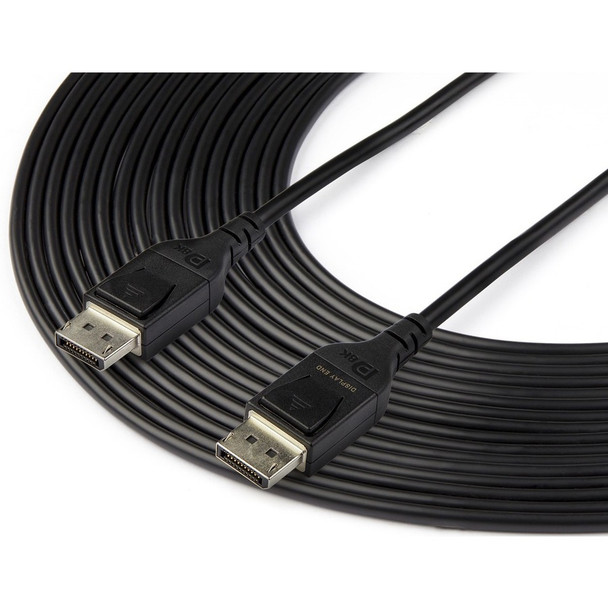

StarTech 50ft/15m DisplayPort Active Optical Cable DP14MM15MAO
(No reviews yet)
Write a Review
- SKU:
- 18179040
- MPN:
- 239192
- Availability:
- Out of stock
- Stock Update:
- 04/16/2025 02:33:28 AM PST
- Stock Update:
- 04/16/2025 02:33:28 AM PST
Description
This item is brand-new, factory sealed.
Deliver a high-quality connection with this DisplayPort 1.4 optical cableExperience crisp video at resolutions of up to 8K 60Hz
Provide a secure connection with locking DisplayPort connectors
This active optical DisplayPort 1.4 cable lets you connect your DP laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. The built-in active signal booster ensures a reliable connection at a distance up to 15 m (49.2 ft.) between your DisplayPort enabled devices.
Experience What DisplayPort 1.4 Has to Offer
This 8K DisplayPort cable supports all DP 1.4 features:
Resolutions up to 8K at 60Hz
HDCP 2.2 support
High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
High Dynamic Range (HDR)
Multi-Stream Transport (MST) for daisy-chaining multiple monitors
32 uncompressed digital audio channels
Backward compatible with 5K 60Hz, 4K 120Hz and previous generations of DP HARDWARE
Cable Jacket Type
PVC - Polyvinyl Chloride Cable Shield Type
Aluminum-Mylar Foil with Braid Connector Plating
Nickel Number of Conductors
19 CONNECTOR(S)
Connector A
1 - DisplayPort (20 pin) Latching Male Connector B
1 - DisplayPort (20 pin) Latching Male Cable Length
590.6 in 15000 mm Color
Black Connector Style
Latching Wire Gauge
28 AWG WHATS IN THE BOX
Included in Package
1 - 15 m DisplayPort CableItem Dimension (L inchxW inchxH inch)
11 x 11 x 4
Weight
4.00 lb
Warranty Information
Lifetime Warranty
Features
Environmentally Friendly:
Yes
Taiwan
Yes
Compatibility:
- Dell XPS 11th Gen
- HP Z2 G8 Tower
- Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo
- NVIDIA Quadro P Graphics Cards
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Weight (Approximate) | 0.93 lb |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Color Family | Black |
| Shipping Weight (Approximate) | 1.43 lb |
| Shipping Width | 10.43" |
| Shipping Height | 3.07" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This active optical DisplayPort 1.4 cable lets you connect your DP laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. The built-in active signal booster ensures a reliable connection at a distance up to 15 m (49.2 ft.) between your DisplayPort enabled devices. Experience What DisplayPort 1.4 Has to Offer This 8K DisplayPort cable supports all DP 1.4 features: Resolutions up to 8K at 60Hz HDCP 2.2 support High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps High Dynamic Range (HDR) Multi-Stream Transport (MST) for daisy-chaining multiple monitors 32 uncompressed digital audio channels Backward compatible with 5K 60Hz, 4K 120Hz and previous generations of DP Easy Installations This durable yet lightweight active DP 1.4 cable features both copper and optical fiber conductors enabling a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed. The DisplayPort connectors also feature latches that provide a secure connection between your devices. Comprised of a fiber and copper wire mix, this active cable is less susceptible to EMI interference, for a clear and reliable audio/video signal. DP14MM15MAO is backed by a StarTech.com lifetime warranty and free lifetime technical support Note: This cable features unidirectional architecture, please refer to the "display" label on the HDMI connectors to ensure installed in the correct direction. More from the Manufacturer More from the Manufacturer |
| Product Type | Video Cable |
| Product Name | 15 m (49.2 ft.) Active Optical DisplayPort 1.4 Cable |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP14MM15MAO |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Connector Gender on First End | Male |
| Data Transfer Rate | 32.4 Gbit/s |
| Cable Type | Fiber Optic |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Shielding | Yes |
| Device Supported |
|
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Plating | Nickel |
| Supported Resolution | 7680 x 4320 |
| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.4 Digital Audio/Video - Male |
| Cable Length | 49.21 ft |
| Features |
|
| American Wire Gauge | 28 AWG |
