StarTech.com 2 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA Power (PCIUSB3S22)
- SKU:
- 18146388
- MPN:
- pciusb3s22
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/22/2023 12:49:31 AM PST
- Stock Update:
- 03/22/2023 12:49:31 AM PST
Description
This item is brand-new, factory sealed.

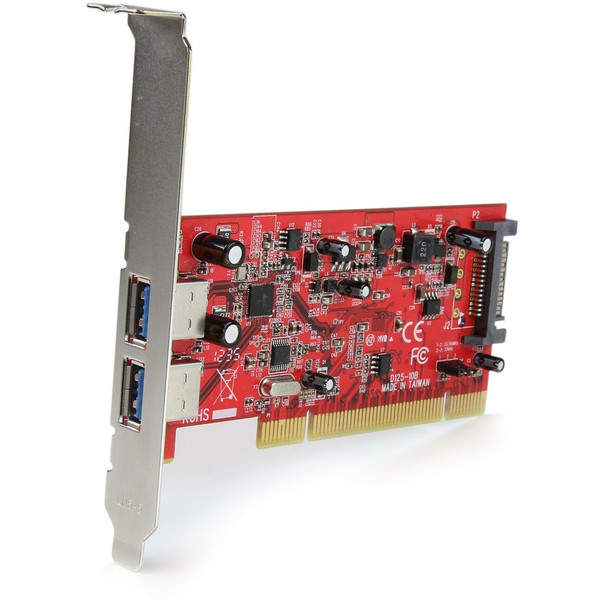

Add 2 SuperSpeed USB 3.0 ports to a computer through a PCI slot. The PCIUSB3S22 2-Port PCI to USB 3.0 Card enables you to connect USB 3.0 peripherals to a PC through a legacy PCI host bus, which doubles the data transfer speeds when used with USB 3.0 peripherals than would be possible with a USB 2.0 host connection - up to 1.3 Gbps (PCI bus limit).
The card features an optional SATA power connection, which enables each port to supply up to 900mA of power to USB 3.0 bus-powered devices.
By supporting a legacy (PCI) host connection, the card adds updated peripheral connectivity, without having to upgrade to a PCIe-equipped motherboard or rely on the backward compatibility of USB 3.0 peripherals.
Guaranteed to provide reliable performance, the PCIUSB3S22 PCI USB 3.0 card is backed by lifetime warranty and free lifetime technical support.
Package Contents:
- PCI USB 3.0 Card
- 1x Low Profile Bracket
- 1x Driver CD
- 1x Instruction Manual
Features
- 2 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA Power
- 1x Low Profile Bracket
- 1x Driver CD
- 1x Instruction Manual
Environmental Certification:
REACH
WEEE
RoHS
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Platform Supported:
PC
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Thickness | 400 mil |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 2.12 oz |
| Length | 4.8" |
| Product Color | Red |
| Height | 2.2" |
| Width | 0.4" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Number of SATA Ports | 1 |
| Number of USB 3.2 Ports | 2 |
| Total Number of USB Ports | 2 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The PCIUSB3S22 2-Port PCI to USB 3.2 Gen 1 Card enables you to connect USB 3.2 Gen 1 peripherals to a PC through a legacy PCI host bus, which doubles the data transfer speeds when used with USB 3.2 Gen 1 peripherals than would be possible with a USB 2.0 host connection - up to 1.3 Gbps (PCI bus limit). The card features an optional SATA power connection, which enables each port to supply up to 900mA of power to USB 3.2 Gen 1 bus-powered devices. By supporting a legacy (PCI) host connection, the card adds updated peripheral connectivity, without having to upgrade to a PCIe-equipped motherboard or rely on the backward compatibility of USB 3.2 Gen 1 peripherals. Guaranteed to provide reliable performance, the PCIUSB3S22 PCI USB 3.2 Gen 1 card is backed by lifetime warranty and free lifetime technical support. More from the Manufacturer |
| Product Type | USB Adapter |
| Product Name | 2 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA Power |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PCIUSB3S22 |
| Packaged Quantity | 1 |
| Media & Performance | |
| UASP Support | Yes |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Host Interface | PCI-X |
