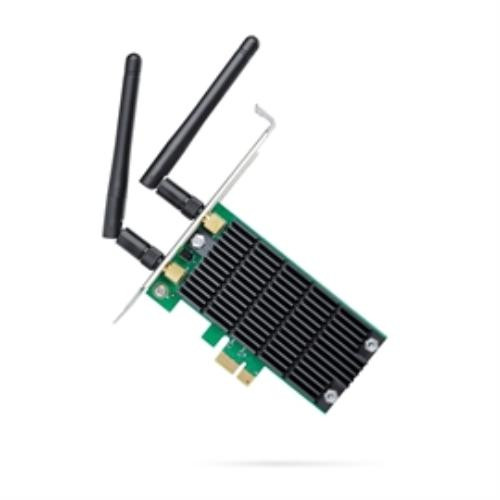

TP-Link Archer T4E - 2.4G/5G Dual Band Wireless PCI Express Adapter for Desktop Computer ARCHER T4E

This item is brand-new, factory sealed.

802.11ac - Dual Band Wi-Fi for Faster Connections
TP-LINKs Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.

Easy Setup
Simple software installation with the intuitive Utility on the provided CD

Advanced Security
WAP,WPA/WPA2,WPA-PSK/WPA2-PSK encryption standards ensure your data is safe from intruders

Operating System
Supports Windows 10/8.1/8/7/XP(32/64 bit)

Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases

HARDWARE FEATURES
Interface
PCI Express
Antenna Type
2 Dual Band Detachable AntennasWIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Signal Rate
5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity
5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm
2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm
Transmit Power
5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes
Ad-Hoc / Infrastructure mode
Wireless Security
Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAMOTHERS
Certification
CE, FCC, RoHS
Package Contents

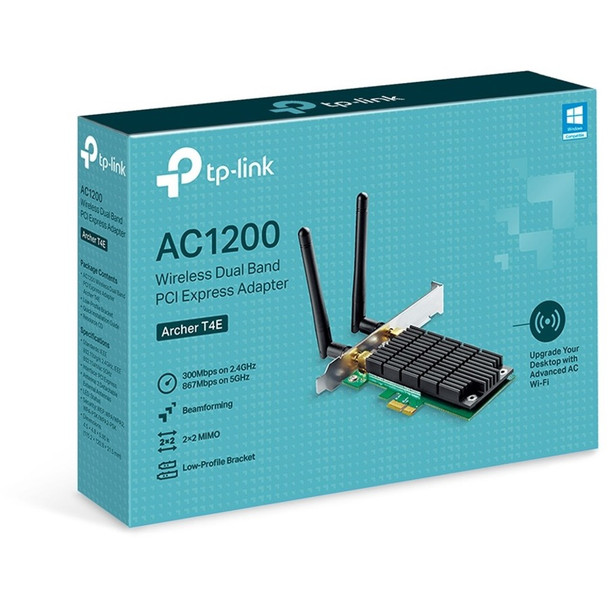

AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD
System Requirements
Windows 10/8.1/8/7/XP (32/64bit)
Environment
Operating Temperature: 0^oC - 40^oC (32^oF - 104^oF)
Storage Temperature: -40^oC - 70^oC (-40^oF - 158^oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensingItem Dimension (L"xW"xH")
9 x 6 x 2

Weight
1 lb

Warranty Information
2 Years

Package Contents:

• AC1200 Wireless Dual Band PCI Express Adapter
• Low-Profile Bracket
• Quick Installation Guide
• Resource CD
