Transition Networks SISTG1013211LRTB Ethernet Media Converter
- SKU:
- 19248541
- MPN:
- sistg1013-211-lrt-b
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/11/2025 06:23:09 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $343.57 each 343.57 |
- Stock Update:
- 05/11/2025 06:23:09 AM PST
Description
This item is brand-new, factory sealed.
Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Multi-Mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - Rail-mountable - TAA Co- Total Number of Ports: 2
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 1
- Number of SC Ports: 1
- Media Type Supported: Twisted Pair
- Package Dimensions: 4 x 4 x 1 inches

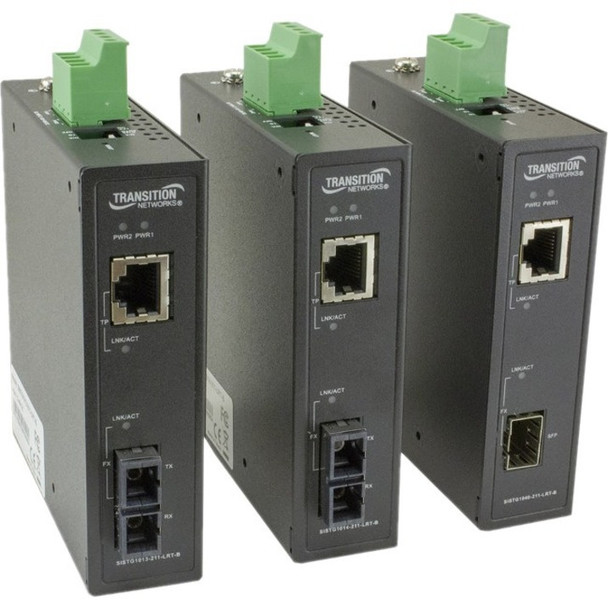

The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs. It has redundant input power connections to ensure safe reliable operation in temperatures between -40C and +75C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry. Manufacturer: Transition Networks, Inc. Manufacturer Part Number: SISTG1013-211-LRT-B. Brand Name: Transition Networks. Product Series: SISTG10xx-211-LRT-B. Product Model: SISTG1013-211-LRT-B. Product Name: Unmanaged Hardened Gigabit Ethernet Media Converter. Product Type: Transceiver/Media Converter. [Interfaces/Ports] Total Number of Ports: 2. Network (RJ-45): Yes. Number of Network (RJ-45) Ports: 1. Number of SC Ports: 1. [Media & Performance] Media Type Supported: Twisted Pair. Optical Fiber. Fiber Mode Supported: Multi-mode. Fiber Optic Wavelength: 850 nm. Maximum Distance Supported: 1804.46 ft. Fiber Optic Cable Standard: 62.5/125 m. 50/125 m. [Network & Communication] Ethernet Technology: Gigabit Ethernet. Network Technology: 1000Base-SX. 10/100/1000Base-T. [Power Description] Power Source: Power Supply. [Physical Characteristics] Form Factor: Rail-mountable. Height: 4.3". Width: 1.2". Depth: 3.9". Weight (Approximate): 15.52 oz. [Miscellaneous] Package Contents: Unmanaged Hardened Gigabit Ethernet Media Converter DIN Rail Mounting Brackets . Environmentally Friendly: Yes. Environmental
Features
- Unmanaged Hardened Gigabit Ethernet Media Converter
- DIN Rail Mounting Brackets
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Weight (Approximate) | 15.52 oz |
| Height | 4.3" |
| Width | 1.2" |
| Depth | 3.9" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | Transition Networks |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry. |
| Product Type | Transceiver/Media Converter |
| Product Name | Unmanaged Hardened Gigabit Ethernet Media Converter |
| Manufacturer | Transition Networks, Inc |
| Manufacturer Part Number | SISTG1013-211-LRT-B |
| Product Model | SISTG1013-211-LRT-B |
| Product Series | SISTG10xx-211-LRT-B |
| Media & Performance | |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported |
|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Fiber Optic Cable Core/Cladding Specification |
|
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
