ACP 302089 J5create Accessory Jcd542 Usb-c Dual Hdmi Docking Station Retail

This item is brand-new, factory sealed.

USB-C Dual HDMI Docking Station

DisplayPort Alt Mode / USB Power Delivery Compatible

Model: JCD542

This dual display docking station adds dual HDMI monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.

This USB 3.0 docking station comes equipped with all the connections you need including three USB 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C dock ensures an easy connection regardless of your USB-C ports location and can easily fit into any workspace environment.

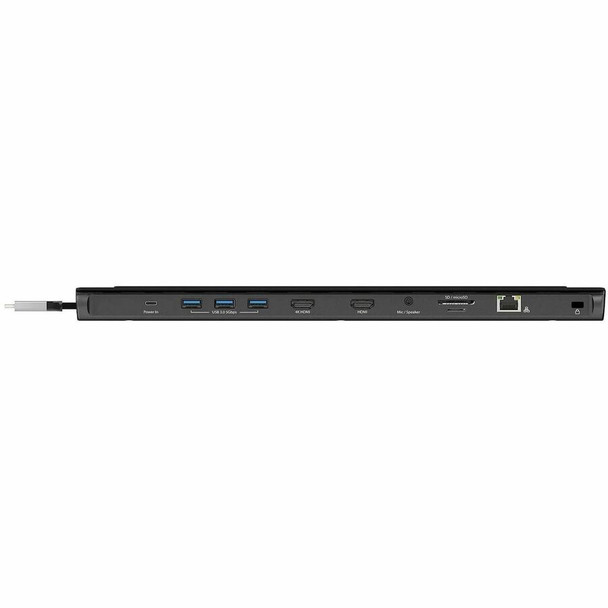

10 Ports In One Sleek Design For All Your Needs

Dual HDMI Displays

Create a dual-monitor set up and boost your productivity. One of the HDMI ports can output resolutions up to 4K, while the other can output resolutions up to 2K.

Extend or Mirror

Connect up to 2 external monitors (driver required). Your laptop display, plus the 2 external monitors, gives you a total of 3 monitors.

100W Power Delivery Pass-Through

Power and charge your laptop, while powering all devices connected to your laptop and the docking station with a single power adapter (not included).

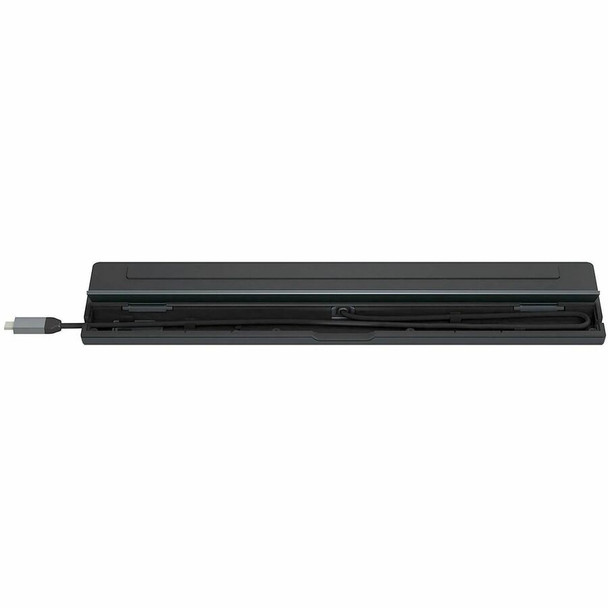

Cable Storage With Dual Openings

Keep your workspace organized with the double-sided cable storage compartment, giving you the flexibility to place the cable anyway you like.

Connect Your Devices

Features three SuperSpeed USB 5Gbps Type-A ports for your USB peripherals.Hardware
Audio Supported
Yes
Host Connector
USB-C Male
Network Interface
RJ45 (Gigabit Ethernet)
Ports
1 - USB-C Power Delivery 3.0
3 - USB^TM 3.0 Type-A
1 - 4K HDMI^TM
1 - 2K/1080p HDMI^TM
1 - SD^TM and microSD^TM memory card reader/writer
1 - RJ45 Gigabit Ethernet
1 - 3.5 mm combo audio jack
Power Source
Bus-powered
Video Output
2 - HDMI^TM FemalePerformance
Audio Channel
2.1 via HDMI^TM / 3.5 mm Aux
Compatible Networks
10/100/1000 Mbps
Displays Supported
2
Max Data Transfer Rate
5 Gbps
Max Display Refresh Rate
4K at 30 Hz
2K at 60 Hz
Max Display Resolution
Dual Displays:
3840 x 2160 and 2048 x 1152 / 1920 x 1080
Single Display:
3840 x 2160Power
Input Current
5A
Input Voltage
20V
Output Current
5A
Output Voltage
20V
Power Consumption
is less than or equal to 900 mA
Power Delivery
Up to 100W via USB-CPhysical Specifications
Cable Length
1.48 ft (45 cm)
Color
Grey and Black
Enclosure Type
Aluminum
Operating Humidity
< 85% non-condensing
Operating Temperature
32 to 118^oF (0 to 48^oC)
Storage Humidity
< 85% non-condensing
Storage Temperature
14 to 149^oF (-10 to 65^oC)Package Contents
1 - JCD542 USB-C Dual HDMI^TM Docking Station
1 - Quick Installation Guide (QIG)Item Dimension (L inchxW inchxH inch)
15 x 4 x 2

Weight
1.00lb

Warranty Information
2 Year

Package Contents:

• USB-C Dual HDMI Docking Station
• 1 x Quick Installation Guide (QIG)
