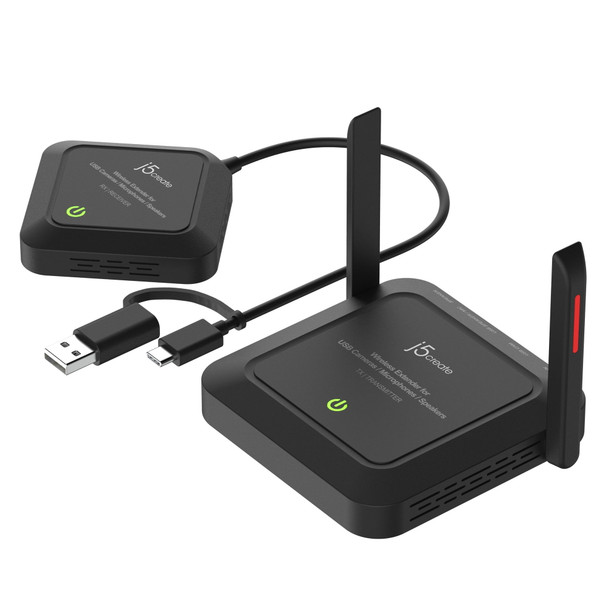

j5create Wireless Extender for USB Cameras / Microphones / Speakers (302157)

This item is brand-new, factory sealed.

Wireless Extender for USB Cameras / Microphones / Speakers

A Wireless Extender for USB Cameras helps eliminate cables for your USB camera and reduce visual clutter in your video conferencing, streaming, or broadcasting setup

Model: JVW120

The j5create Wireless Extender for USB Cameras / Microphones / Speakers turn your wired USB camera into a wireless one. With a wireless transmission range of up to 82 ft. (25m) users can extend the range of their wired USB camera without having to deal with tangled cables regardless of the room layout. In addition to transmitting both video and audio wirelessly this compact and lightweight camera extender works with Windows, macOS, and Chrome OS devices, making it a great addition to any meeting room, streaming setup, and other similar environments.


Create A Wireless Conference Easily

Converts a wired USB camera, microphone, or speaker into a wireless one

Enhanced the Field of View

Place the camera farther away for wide field of view. Ensure every parcipant is seen with clarity

The Perfect Mate For A High Resolution Camera

Supports resolution up to 1080p@60 and 4K@30 in H.264 format or 1080p@30 in MJPEG format

Up to 82 ft (25m) Wireless Transmission Distance

Supports 5 GHz frequency to ensures a stable connection and smooth video

Comes With A USB-C And USB Type-A Connector

Works with both your older and newer laptops

Plug And Play, No Driver Installation Required For Windows, macOS, and Chrome OS

Audio Switch For Enables Or Disables Audio Stream Transmission Quickly

Suitable For Conference, Personal Streaming, Online Learning, and other environments

Compatible with all j5create and other standard webcam modelsHardware
Audio ON/OFF Switch
RX/Receiver:
Located on the RX devices bottom side, the "Audio ON/OFF switch" quickly enables or disables audio
-Switch to ON: enables audio
-Switch to OFF: disables
Host Connector
RX/Receiver:
USB-C or USB Type-A port
Infared
N/A
Led Indicators
TX/Transmitter, RX/Receiver:
- Red: Power on
- Orange: Waiting to connect
Note: TX and RX are connected, but the USB^TM camera or USB^TM Speaker/Microphone are not connect to TX USB^TM port
- Orange flashing light: TX / RX pairing
- Green: TX / RX connected, and TX USB^TM camera is enabled.
Pair Button
- Pair Button
If TX are RX devices are close together but, the TX and RX devices LEDs are red and or if they disconnect, please try turning on "pairing mode".
To turn on paring mode find the Pair button located on the bottom side of TX and RX device, push and hold the TX and RX devices pairing button 5 seconds, the power LED will change orange and will blink for 1 minute. If TX and RX device are paired, the LED will turn green and will stop blinking.
Ports
TX/Transmitter:
1 - USB-C Power In
1 - USB^TM Type-A Female (Camera)
1 - USB^TM Type-A female (Speaker/Microphone)
1 - 3.5 mm Speaker Out
Power Source
TX Transmitter: 1 - DC 5V/3A Power Adapter RX/Receiver: 1 - Bus Power through USB-CPerformance
Audio Channel
2.1 CH stereo
Esd Protection
N/A
Infared Return Frequency
N/A
Ovp Protection
N/A
Rf Output Power
+15 dBm +/-1 dBm
Security - Encryption
128/256-bit AES based encryption WPA2 authentication protocol
Supported Resolution - Output
H.264:
2160p / 1080p / 720p / 480p / 240p at 30 FPS
1080p at 60 FPS
MJPEG:
1080p / 720p / 480p / 240p at 30 FPS
YUV:
1080p / 720p / 480p / 240pPhysical Specifications
Cable Length
Receiver (RX): 6.5 in. (16.5 cm)
Color
Black
Enclosure Type
Plastic
Operating Humidity
< 85% non-condensing
Operating Temperature
+32 to +104^oF (0 to +40^oC)
Storage Humidity
< 85% non-condensing
Storage Temperature
-4 to +122^oF (-20 to +50^oC)Wireless Protocols
Antenna Type
Transmitter (TX): External antenna x 2 Receiver (RX): Built-in antenna
Channel Width
80 MHz
Frequency
5 GHz Band I, Band IV, CE Only Band I
Range
Up to 82 ft. (25 m)
Standard
IEEE 802.11acPackage Contents
1 - JVW120 Wireless Extender for USB^TM Cameras / Microphones / Speakers set (1 x Transmitter and 1 x Receiver)
1 - DC 5V/3A Power Adapter
1 - Hook and loop fastener
1 - Quick Installation Guide (QIG)Item Dimension (L inchxW inchxH inch)
5 x 8 x 2

Weight
1.00lb

Warranty Information
2 Year
