ACP 302159 J5create Ac Jvaw75 Screencast 4k Wireless Display Hdmi Extender Retail

This item is brand-new, factory sealed.

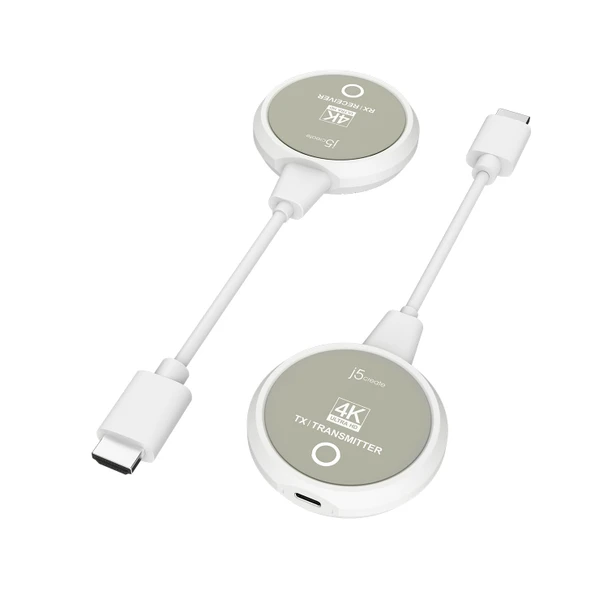

ScreenCast 4K Wireless Display HDMI Extender

macOS / Windows / Android / iPad Pro / Chrome OS Compatible

Model: JVAW75

The JVAW75 4K Wireless Display HDMI Extender comes with both a transmitter and receiver kit. With a receiver distance of up to 98.4 feet (30m) and minimal latency, it can deliver a 4K video and audio signal to an HDMI capable TV set, projector, or monitor.

Other HDMI sources, such as DVD players, Blu-ray players, PCs, notebooks and game consoles (ex. Sony PlayStation 4 / 5, Nintendo Switch) can be extended. The JVAW75 supports resolutions up to 4K and stereo digital audio through HDMI and is completely HDCP compliant so o you can watch your favorite streaming services.

Display 4K Content Wirelessly From Your Laptop

Enjoy a Crystal Clear Resolution Up to 4K and Lifelike Colors

Plug-and-Play, Cast Your Content in Seconds

Supports up to 4K resolution and works with popular streaming apps like

Built-in Dual Band (2.4 GHz / 5 GHz) Offers Smooth Wireless Streaming

Compatible with Miracast, AirPlay, and Google Chromecast

Cast content from your mobile device that lack an HDMI port such a smartphone or tablet

Suitable for laptops with HDMI Video Output

Compact Design, Great for Home, Office, School, or On-the-GoHardware
host connector
HDMI Male
infared
N/A
led indicators
HDMI Transmitter (TX):
-Solid White: Device is connected to the RX successfully and is able to be operated properly.
-Blinking (Slow): The device is ready and trying to connect to RX as Receiver is being connected up.
-Blinking (Fast): The device is processing to pair with RX.
-Light off: The device has malfunctioned, OR no power input.
HDMI Receiver (RX):
-Solid White: The device is power on and operating properly.
ports
N/A
power source
USB-C FemalePerformance
audio channel
2.1 via HDMI
esd protection
N/A
hdcp compliance
HDCP 1.4
hdmi compliance
HDMI v1.4
infared return frequency
N/A
ovp protection
N/A
rf output power
N/A
security - encryption
WPA2
supported resolution - output
3840 x 2160 at 30 Hz
1920 x 1080 at 60 Hz
1280 x 720 at 60 HzPhysical Specifications
cable length
HDMI Transmitter (TX): 6 in. (152.3 mm)
HDMI Receiver (RX): 6 in. (152.3 mm)
color
White/ Grey
enclosure type
Plastic
operating humidity
< 85% non-condensing
operating temperature
+14 to +104^oF (-10 to +40^oC)
storage humidity
< 85% non-condensing
storage temperature
-4 to +122^oF (-20 to +50^oC)Wireless Protocols
antenna type
Internal antenna
channel width
20 MHz, 40 MHz
frequency
2.4 GHz, 5 GHz
range
Up to 10 - 30 meters
Transmission range up to 98 ft /30m, if signal crosses walls, signal distance might be shortened to 32 ft /10 m
standard
IEEE 802.11acPackage Contents
1 JVAW75 4K Wireless Display HDMI Extender (1 x Transmitter and 1 x Receiver)
2 USB-C to USB Type-A power cable (Cable Length: 100 cm, Color: White)
1 HDMI extension cable (Cable Length: 60 cm, Color: White)
1 Quick Installation Guide (QIG)Item Dimension (L"xW"xH")
5 x 8 x 2

Weight
1 lb

Warranty Information
2 Year
