ACP

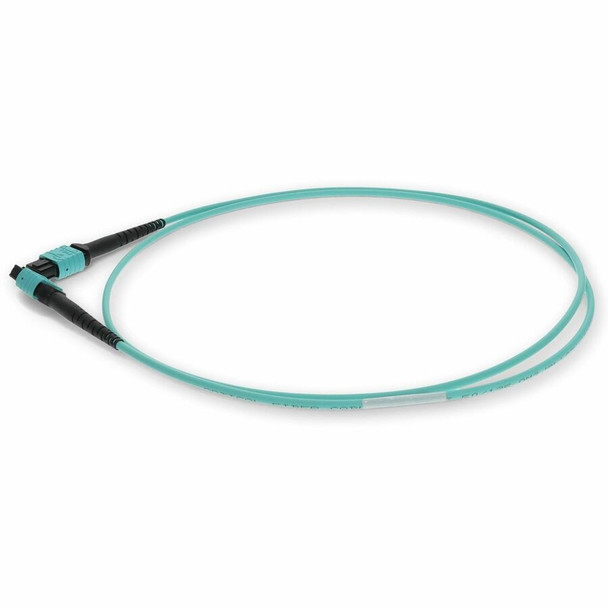

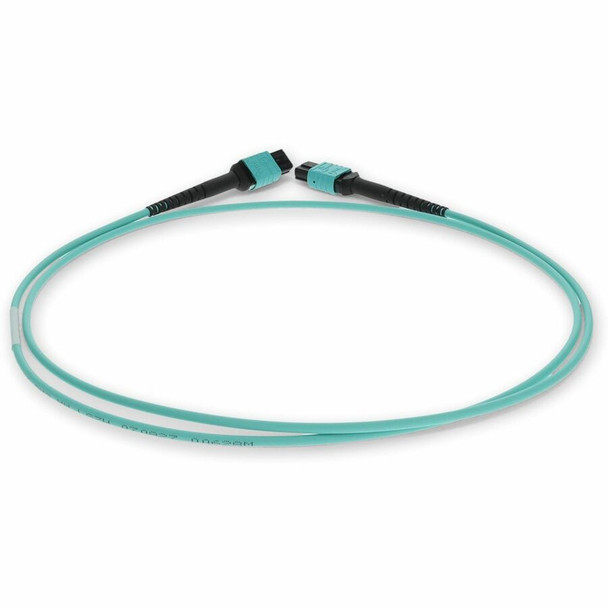

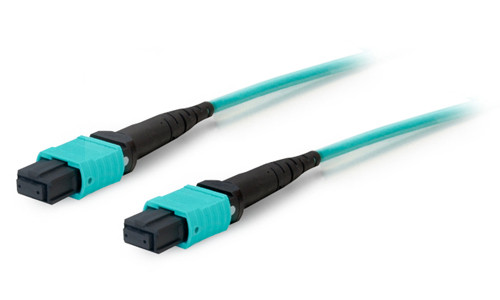

Acp Ep Memory ADD-MPOMPO-5M5OM3 5m Fiber Optic Mpo/mtp Patch Cabl 12 Fiber Om3 Aqua 50/125 Mtp Ofnp
- SKU:
- 20589184
- MPN:
- add-mpompo-5m5om3
- Availability:
- Out of stock
- Stock Update:
- 02/26/2024 12:04:08 PM PST
- Stock Update:
- 02/26/2024 12:04:08 PM PST
Description
This item is brand-new, factory sealed.
AddOn's 5M Laser Optomized Muliti-Mode fiber (LOMMF) OM3 MPO/MPO Aqua Patch Cable is an easy to install patch cable which delivers a higher port density due to its MTP/MPO connector. It allows you to pull just one cable with 12 fibers for one seemless, easy plug-in. MTP is commonly used for 40 Gigabit QSFP applications. AddOn's MTP makes it possible to run a single cable that automatically eliminates 12 fibers in one plug-in. The push-pull release design of our MTP makes it easy to engage and disengage, and in addition, its latch mechanism prevents the plug from catching when jumper cables are being routed. Each MTP fiber assembly consists of twelve laser-optimized, 40GB 50/125 multimode fibers under one PVC (OFNR-rated) jacket.
Features
UL
TAA Compliant:
No
Country of Origin:
China
Specs
| Physical Characteristics | |
| Weight (Approximate) | 0.40 lb |
| Product Color | Aqua |
| Jacket Material |
|
| Height | 0.6" |
| Color Family | Green |
| Width | 0.3" |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
| General Information | |
| Brand Name | AddOn |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Marketing Information | This is a 5m MPO (female) to MPO (female) 12-strand aqua crossover riser-rated fiber patch cable. An OM3 cable has a core size of 50 microns that supports 10 Gigabit Ethernet at lengths measuring up to 300 meters, and 40 Gigabit or 100 Gigabit Ethernet measuring up to 100 meters. This optical fiber, nonconductive, riser (OFNR) cable is best suited for use in interior fiber-optic applications. Our patch cables are 100% compliant for all of your networking needs. Our products are guaranteed by federal law to not affect or void OEM warranties. |
| Product Type | Network Cable |
| Product Name | 5m MPO/MPO Female/Female OM3 50/125 LOMM LSZH 12 Fiber Crossover Cable |
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-MPOMPO-5M5OM3 |
| Packaged Quantity | 1.0 |
| Technical Information | |
| Connector Gender on First End | Female |
| Cable Type | Fiber Optic |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Gender on Second End | Female |
| Shielding | No |
| Fiber Category | OM3 |
| Device Supported | Network Device |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Connector on Second End Details | 1 x MPO Network - Female |
| Connector Type on First End | MPO Network - Female |
| Connector Type on Second End | MPO Network - Female |
| Cable Configuration | Crossover |
| Cable Length | 16.40 ft |
| Jacket Type |
|
| Features |
|
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
Warranty Information
