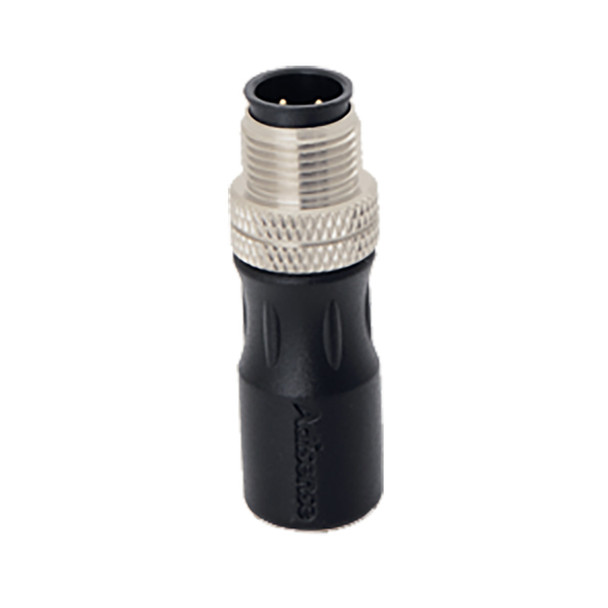

Actisense A2K-TER-M Nmea2000 Micro Terminator - Male
(No reviews yet)
Write a Review
- SKU:
- 21357556
- MPN:
- a2k-ter-m
- Availability:
- Usually ships the same or next business day. In stock at our FL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/27/2026 02:18:13 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $24.52 each 24.52 |
| Buy 3 - 9 | and pay only $22.86 each 22.86 |
| Buy 10 - 19 | and pay only $21.53 each 21.53 |
| Buy 20 - 39 | and pay only $20.79 each 20.79 |
| Buy 40 or above | and pay only $20.42 each 20.42 |
- Stock Update:
- 01/27/2026 02:18:13 AM PST
Description
This item is brand-new, factory sealed.
NMEA2000 Micro Terminator - Male
Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.
Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge
Technical Specifications:
Electrical
- Rated Voltage (power pair) - 60VDC
- Rated Current - 4A
- Internal Termination Resistors - 120 Ω ± 1% 500mW
Mechanical
- Male Contact - Brass, gold plated
- Contact Carrier - PA66 (30% Glass filled), black
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Screw Cap - Brass, nickel plated
- O-Ring Seal - Rubber, Black
- Housing - PVC, black
- Weight - 15g
Approvals and Certifications
- Protection - IP67 (when mated)
- Operating Temperature - -25°C to +70°C
- Storage Temperature - -40°C to +85°C
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
