Adaptec 244819 Cc 2302100-r Smarthba 2100-16i Retail

This item is brand-new, factory sealed.

Features:

Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers

Uniquely combines basic RAID functionality for up to 32 devices supporting RAID levels 0, 1, 10 and 5 in conjunction with full HBA functionality for up to 238 devices

16 internal native SAS/SATA ports in low-profile/ MD2 form factor

+1.7M 4K random read IOPS; 40% lower power than previous generations

28 nm SmartIOC 2100 SAS/ SATA protocol controller

Familiar GUI, CLI, and pre-boot tools ensures consistent performance and user experience across all products

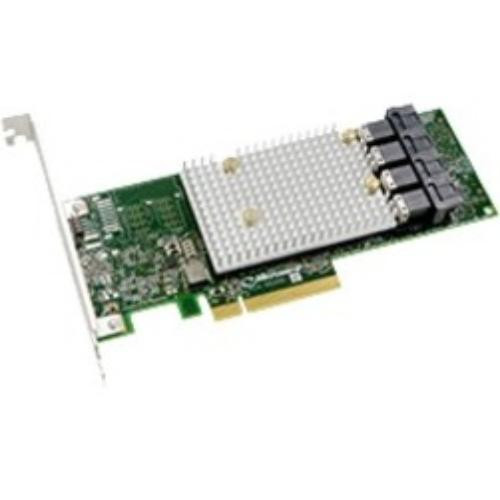

The 12 Gbps Adaptec SmartHBA 2100-16i Host Bus Adapter has 16 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor and uniquely combines the capabilities of a full-featured host bus adapter (HBA) with those of a basic RAID adapter using hardware RAID. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 2100 adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.7M IOPS without additional overhead or latency. The HBA 2100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions.

The HBA 2100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 2100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
Product Type
Host Bus Adapter Port Count
16 internal Interface
8-Lane PCIe Gen 3 RAID Level
0, 1, 10, 5 Form Factor
Low-profile, MD2 MTBF at 40^oC
2.73M hours Controller
12 Gbps SmartIOC 2100 Connectors
6 (x4) SFF-8643 Item Dimension (L"x W"x H")
15 x 10 x 2
Weight
3.00 LB
Warranty Information
3 Years
