Alogic
Alogic USB-C Dock triple display docking station with 100W power delivery DUPRMX3WW
- SKU:
- 19172045
- MPN:
- duprmx3-ww
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/09/2026 06:50:22 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 5 | and pay only $179.31 each 179.31 |
| Buy 6 or above | and pay only $175.64 each 175.64 |
- Stock Update:
- 02/09/2026 06:50:22 AM PST
Description
This item is brand-new, factory sealed.

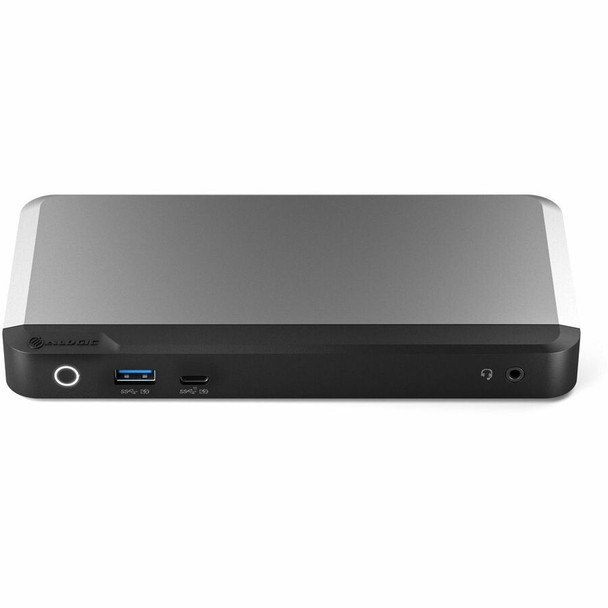

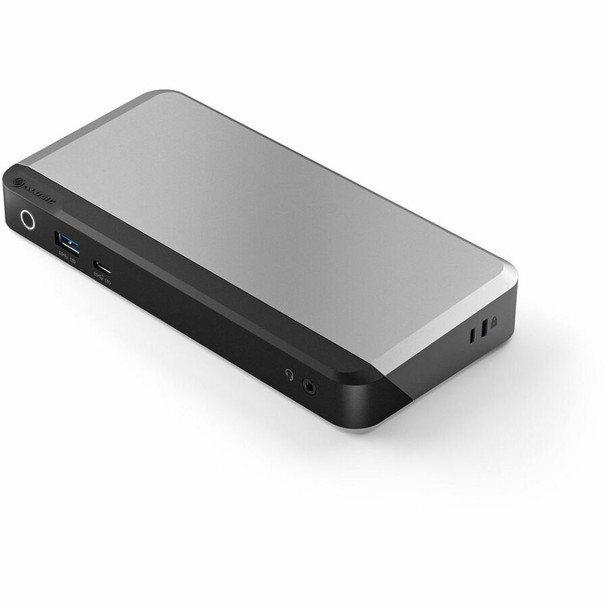

SIMPLIFIED CONNECTIVITY-The MX3 makes multi-display set ups simple. Featuring DP Alt Mode technology, it connects directly with up to three displays and multiple other accessories. No need to install drivers or software. Plug in and go.
SINGLE 5K DISPLAY WITH MAC-The MX3 is a powerful docking station for Mac users seeking to add a picture-perfect single display for their desk set up.
DUAL 4K DISPLAY WITH WINDOWS-Windows users can plug into the MX3 to run up to three ultra-polished external displays.

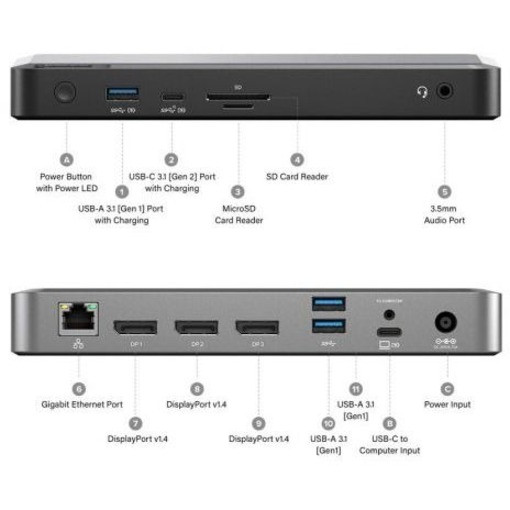

11 HIGH-PERFORMANCE PORTS- Port 1-USB-A 3.1 Gen 1 (5G) BC 1.2 & Apple Charging (Supports Smartphone charging).
Port 2- USB-C 3.1 Gen 2 (10G) BC 1.2 & Apple Charging (Supports Smartphone charging)
Port 3- Micro SD Card Reader (SD 4.0)
Port 4 -SD Card Reader (SD 4.0)
Port 5- 3.5mm TRRS Audio/Microphone Jack
Port 6- RJ45 Ethernet 1 Gbps
Port 7 -DisplayPort (DP1.4/DP++)
Port 8 -DisplayPort (DP1.4/DP++)
Part 9- DisplayPort (DP1.4/DP++)
Part 10- USB-A 3.1 Gen1 (5G)
Part 11- USB-A 3.1 Gen1 (5G)
Features
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Compatibility:
Compatible with all computers with a USB-C port.
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Brand Compatibility:
Microsoft
Apple
Country of Origin:
Taiwan
Specs
| Power Description | |
| Maximum Power Supply Wattage | 135 W |
| Physical Characteristics | |
| Weight (Approximate) | 1.18 lb |
| Product Color |
|
| Height | 1.04" |
| Color Family | Dual Color |
| Width | 7.48" |
| Depth | 3.54" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| USB Power Delivery | 100W |
| Number of USB Type-A Ports | 3 |
| USB Type-C Detail | 1 x USB-C 3.1Gen 2(10G) BC 1.2 and Apple Charging Support |
| Number of DisplayPort Outputs | 3 |
| Number of RJ-45 Ports | 1 |
| Number of USB 3.1 Type-C Ports | 1 |
| DisplayPort Version | 1.4 |
| USB Type-C | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of USB 3.1 Gen 1 Type-A Ports | 3 |
| Network (RJ-45) | Yes |
| Host Interface | USB Type C |
| DisplayPort | Yes |
| USB Type-A | Yes |
| General Information | |
| Brand Name | Alogic |
| Manufacturer Website Address | http://www.alogic.co |
| Marketing Information | SIMPLIFIED CONNECTIVITY- DP Alt. Mode Technology The MX3 makes multi-display set ups simple. Featuring DP Alt Mode technology, it connects directly with up to three displays and multiple other accessories. No need to install drivers or software. Plug in and go. SINGLE 5K DISPLAY WITH MAC The MX3 is a powerful docking station for Mac users seeking to add a dazzling, ultra-high resolution display for their desk set up. TRIPLE 4K DISPLAYS WITH WINDOWS Windows users can plug into the MX3 to run up to three ultra-high resolution external displays. |
| Product Type | Docking Station |
| Product Name | MX3 Docking Station |
| Manufacturer | Alogic |
| Manufacturer Part Number | DUPRMX3WW |
| Product Model | MX3 |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Number of Displays Supported | 3 |
| Screen Mode Supported |
|
| Supported Resolutions | 3840 x 2160 |
| Device Supported |
|
| Memory Card Reader | Yes |
| Memory Card Supported |
|
| Connectivity Technology | Wired |
