Description

This item is brand-new, factory sealed.

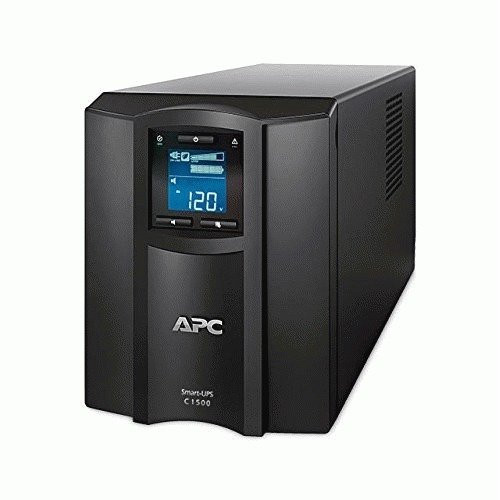

APC Smart-UPS C 1500VA LCD 120V with SmartConnect

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes: CD with software, Documentation CD, USB cable

Cold-start capable

Provides temporary battery power when the utility power is out.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency

Reduces utility costs, generates less heat.

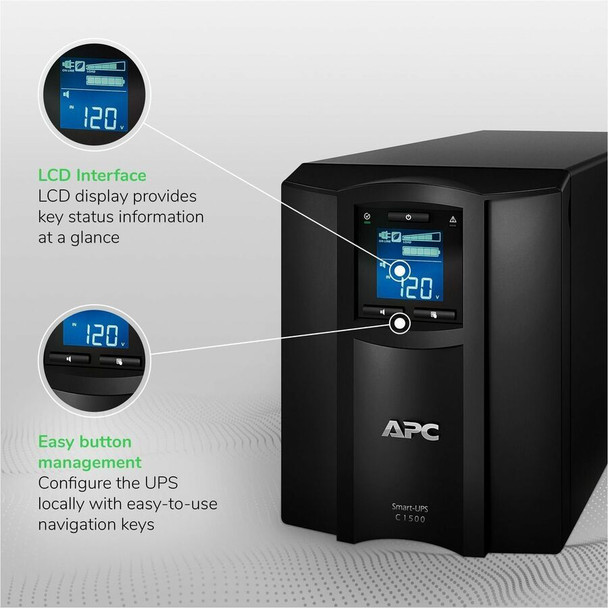

LCD Status Display

Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Output
Output power capacity
900Watts / 1.44kVA
Max Configurable Power (Watts)
900Watts / 1.44kVA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
110, 127
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(8) NEMA 5-15R (Battery Backup)
Transfer Time
6ms typical : 10ms maximum Input
Nominal Input Voltage
120V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA 5-15P
Cord Length
6ft (1,83meters)
Input voltage range for main operations
93 - 130V
Input voltage adjustable range for mains operation
85 - 136V
Number of Power Cords
1
Other Input Voltages
110, 127 Batteries and Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
CURK6X
Expected Battery Life (years)
3 - 5
RBC Quantity
1 Communications and Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
-- Surge Protection and Filtering
Surge energy rating
680Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical
Color
Black Environmental
Operating Temperature
32 - 104^oF (0 - 40^oC)
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 - 45^oC
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
225.0BTU/hr Conformance
Approvals
CSA, CSA C22.2 No. 107.1, FCC Part 15 Class A, ICES-003, UL 1778
Equipment protection policy
Lifetime : 150000 USD Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Proposition 65 Warning
Available in Documentation tab Item Dimension (L"xW"xH")
24 x 15 x 13
Weight
50.00 LB
Warranty Information
2 years repair or replace

Features

End of Life Manual Availability:
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN

Product Take Back Program:
Yes

EU RoHS Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940295&lang=en-us

Certifications & Standards:
cULus|ENERGY STAR V2.0 (USA)

REACH Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940295&lang=en-us

Environmentally Friendly:
Yes

Optimized Energy Efficiency:
Yes

REACH free of SVHC:
No

Environmental Compliance:
Restriction of Hazardous Substances (RoHS)

Energy Star URL:
https://www.energystar.gov/products/uninterruptible_power_supplies

Package Contents:

Smart-UPS SMC1500C 1500VA Desktop UPS

USB cable

California Proposition 65 Warning:
"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Energy Star:
Yes

RoHS Exemption Information:
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMC1500C_ROHS_DECLARATION&p_FileName=SMC1500CKIT_ROHS_DECLARATION_US.pdf

Environmental Profile Availability:
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN

Mercury Free:
Yes

For Country/Region:
United States

Specs

Power Description
Load Capacity (Watt)	900 W
Surge Energy Rating	680 J
Input Voltage Range	85 V AC - 136 V AC
Input Voltage	120 V
Output Voltage	120 V AC
Load Capacity (VA)	1440 VA
Waveform Type	Sine Wave
Physical Characteristics
Form Factor	Tower
Weight (Approximate)	44.31 lb
Product Color	Black
Height	8.6"
Color Family	Black
Mounting Location	Front
Width	6.7"
Depth	17.3"
Warranty
Directly Connected Equipment Guarantee	$150000 Lifetime
Additional Warranty Information	2 years repair or replace
Limited Warranty	2 Year
Battery Information
Backup/Run Time (Full Load)	7.80 Minute
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Typical Battery Recharge Time	3 Hour
General Information
Brand Name	APC by Schneider Electric
Manufacturer Website Address	http://www.schneider-electric.com
Marketing Information	This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. Connect to either monitoring software using the Port on the back of the device. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. This 900 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it's smart battery management maximizes performance. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, USB cable More from the Manufacturer
Product Type	Line-interactive UPS
Product Name	Smart-UPS SMC1500C 1500VA Desktop UPS
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMC1500C
Product Model	SMC1500C
Product Line	Smart-UPS
Technical Information
Receptacle Type	NEMA 5-15P
Receptacle Detail	8 x NEMA 5-15R
Plug/Connector Type	NEMA 5-15P
Cord Length	6 ft
Application/Usage	Server POS Terminal Router Switch Network Hub Network Device
Number of Battery & Surge Outlets	8
Transfer Time	10 ms
Management
Network Management	SmartConnect
