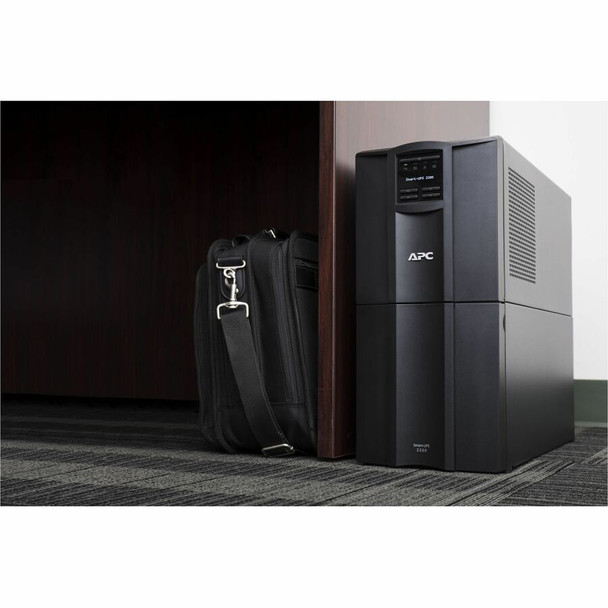

APC by Schneider Electric Smart-UPS SMT2200C 2.2KVA Tower UPS
(No reviews yet)
Write a Review
- SKU:
- 18054829
- MPN:
- smt2200c
- Availability:
- Usually ships in 2-3 business days. In stock at our CA, IL, SC, TX warehouses.
- Shipping:
- $263.16 (Fixed Shipping Cost)
- Stock Update:
- 02/07/2026 06:27:06 PM PST
- Stock Update:
- 02/07/2026 06:27:06 PM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: SMT2200C
- Output:
- Output Power Capacity: 1.92 KWatts / 1.92 kVA
- Max Configurable Power: 1.98 KWatts / 2.2 kVA
- Nominal Output Voltage: 120 V
- Output Voltage Distortion: Less than 5%
- Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
- Other Output Voltages:110, 127
- Topology:Line Interactive
- Waveform Type: Sine wave
- Output Connections: 2x NEMA 5-20R (Battery Backup); 8x NEMA 5-15R (Battery Backup)
- Transfer Time:6ms typical, 10ms maximum
- Input:
- Nominal Input Voltage: 120 V
- Input Frequency: 50/60 Hz +/-3Hz (auto sensing)
- Input Connections: NEMA 5-20P
- Cord Length: 6 feet / 1.83 meters
- Input voltage range for main operations: 82 ~ 144 V
- Input voltage adjustable range for mains operation: 75 ~ 154 V
- Number of Power Cords: 1
- Other Input Voltages:110, 127
- Batteries & Runtime:
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
- Typical recharge time: 3 hours
- Expected Battery Life (years): 3 ~ 5
- RBC Quantity: 1
- Communications & Management:
- Interface Ports: RJ-45 Serial , SmartSlot , USB
- Control panel: Multi-function LCD status and control console
- Audible Alarm: Alarm when on battery; distinctive low battery alarm; configurable delays
- Emergency Power Off (EPO): Yes
- Available SmartSlot Interface Quantity:1
- Surge Protection and Filtering:
- Surge energy rating: 530 Joules
- Filtering: Full time multi-pole noise filtering; 0.3% IEEE surge let-through; zero clamping response time; meets UL 1449
- Audible noise at 1 meter from surface of unit: 45 dBA
- Online Thermal Dissipation: 275 BTU/hr
- Approvals: CSA, ENERGY STAR V1.1 (USA), FCC Part 15 Class A, UL 1778
- Color: Black
- Dimensions (WxDxH): 7.70 x 21.42 x 17.00 inch / 196.0 x 544.0 x 432.0 mm
- Weight: 112.00 lbs / 50.91 kg
Features
End of Life Manual Availability:
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
Yes
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940372&lang=en-us
cULus|ENERGY STAR V2.0 (USA)
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940372&lang=en-us
Yes
Yes
Powerchute Serial Edition
No
Restriction of Hazardous Substances (RoHS)
https://www.energystar.gov/products/uninterruptible_power_supplies
Smart-UPS SMT2200C 2.2KVA Tower UPS Smart UPS signalling RS-232 cable USB cable
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Yes
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT2200C_ROHS_DECLARATION&p_FileName=SMT2200CKIT_ROHS_DECLARATION_US.pdf
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
Yes
United States
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
Product Take Back Program:
Yes
EU RoHS Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940372&lang=en-us
Certifications & Standards:
cULus|ENERGY STAR V2.0 (USA)
REACH Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940372&lang=en-us
Environmentally Friendly:
Yes
Optimized Energy Efficiency:
Yes
Software Included:
Powerchute Serial Edition
REACH free of SVHC:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Energy Star URL:
https://www.energystar.gov/products/uninterruptible_power_supplies
Package Contents:
California Proposition 65 Warning:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Energy Star:
Yes
RoHS Exemption Information:
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT2200C_ROHS_DECLARATION&p_FileName=SMT2200CKIT_ROHS_DECLARATION_US.pdf
Environmental Profile Availability:
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
Mercury Free:
Yes
For Country/Region:
United States
Specs
| Power Description | |
| Load Capacity (Watt) | 1980 W |
| Surge Energy Rating | 530 J |
| Input Voltage Range | 75 V AC - 154 V AC |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 1920 VA |
| Waveform Type | Sine Wave |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 112.24 lb |
| Product Color | Black |
| Height | 17.1" |
| Color Family | Black |
| Mounting Location | Front |
| Width | 7.7" |
| Depth | 21.4" |
| Rack Height | 2U |
| Warranty | |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 10.10 Minute |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Brand Name | APC by Schneider Electric |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 8 NEMA 5-15R and 2 NEMA 5-20R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | Smart-UPS SMT2200C 2.2KVA Tower UPS |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT2200C |
| Product Model | SMT2200C |
| Product Line | Smart-UPS |
| Technical Information | |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail |
|
| Plug/Connector Type | NEMA 5-20P |
| Cord Length | 6 ft |
| Application/Usage |
|
| Number of Battery & Surge Outlets | 10 |
| Transfer Time | 10 ms |
| Management | |
| Network Management | SmartConnect |
