APC

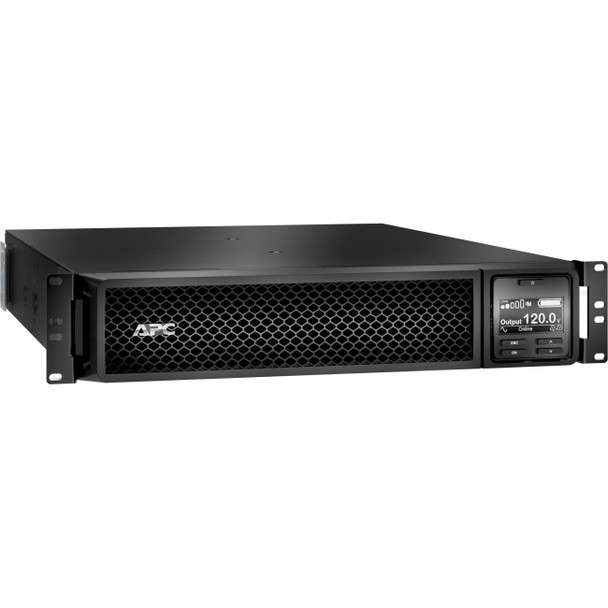

APC SRT1500RMXLANC Smart-UPS SRT 1500VA Rack-Mount Online UPS with Network Card
- SKU:
- 18054798
- MPN:
- srt1500rmxla-nc
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/01/2026 05:08:52 AM PST
- Stock Update:
- 02/01/2026 05:08:52 AM PST
Description
This item is brand-new, factory sealed.
High density, double-conversion on-line power protection with scalable runtime
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Package Contents:
- Smart-UPS SRT 1500VA RM 120V Network Card
- CD with Software
- Comms Cable
- Documentation CD
- Installation Guide
- Network Management Card
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Temperature Probe
- USB Cable
- Warranty Card
Features
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
Product Take Back Program:
Yes
EU RoHS Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940526&lang=en-us
Certifications & Standards:
ENERGY STAR V2.0 (USA)
REACH Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940526&lang=en-us
Environmentally Friendly:
Yes
REACH free of SVHC:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Energy Star URL:
https://www.energystar.gov/products/uninterruptible_power_supplies
WEEE Statement:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Package Contents:
Energy Star:
Yes
RoHS Exemption Information:
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT1500RMXLA-NC_ROHS_DECLARATION&p_FileName=SRT1500RMXLA-NCKIT_ROHS_DECLARATION_US.pdf
Environmental Profile Availability:
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017EN
Mercury Free:
Yes
For Country/Region:
United States
Specs
| Power Description | |
| Load Capacity (Watt) | 1350 W |
| Surge Energy Rating | 432 J |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 1500 VA |
| Waveform Type | Sine Wave |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 48.50 lb |
| Product Color | Black |
| Height | 3.3" |
| Color Family | Black |
| Mounting Location | Front |
| Width | 17" |
| Mounting Preference | No Preference |
| Depth | 20" |
| Rack Height | 2U |
| Warranty | |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Brand Name | APC by Schneider Electric |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. More from the Manufacturer |
| Product Type | Double Conversion Online UPS |
| Product Name | Smart-UPS SRT 1500VA RM 120V Network Card |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT1500RMXLA-NC |
| Product Line | Smart-UPS SRT |
| Technical Information | |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5.91 ft |
| Number of Battery & Surge Outlets | 6 |
