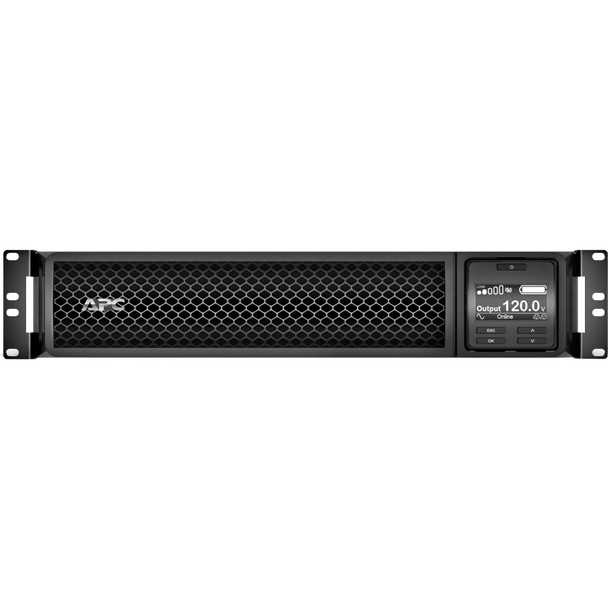

APC SRT2200RMXLA Smart-UPS SRT 2200VA Rack-Mount Online UPS
(No reviews yet)
Write a Review
- SKU:
- 18054739
- MPN:
- srt2200rmxla
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/01/2026 10:08:49 AM PST
- Stock Update:
- 02/01/2026 10:08:49 AM PST
Description
This item is brand-new, factory sealed.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.Package Contents:
- Smart-UPS SRT 2200VA RM 120V
- CD with software
- Documentation CD
- Installation guide
- Rack Mounting brackets
- Rack mounting hardware
- Rack Mounting support rails
- USB cable
- Warranty card
Features
End of Life Manual Availability:
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612036_EN
Yes
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563181&lang=en-us
ENERGY STAR V2.0 (USA)
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563181&lang=en-us
Yes
Powerchute Serial Edition
No
Restriction of Hazardous Substances (RoHS)
https://www.energystar.gov/products/uninterruptible_power_supplies
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Smart-UPS SRT 2200VA RM 120V CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails USB cable Warranty card
Yes
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200RMXLA_ROHS_DECLARATION&p_FileName=SRT2200RMXLAKIT_ROHS_DECLARATION_US.pdf
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612036_EN
ENERGY STAR 2.0
Yes
United States
Philippines
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612036_EN
Product Take Back Program:
Yes
EU RoHS Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563181&lang=en-us
Certifications & Standards:
ENERGY STAR V2.0 (USA)
REACH Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563181&lang=en-us
Environmentally Friendly:
Yes
Software Included:
Powerchute Serial Edition
REACH free of SVHC:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Energy Star URL:
https://www.energystar.gov/products/uninterruptible_power_supplies
WEEE Statement:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Package Contents:
Energy Star:
Yes
RoHS Exemption Information:
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200RMXLA_ROHS_DECLARATION&p_FileName=SRT2200RMXLAKIT_ROHS_DECLARATION_US.pdf
Environmental Profile Availability:
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612036_EN
Energy Efficiency Certification:
ENERGY STAR 2.0
Mercury Free:
Yes
For Country/Region:
United States
Country of Origin:
Philippines
Specs
| Power Description | |
| Load Capacity (Watt) | 1800 W |
| Input Frequency | 70 Hz |
| Surge Energy Rating | 340 J |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 2200 VA |
| Waveform Type | Sine Wave |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 55.01 lb |
| Product Color | Black |
| Height | 3.3" |
| Color Family | Black |
| Mounting Location | Front |
| Width | 17" |
| Mounting Preference | Lower |
| Depth | 23" |
| Rack Height | 2U |
| Warranty | |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | LCD Display |
| Interfaces/Ports | |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Energy | 1101.6 kJ |
| Battery Life | 5 Year |
| DC System Voltage | 72 V DC |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Brand Name | APC by Schneider Electric |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. More from the Manufacturer |
| Product Type | Double Conversion Online UPS |
| Product Name | Smart-UPS SRT 2200VA RM 120V |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT2200RMXLA |
| Product Line | Smart-UPS |
| Technical Information | |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-20P |
| Cord Length | 5.91 ft |
| Application/Usage |
|
| Number of Battery & Surge Outlets | 7 |
| Management | |
| Network Management | SmartSlot |
| Environmental Conditions | |
| Thermal Dissipation | 156.79 W |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 50000 ft |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 122°F (50°C) |
| Maximum Operating Elevation | 10000 ft |
