Apevia Corporation
Apevia TFX-PFC500W Power Supply
- SKU:
- 20722067
- MPN:
- tfx-pfc500w
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/04/2025 10:44:21 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $65.05 each 65.05 |
| Buy 3 | and pay only $60.12 each 60.12 |
| Buy 4 - 6 | and pay only $58.79 each 58.79 |
| Buy 7 or above | and pay only $57.12 each 57.12 |
- Stock Update:
- 12/04/2025 10:44:21 PM PST
Description
This item is brand-new, factory sealed.

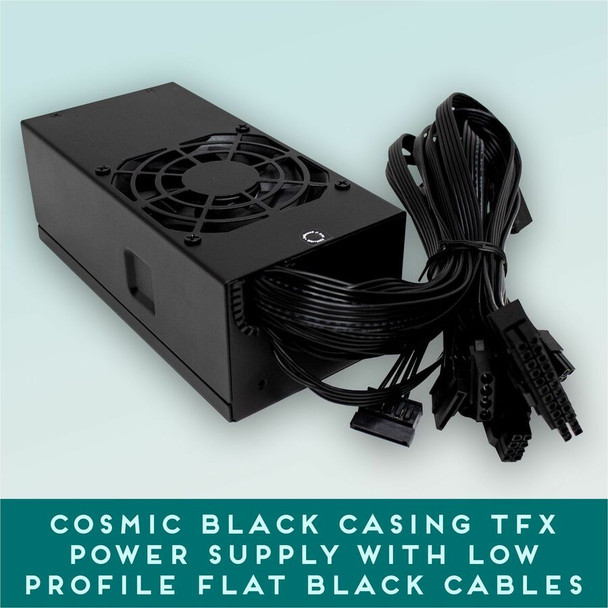

Apevia TFX-PFC500W TFX 500W Fixed Cables, Full Range Active PFC Computer Power Supply- APEVIA TFX-PFC500W Standard 500W TFX Form Factor ATX Power Supply. Full Range Active PFC 90-264V. Maximum Power: 500W.
- Connectors: 1 x 20+4pin Main Power, 1 x 8pin 12V(P4+4), 2x 6+2 PCIE, 3 x SATA, 3 x 4pin Molex
- Cooling: Forced Air Ventilation by 1 x 80mm Fan. Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP)
- Dimension: 175.26mm x 83.82mm x 63.5mm (6.9" x 3.3" x 2.5") - L x W x H
- Output: +3.3V@12A, +5V@14A, +12V@33A, -12V@0.3A, +5Vsb@2.5A
- IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
- IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.
- IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector
- Product Dimensions: 6.9 x 3.3 x 2.5 inches
- Item Weight: 1.8 pounds
- Manufacturer: Apevia Corp
Specs
| Power Description | |
| Number of +12V Rails | 1 |
| Output Power | 500 W |
| Input Voltage |
|
| Output Voltage Detail |
|
| Output Voltage |
|
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 2.10 lb |
| Product Color | Black |
| Height | 2.5" |
| Color Family | Black |
| Width | 3.3" |
| Interfaces/Ports | |
| Number of (6+2 pin) PCI Express Power Connectors | 2 |
| Number of 4-pin Molex Power Connectors | 3 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Number of SATA Power Connectors | 3 |
| PCI Express Connector | Yes |
| General Information | |
| Brand Name | Apevia |
| Package Type | Retail |
| Manufacturer Website Address | http://www.apevia.com |
| Marketing Information | The TFX-PFC500W power supply is a full range active PFC standard Flex-ATX unit that will fit in most small TFX form-factor cases. Has enough power output and connectors to run systems up to 500 watts, being used for versatile compact computing applications. APEVIA TFX-PFC500W Standard 500W TFX Form Factor ATX Power Supply. Full Range Active PFC 90-264V. Maximum Power: 500W. Output: +3.3V@12A, +5V@12A, +12V@28A, -12V@0.3A, +5Vsb@2.5A High stability with 5% tolerance of 5V, 3.3V & 12V output High quality components and housing Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP) Cooling: Forced Air Ventilation by 1 x 80mm Fan Power cord Retail box 1 x 20 + 4 pin main connector can be used for 20 pin or 24 pin 1 x ATX12V P4+4pin connector can be used as 12V 8pin or 4pin (Removable by pushing out one of the 4pins) 2x 6+2 PCIE graphics card connector can be used as an 8pin or 6pin (Removable by pushing out the 2pin) 3 x SATA connector 3 x 4 pin peripheral connector IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on. |
| Product Type | Power Supply |
| Product Name | TFX-PFC500W Power Supply |
| Manufacturer | Apevia Corporation |
| Manufacturer Part Number | TFX-PFC500W |
| Product Model | TFX-PFC500W |
| Technical Information | |
| Fan Diameter | 80 mm |
| Specification Compliance | ATX12V |
| Number of Fans | 1 |
| Protection Type |
|
| Features | Compact |
| Power Factor Correction (PFC) | Active |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
