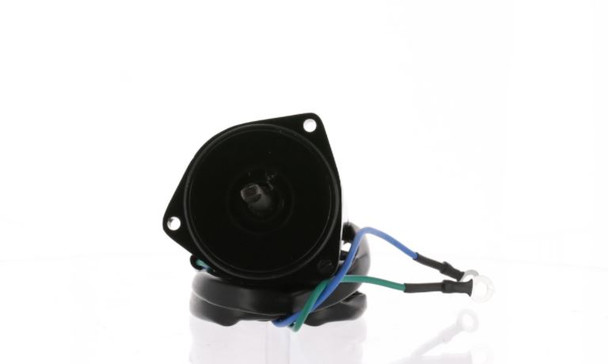

Arco 6259 Tilt Trim Motor for Yamaha 40“60 HP Outboards
- SKU:
- 18598933
- MPN:
- 6259
- Availability:
- Usually ships the same or next business day. In stock at our GA, MI, TX, WA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/06/2026 06:18:14 PM PST
- Stock Update:
- 03/06/2026 06:18:14 PM PST
Description
This item is brand-new, factory sealed.
ARCO 6259 Tilt Trim Motor for Yamaha 50 HP 4-Stroke (2001-2004), 60 HP 4-Stroke (2002-2004), 40 HP 2-Stroke (2001-2006), 50 HP 2-Stroke (2003-2009) TLR- Epoxy powder coated for maximum corrosion protection
- Motor shafts induction case hardened at bearing surfaces for superior wear resistance
- All armatures tested to withstand 50 times operation voltage (12V)
- All motors performance tested at 5 different load levels
- All motors must meet or exceed OEM performance before being boxed
- Manufacturer: ARCO STARTING & CHARGING
- Brand: Arco Starting & Charging
- Model: 6259
- Item Weight: 10 pounds
- Item model number: 6259
- Is Discontinued By Manufacturer: No
- Manufacturer Part Number: 6259
The ARCO 6259 Tilt Trim Motor fits Yamaha 50 HP 4-Stroke (2001-2004), 60 HP 4-Stroke (2002-2004), 40 HP 2-Stroke (2001-2006), 50 HP 2-Stroke (2003-2009) TLR. 2-wire connection, 3-bolt mount. Includes O-ring, and ring terminals. It replaces the following part numbers: Yamaha CS3-43880-00, Yamaha 62Y-43880-01, Yamaha 62Y-43880-02, Yamaha 69W-43880-00, Yamaha 69W-43880-01, Sierra 18-6811, and Sierra 18-18409. Epoxy powder coated for maximum corrosion protection. Motor shafts induction case hardened at bearing surfaces for superior wear resistance. All armatures tested to withstand 50 times operation voltage (12V). All motors performance tested at 5 different load levels. All motors must meet or exceed OEM performance before being boxed.
