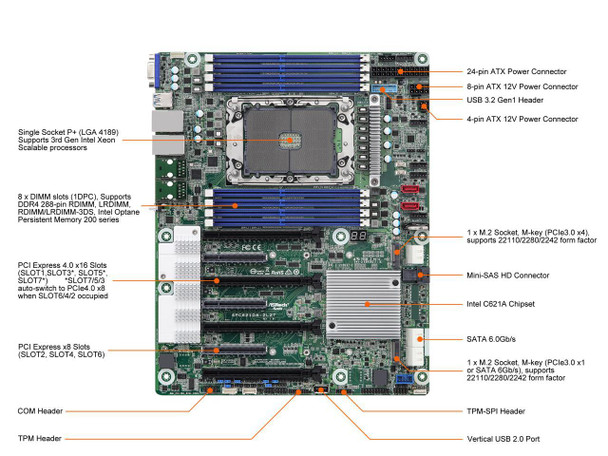

ASRock SPC621D8 ATX Motherboard for Intel Xeon Scalable

This item is brand-new, factory sealed.

ATX (12" x 9.6")

Supports 3rd Gen Intel Xeon Scalable Processors

8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel Optane Persistent Memory

4 PCIe4.0 x16, 3 PCIe4.0 x8

Supports 1 M.2 (PCIe3.0 x4), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)

13 SATA 6Gb/s (including 1 port from M.2)

2 RJ45 (1GbE) by Intel i210

Remote management (IPMI)Physical Status
Form Factor
ATX
Dimensions
12inch x 9.6inchProcessor System
CPU
Supports 3rd Gen Intel Xeon Scalable processors
Socket
Single Socket P+ (LGA 4189)
Chipset
Intel C621ASystem Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel Optane^TM Persistent Memory 200 series
Max. Capacity per DIMM
RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB
DIMM Frequency
max. 3200MHz
Voltage
1.2VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe4.0 x16^Note
SLOT5: PCIe4.0 x16^Note
SLOT3: PCIe4.0 x16^Note
SLOT1: PCIe4.0 x16

Note: SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied
PCIe x 8
SLOT6: PCIe4.0 x8
SLOT4: PCIe4.0 x8
SLOT2: PCIe4.0 x8Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe3.0 x4), supports 22110/2280/2242 form factor
1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factorSATA/SAS Storage
PCH Built-in Storage
Intel C621A (13 SATA 6Gb/s, RAID 0/1/5/10):
1 Mini-SAS HD, 6 SATA 7-pin, 2 SATA DOM, 1 M.2Ethernet
Additional GbE Controller
Intel i210: 2 RJ45 (1GbE)Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLANGraphics
Controller
ASPEED AST2500
VRAM

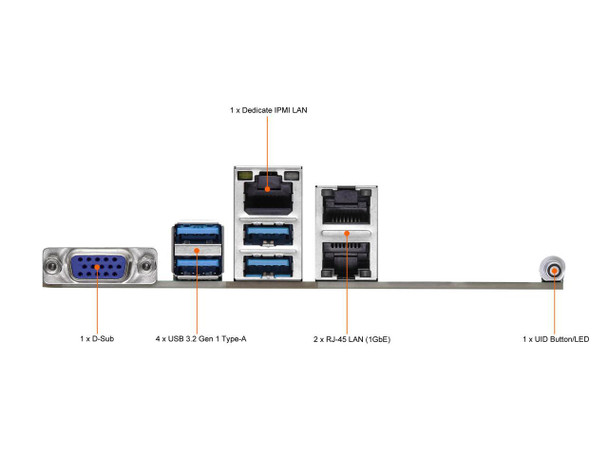

DDR4 16MBRear I/O
UID Button/LED
1
VGA Port
1 DB15
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (1GbE)
Dedicate LAN
1 dedicated IPMIInternal Connector/Headers
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1
Video output
1
Speaker Header
1
Buzzer
1
Fan Header
5 (6-pin)
Thermal Sensor Header
1
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
VROC header
1
SGPIO Header
1
SMBus header
1
PMB header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header
1 (9-pin, 2 USB2.0)
Type A USB 2.0 Port
1 (Type-A, 1 USB2.0)
NMI Header
1
Power Connector
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power)
ME/SPS Recovery
1
NC-SI
1LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
5System BIOS
BIOS Type
256Mb SPI Flash ROM
BIOS Features
AMI UEFI BIOSHardware Monitor
Temperature
CPU, PCH, MB, Card side Temperature Sensing
Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage
+12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3.3VSB, 5VSBEnvironment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
14 x 12 x 3

Weight
4.00 lb

Warranty Information
36M
