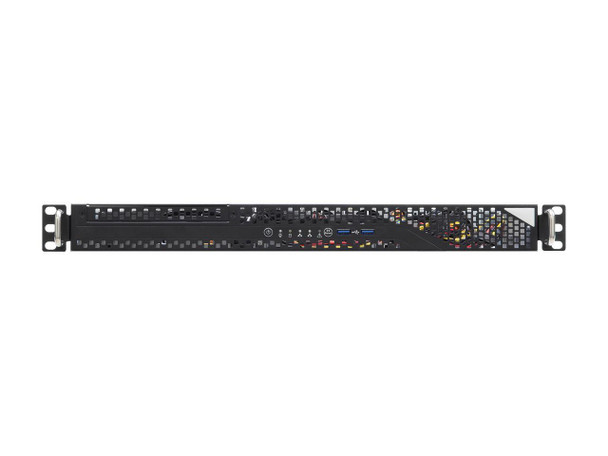

ASRock 1U2LWX570 1U2LW-X570 Rackmount Server Barebone AMD Ryzen 5000

This item is brand-new, factory sealed.

1U Rackmount with 315W PSU

supports AMD Ryzen 5000 Series Desktop Processors

4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each

2 fixed 3.5" drive bays

2 M.2 (PCIe4.0 x4)

1 FHHL PCIe4.0 x16

2 RJ45 (1GbE) by Intel i210

Remote management (IPMI) System
Form Factor
1U Rackmount
Support MB
X570D4U Front Panel
Buttons
Power Switch, System Reset
LEDs
Power Status, HDD, LAN Activity LEDs
I/O Ports
2 Type-A (USB 3.2 Gen1) External Drive Bay / Storage
Front Side Drive Bay
1 Slim ODD
Internal Side
2 fixed 3.5" SATA drive bays or 1 fixed 3.5" and 1 fixed 2.5" SATA drive bays
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 22110/2280/2260/2242 (CPU)
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 2280/2260/2242 (FCH)
Note: Supports PCIe3.0 when using AMD Ryzen^TM 4000 and 3000 G-Series Desktop Processors with Radeon^TM Graphics Power Supply
Type
Single PSU Output Watts
315W Efficiency
80-PLUS Gold AC Input
100-240V, 50-60Hz System Fan
Fan
3 PWM Easy-swap 40x28 mm fans Processor System
CPU
Supports:
AMD Ryzen^TM 5000 and 3000 Series Desktop Processors
AMD Ryzen^TM 4000 and 3000 G-Series Desktop Processors with Radeon^TM Graphics
AMD Ryzen^TM PRO 5000, 4000 and 3000 Series Desktop Processors
Socket
AM4 PGA 1331
Chipset
AMD X570 System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC) Supported Type
Supports DDR4 288-pin ECC/non-ECC UDIMM
Note: For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies. Max. Capacity per DIMM
up to 32GB Max. DIMM Frequency
up to 3200 MHz
Note: AMD Ryzen^TM 3000 G-Series Desktop Processors with Radeon^TM Graphics support up to 2666 MHz Voltage
1.2V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
Supports 1 FHHL PCIe4.0 x16 via RB1UX16_G4
Note: Supports PCIe3.0 x8 when using AMD Ryzen^TM 3000 G-Series Desktop Processors with Radeon^TM Graphics
Note: Supports PCIe3.0 x16 when using AMD Ryzen^TM 4000 G-Series Desktop Processors with Radeon^TM Graphics Server Management
BMC Controller
ASPEED AST2500 IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN Graphics
Controller
ASPEED AST2500:
1 DB15 (VGA)
AMD Ryzen Desktop Processors with Radeon Graphics:
1 HDMI
VRAM
DDR4 16MB Rear I/O
UID Button/LED
1 UID w/ LED VGA Port
1 D-Sub
