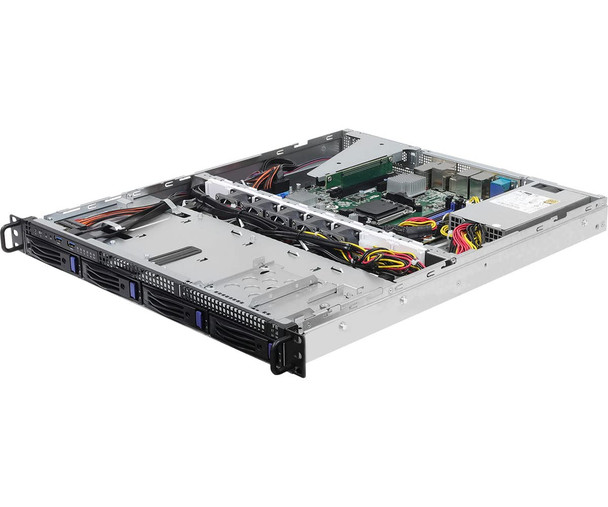

Asrock 1U4LWB650/2L2T RPSU Server Rack 1U4LWB650/2L2T RPSU

This item is brand-new, factory sealed.

1U4LW-B650/2L2T RPSU

1U Rackmount with 450W Redundant PSU (1+1)

Single Socket AM5 (LGA 1718), supports AMD Ryzen 7000 series processors

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM

4 hot-swap 3.5" SATA drive bays

1 FH PCIe4.0 x16

Supports 1 M.2 (PCIe5.0 x4)

2 RJ45 (10GbE) by Broadcom BCM57416

2 RJ45 (1GbE) by Intel i210

1 HDMI, 1 DisplayPort

Remote Management (IPMI)System
Form Factor
1U Rackmount
Support MB
B650D4U-2L2T/BCM

Front Panel
Buttons
Power w/ LED, UID w/LED, System reset
LEDs
LANs, HDD activity, System health
I/O Ports
2 Type-A (USB3.2 Gen1)

External Drive Bay / Storage
Front Side Drive Bay
4 Hot-swap 3.5" SATA drive bays
Internal Side
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor (CPU)

Power Supply
Type
1+1 Redundant PSU
Output Watts
450W
AC Input
100-240V, 50-60Hz

System Fan
Fan
5 PWM Hot-swap 40x28 mm fans

Processor System
CPU
Supports AMD Ryzen 7000 series Processors
Socket
Single Socket AM5 (LGA 1718)
Thermal Design Power
Up to 170W (Based on Cinebench R23 tool to meet AMD criteria)
Chipset
AMD B650

System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
5200 MHz (1DPC)
3600 MHz (2DPC)
Voltage
1.1V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
Rear: 1 FH PCIe4.0 x16 via RB1UX16 G4

Ethernet
Additional GbE Controller
Broadcom BCM57416: 2 RJ45 (10GbE)
Intel i210: 2 RJ45 (1GbE)

Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN

Graphics
Controller
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort

Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMI

System BIOS
BIOS Type
AMI UEFI BIOS, 256Mb (32MB) SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5

Hardware Monitor
Temperature
CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot
Fan
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage
VOLT 3VSB, VOLT 5VSB, VOLT P0 VCORE, VOLT P0 VSOC, VOLT VMEM, VOLT VMISC, VOLT 1.8V PT21, VOLT VSUS10, VOLT VDD10, VOLT V10 PHY DIG, VOLT VDD 1P8, VOLT MD VDDO, VOLT BAT, VOLT 3V, VOLT 5V, VOLT 12V

Environment
Temperature
Operation temperature: 10^oC - 35^oC
Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% (Non condensing)Item Dimension (L inchxW inchxH inch)
32 x 26 x 10

Weight
60 lbs

Warranty Information
3 Years
