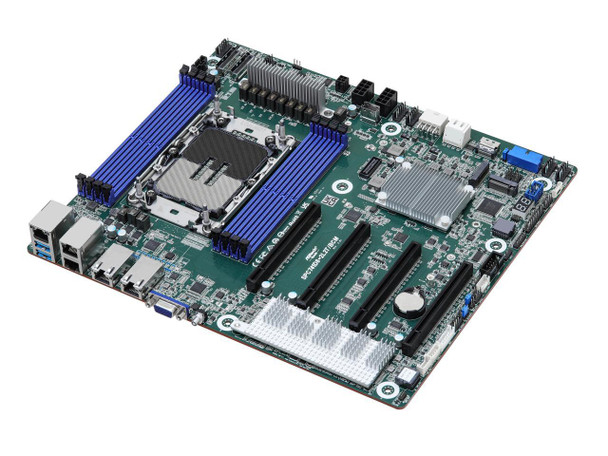

Asrock SPC741D82L2T/BCM Motherboard SPC741D82L2T/BCM

This item is brand-new, factory sealed.

SPC741D8-2L2T/BCM

CEB (12'' x 10.5'')

Supports 4th Gen Intel Xeon Scalable Processors

8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS

4 PCIe5.0 / CXL1.1 x16

1 MCIO (PCIe3.0 x4 or 4 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)

2 M.2 slots (PCIe3.0 x4 or SATA 6Gb/s)

Up to 12 SATA 6Gb/s

2 RJ45 (10GbE) by Broadcom BCM57416

2 RJ45 (1GbE) by Intel i210

Remote Management (IPMI)Physical Status
Form Factor
CEB Processor System
CPU
Supports 4th Gen Intel Xeon Scalable Processors
Socket
Single Socket E (LGA 4677)
Thermal Design Power
350W
Chipset
Intel C741 System Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM
RDIMM: 64GB
RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
Max. DIMM Frequency
4800 MT/s
Voltage
1.1V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe5.0 / CXL1.1 x16 (CPU)
SLOT5: PCIe5.0 / CXL1.1 x16 (CPU)
SLOT3: PCIe5.0 / CXL1.1 x16 (CPU)
SLOT1: PCIe5.0 / CXL1.1 x16 (CPU) Other PCIe Expansion Connectors
M.2 slot
1 M-key M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor (PCH)
1 M-key M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor (PCH)
Others
2 MCIO (PCIe5.0 x8) (CPU)
1 MCIO (PCIe3.0 x4 or SATA 6Gb/s) (PCH) SATA/SAS Storage
PCH Built-in Storage
Intel C741 (Up to 12 SATA 6Gb/s, support RAID 0/1/5/10):
1 MCIO 4i, 8 SATA via optional M2U2-HD-4G M.2 device Ethernet
Additional GbE Controller
2 RJ45 (10GbE) by Broadcom BCM57416
2 RJ45 (1GbE) by Intel i210 Server Management
BMC Controller
ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F Graphics
Controller
ASPEED AST2600:
1 DB15 (VGA) Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI Internal Connector/Headers
Power Connector
1 Micro-Fit (4-pin, ATX PSU signal), 3 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1 (9-pin)
Speaker Header
1 (4-pin)
Fan Header
6 (6-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
VROC header
1
SGPIO Header
2
HSBP
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Front Lan LED Connector
1
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header
1 (9-pin, 2 USB2.0)
NMI Header
1 LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
6
BMC heartbeat LED
1 System BIOS
BIOS Type
AMI 256Mb SPI Flash ROM
BIOS Features
Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash Hardware Monitor
Temperature
CPU, MB, Card side, TR1 Temperature sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
CPU1_PVCCIN, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, +12V, +12VSB Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% (Non condensing)Item Dimension (L inchxW inchxH inch)
14 x 12 x 3

Weight
4 lbs

Warranty Information
3 Years
