Asrock EC266D44L Server Motherboard

This item is brand-new, factory sealed.

ATX (12" x 9.6")

Supports Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors

4 DIMM slots (2DPC), supports DDR5 ECC UDIMM

1 PCIe5.0 x16, 1 PCIe5.0 x8, 2 PCIe4.0 x4

2 M.2 (PCIe4.0 x4)

Up to 14 SATA 6Gb/s

4 RJ45 (1GbE) by Intel i210

Remote Management (IPMI) Physical Status
Form Factor
ATX
Dimensions
12" x 9.6" (305 mm x 244 mm) Processor System
CPU
Supports Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors
Socket
Single Socket V1 (LGA 1700)
Thermal Design Power
95W
Chipset
Intel C266 System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
Supports DDR5 288-pin ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
4400MT/s (2DPC - 1DIMM) / 4000MT/s (2DPC - 2DIMM 1R) / 3600MT/s (2DPC - 2DIMM 2R)
Voltage
1.1V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 x16 (CPU)
(SLOT6 share lanes with SLOT4. SLOT6 will switch to x8 when SLOT4 is populated)
PCIe x 8
SLOT4: PCIe5.0 x8 (CPU)
PCIe x 4
SLOT7: PCIe4.0 x4 (CPU)
SLOT2: PCIe4.0 x4 (PCH) TPM
TPM support
1 (13-pin, SPI) Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe4.0 x4), support 2280/2260/2242/2230 form factor (PCH)
1 M-key (PCIe4.0 x4), support 2280/2260/2242/2230 form factor (PCH) SATA/SAS Storage
PCH Built-in Storage
Intel C266 (8 SATA 6Gb/s, RAID 0/1/5/10):
8 SATA 7-pin
Additional SATA Controller
ASM1061 (6 SATA 6Gb/s):
6 SATA 7-pin Ethernet
Additional GbE Controller
4 RJ45 (1GbE) by Intel i210 Server Management
BMC Controller
ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F Graphics
Controller
ASPEED AST2600:

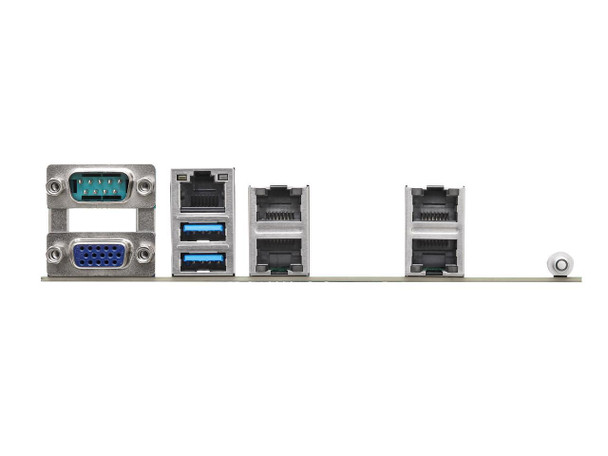

1 DB15 (VGA) Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
2 Type A (USB3.2 Gen1)
RJ45
4 RJ45(1GbE), 1 dedicated IPMI Internal Connector/Headers
Power Connector
1 (24-pin, ATX main power), 3 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header
1
Speaker Header
1 (4-pin)
Buzzer
1
Fan Header
7 (4-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Front Lan LED Connector
1
USB 3.2 (Gen1) Header
2 header (19-pin, 4 USB3.2 Gen1)
USB 2.0 Header
1 header (9-pin, 2 USB2.0)
NMI Header
1 LED Indicators
Standby PWR LED 5vsb
1 (5VSB)
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1 System BIOS
BIOS Type
AMI 256Mb SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash Hardware Monitor
Temperature
CPU, Temp MB1 - MB4, M.2, TR1 Temperature sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, VCCSA, BAT, 3V, 5V, 12V Supported OS
OS
Microsoft Windows
- Server 2022 (64bit)

Linux
- RedHat Enterprise Linux Server 8.5 (64bit) / 9.2 (64bit)
- SUSE Enterprise Linux Server 15 SP3 (64bit) / 15 SP5 (64bit)
- Ubuntu 21.04 (64bit) / 22.04.2 (64bit)
Please refer to the website for the latest OS support list. Environment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
14 x 12 x 3

Weight
4 lbs

Warranty Information
36 M
