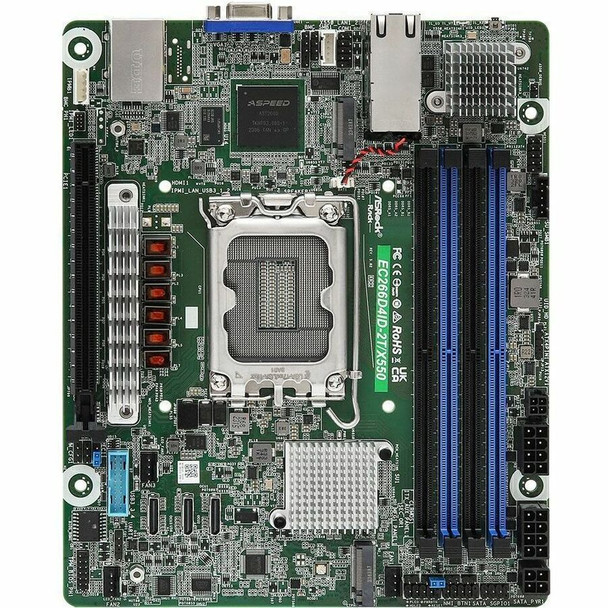

ASRock EC266D4ID-2T/X550 Server Motherboard - Intel C266 Chipset - Socket LGA-1700 - Deep Mini ITX (284251)

This item is brand-new, factory sealed.

Deep mini-ITX (6.7" x 8.2")

Supports Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors

4 DIMM slots (2DPC), supports DDR5 ECC UDIMM

1 PCIe5.0 x16

1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s), 1 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)

Supports 2 M.2 (PCIe4.0 x4)

8 SATA 6Gb/s

2 RJ45 (10GbE) by Intel X550

Supports ATX PSU or 12V DC-in

Remote Management (IPMI)Physical Status
Form Factor
Deep mini-ITX
Dimensions
6.7" x 8.2" (170.18 mm x 208.28 mm) Processor System
CPU
Supports Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors
Socket
Single Socket LGA 1700
Thermal Design Power
95W
Chipset
Intel C266 System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
Supports DDR5 288-pin ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
4400MT/s (2DPC - 1DIMM) / 4000MT/s (2DPC - 2DIMM 1R) / 3600MT/s (2DPC - 2DIMM 2R)
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT1: PCIe5.0 x16 (CPU)

TPM
TPM support
1 (13-pin, SPI)

Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe4.0 x4), support 2280 form factor (PCH)
1 M-key (PCIe4.0 x4), support 2280 form factor (CPU)

OCuLink
1 OCuLink (PCIe4.0 x4) (PCH)
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) (PCH)
1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) (PCH) SATA/SAS Storage
PCH Built-in Storage
Intel C266 (8 SATA 6Gb/s, RAID 0/1/5/10):
2 OCuLink

Ethernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel X550

Server Management
BMC Controller
ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F Graphics
Controller
ASPEED AST2600:
1 DB15 (VGA)

Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
USB 3.2 Gen1 Port
2 Type A (USB3.2 Gen1)
RJ45
2 RJ45(10GbE), 1 dedicated IPMI Internal Connector/Headers
Power Connector
1 Mirco-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors
1 SATA-Power (4-pin)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1 (9-pin)
Fan Header
3 (4-pin)
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (2-pin)
Others
1 NCSI (9-pin)
USB 3.2 (Gen1) Header
1 header (19-pin, 2 USB3.2 Gen1)
NMI Header
1 LED Indicators
Standby PWR LED 5vsb
1 (5VSB)
Fan Fail LED
3
BMC heartbeat LED
1System BIOS
BIOS Type
AMI 256Mb SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash

Hardware Monitor
Temperature
CPU, MB, Card side, VR, M.2, TR1 Temperature sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, VCCSA, BAT, 3V, 5V, 12V Supported OS
Microsoft Windows:
- Windows Server 2022
- Azure Stack HCI
Linux:
- RHEL 8.5
- SLES 15 SP3
- Ubuntu 21.04 LTS
Hypervisor:
- VMware ESXi 8.0 u1
- Linux KVM (Linux OSes)
- Hyper-V (Windows Server) Environment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC

Humidity
Non operation humidity: 20% to 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
14 x 12 x 3

Weight
4 lbs

Warranty Information
36 M
