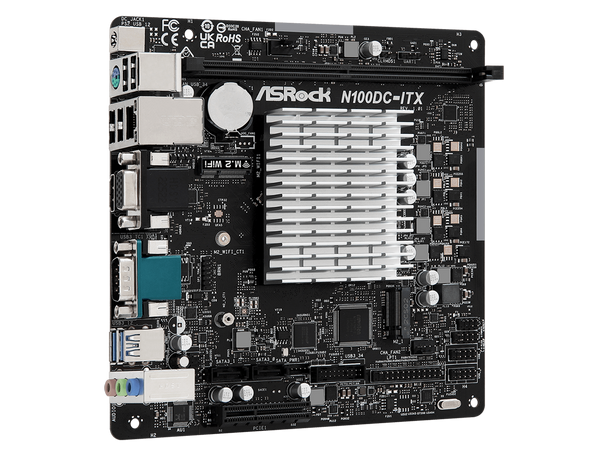

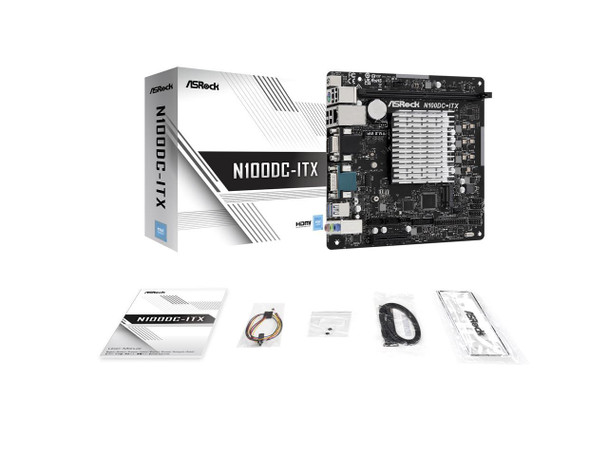

ASRock N100DCITX Mini-ITX Motherboard

This item is brand-new, factory sealed.

• Equipped with Intel Quad-Core Processor N100
• Equipped with a specially designed heatsink and ultra-quiet fanless design
• Supports AV1 decoding via hardware acceleration
• In addition to the onboard LAN port, it also can be connected wirelessly via M.2 (Key E) slot
• Supports 10-bit HEVC & VP9 encoding/decoding

• Product Dimensions: 12.2 x 8.27 x 1.97 inches
• Item Weight: 1.39 pounds
• Manufacturer: ASRock

Socket:
Chipset: Intel Quad-Core Processor N100 (Up to 3.4 GHz) - Supports Intel Turbo Boost Technology
Form Factor: Mini-ITX
Memory Specification 1: 1 x DDR4
Memory Specifications 2: Supports DDR4 non-ECC, un-buffered memory up to 3200*
* Please refer to Memory Support List on ASRock's website for more
information. (http://www.asrock.com/)- Max. capacity of system memory: 32GB
Power Phase: 2+1+1 Power Phase
GPU Function: Integrated Intel UHD Graphics: 24 EUs inside (Up to 750MHz).
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Graphic Output: D-Sub, HDMI.
PCIE: 1 PCIe 3.0 x4
?PCIE X1?-
OC:
SLI:
?CrossFire?-
Sound Function: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB 2.0: 8 x USB 2.0 (4 Rear, 4 Front).
USB 3.2 Gen1 (USB 3.0) 5Gb/s 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
?USB3.2Gen2/Thunderbolt 310Gb/s?-
?USB3.2Gen2x2 Type-C 20Gb/s?-
?Thunderbolt 4(USB4.0)?-(br) ?Thunderbolt 4 Header?-(br) ?SATA3?2
M.2 Slots: 1 M.2 (PCIe Gen3 x 2).
?M.2 Slot Heat Sink?-
M.2 Wifi: 1 M.2 Key E for WiFi
Wireless LAN (Wi-Fi).
LAN: Realtek Gigabit LAN
?LED?-
