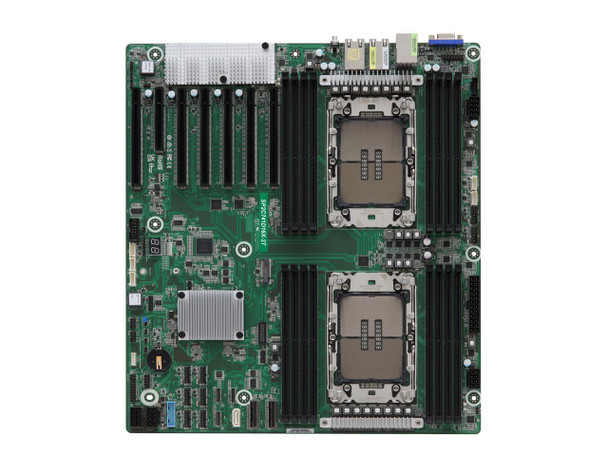

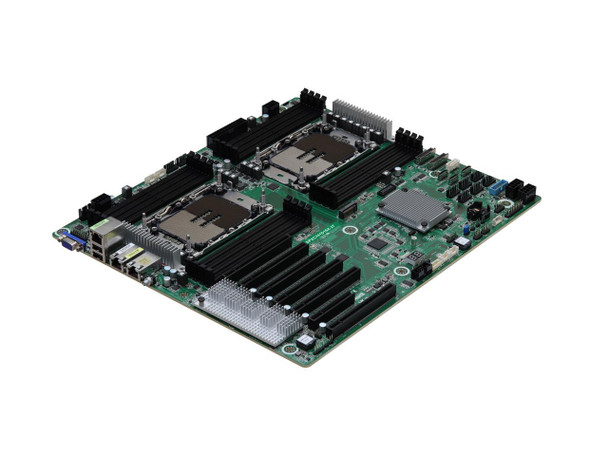

Asrock SP2C741D16X2T Motherboard

This item is brand-new, factory sealed.

SP2C741D16X-2T
EEB (12.4 x 14")
Supports 5th and 4th Gen Intel Xeon Scalable processors
8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
6 PCIe5.0 / CXL1.1 x16
1 PCIe5.0 x8
2 MCIO (PCIE5.0 x8)
3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
Supports 1 M.2 (PCIe5.0 x4)
Up to 13 SATA 6Gb/s
2 RJ45 (10GbE) by Intel X710-AT2
Remote management (IPMI)Physical Status
Form Factor
EEBProcessor System
CPU
Supports 5th and 4th Gen Intel Xeon Scalable processors
Socket
1+1 Socket E (LGA 4677)
Thermal Design Power
350W
Chipset
Intel C741System Memory
Supported DIMM Quantity
8+8 DIMM slots (1DPC)
Supported Type
288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM
RDIMM: 96GB
RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
Max. DIMM Frequency
5600 MT/s on 5th Gen Intel Xeon Scalable Processors
4800 MT/s on 4th Gen Intel Xeon Scalable Processors
Memory speed and capacity support varies by CPU SKU
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 / CXL1.1 x16 CPU0
SLOT5: PCIe5.0 / CXL1.1 x16 CPU1
SLOT4: PCIe5.0 / CXL1.1 x16 CPU0
SLOT3: PCIe5.0 / CXL1.1 x16 CPU1
SLOT2: PCIe5.0 / CXL1.1 x16 CPU1
SLOT0: PCIe5.0 / CXL1.1 x16 CPU1
PCIe x 8
SLOT1: PCIe5.0 x8 CPU0Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe5.0 x4) support 22110/2280 form factor CPU0
Others
2 MCIO (PCIE5.0 x8) CPU0
OCuLink
3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) PCHSATA/SAS Storage
PCH Built-in Storage
Intel C741 (Up to 13 SATA 6Gb/s, support RAID 0/1/5/10):
3 OCuLink for 12 SATA, 1 SATA 7-pinEthernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel X710-AT2Server Management
BMC Controller
ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLANGraphics
Controller
ASPEED AST2600:
1 DB15 (VGA), 1 headerRear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA)
USB 2.0 Port
2 Type-A (UBS2.0)
RJ45
2 RJ45 (10GbE), 1 dedicated IPMIInternal Connector/Headers
Power Connector
1 (24-pin, ATX main power), 2 ( 8-pin, ATX 12V)
Other Power Connectors
2 (8-pin, add-on card power and FAN)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1 (9-pin)
VGA header
1 (15-pin)
Fan Header
8 (6-pin)
TPM Header
1 (13-pin, SPI)
VROC header
1
SGPIO Header
2
HSBP
2
SMBus header
2
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
USB 3.2 (Gen1) Header
1 header (19-pin, 2 USB3.2 Gen1)
NMI Header
1LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
8
BMC heartbeat LED
1System BIOS
BIOS Type
AMI UEFI BIOS 512Mb SPI Flash ROM
BIOS Features
Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flashHardware Monitor
Temperature
CPU, PCH, MB, Card side Temperature Sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
PSU +12V and +5VSB and +3.3V, +3VSB, PVNN_PCH, P1V05_PCH_STBY, P1V8_PCH_STBY, +BAT, PVCCIN_CPU0, PVCCIN_CPU1, PVCCINFAON_CPU0, PVCCINFAON_CPU1, PVCCFA_EHV_FIVRA_CPU0, PVCCFA_EHV_FIVRA_CPU1, PVCCD_HV_CPU0, PVCCD_HV_CPU1Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)Item Dimension (L"xW"xH")
14 x 12 x 3

Weight
4 lbs

Warranty Information
3 Years
