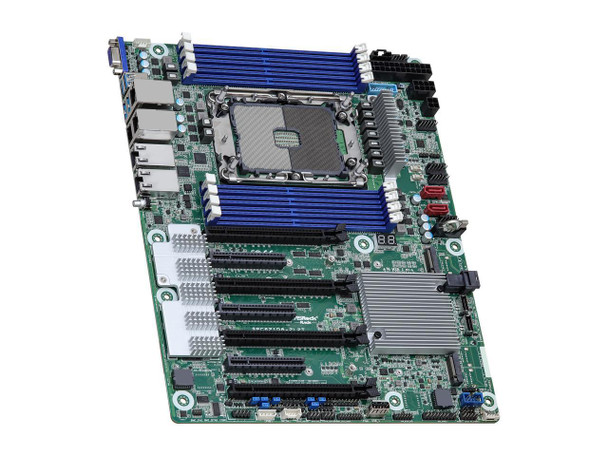

ASRock SPC621D82L2T SPC621D8 2L2T ATX Server Motherboard
(No reviews yet)
Write a Review
- SKU:
- 18497640
- MPN:
- 258327
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/22/2026 05:10:31 PM PST
- Stock Update:
- 01/22/2026 05:10:31 PM PST
Description
This item is brand-new, factory sealed.
ATX (12" x 9.6")Supports 3rd Gen Intel Xeon Scalable Processors
8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel Optane Persistent Memory
4 PCIe4.0 x16, 3 PCIe4.0 x8
Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)
8 SATA 6Gb/s (including 2 ports from M.2)
2 RJ45 (10GbE) by Intel X710-AT2, 2 RJ45 (1GbE) by Intel i210
Remote management (IPMI) Form Factor
ATX Processor System
CPU
Supports 3rd Gen Intel Xeon Scalable processors
Socket
Single Socket P+ (LGA 4189)
Chipset
Intel C621A System Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel OptaneTM Persistent Memory 200 series
Max. Capacity per DIMM
RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB
DIMM Frequency
max. 3200MHz
Voltage
1.2V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe4.0 x16
SLOT5: PCIe4.0 x16
SLOT3: PCIe4.0 x16
SLOT1: PCIe4.0 x16
Note: SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied
PCIe x 8
SLOT6: PCIe4.0 x8
SLOT4: PCIe4.0 x8
SLOT2: PCIe4.0 x8 Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor
1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor SATA/SAS Storage
PCH Built-in Storage
Intel C621A (8 SATA 6Gb/s RAID 0/1/5/10):
1 Mini-SAS HD, 2 SATA DOM, 2 M.2 Ethernet
Additional GbE Controller
Intel X710-AT2: 2 RJ45 (10 GbE)
Intel i210: 2 RJ45 (1GbE) Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN Graphics
Controller
ASPEED AST2500
VRAM
DDR4 16MB Rear I/O
UID Button/LED
1
VGA Port
1 DB15
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE), 2 RJ45 (1GbE)
Dedicate LAN
1 dedicated IPMI Internal Connector/Headers
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header
1 Video output
1 Speaker Header
1 Buzzer
1 Fan Header
5 (6-pin) Thermal Sensor Header
1 TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI) VROC header
1
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 3.2 Ports | 4 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 2.0 Ports | 3 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 4 |
| Total Number of PCI Express Slots | 7 |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of Network (RJ-45) Ports | 4 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 8 |
| Memory Speed Supported | 3200 MHz |
| Memory Form Factor |
|
| Maximum Memory Supported | 256 GB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2500 |
| General Information | |
| Brand Name | ASRock |
| Manufacturer Website Address | http://www.asrock.com |
| Product Type | Server Motherboard |
| Product Name | SPC621D8-2L2T Server Motherboard |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | SPC621D8-2L2T |
| Product Model | SPC621D8-2L2T |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Generation Supported | 3rd Gen |
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4189 |
| Chipset Model | C621A |
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
