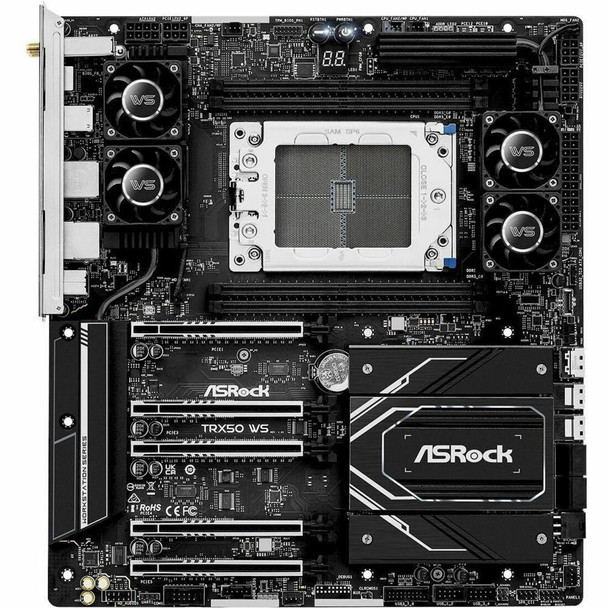

ASRock TRX50 WS Workstation Motherboard - AMD TRX50 Chipset - Socket sTR5 - Extended ATX (281040)
(No reviews yet)
Write a Review
- SKU:
- 20583932
- MPN:
- 281040
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/04/2026 01:11:38 PM PST
- Stock Update:
- 02/04/2026 01:11:38 PM PST
Description
This item is brand-new, factory sealed.
TRX50 WSSupports AMD Ryzen Threadripper PRO 7000 and AMD Ryzen Threadripper 7000 Series Processors
18+3+3 Power Phase Design, 110A SPS for VCore
Supports 4 DIMMs DDR5 ECC Registered memory
3 PCIe 5.0 x16, 2 PCIe 4.0 x16
Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
4 SATA3,
1 Blazing M.2 (PCIe Gen5 x4),
1 Hyper M.2 (PCIe Gen4 x4),
1 MCIO (PCIe Gen5 x4),
2 SlimSAS (PCIe Gen4 x4 / 4 SATA3)
1 USB 3.2 Gen2x2 Type-C (Rear),
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
4 USB 3.2 Gen2 Type-A (Rear),
4 USB 3.2 Gen1 (2 Rear, 2 Front),
4 USB 2.0 (Front)
Marvell 10 GbE LAN,
Realtek 2.5 Gigabit LAN
802.11ax WiFi 6E + BluetoothUnique Feature
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Quad Channel DDR5
Rock-Solid Durability
- Ultra Low-Loss PCB
- 18+3+3 Power Phase, 110A SPS for VCore
- Pre-Installed I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
- 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver InstallerCPU
- Supports AMD Ryzen Threadripper PRO 7000 and AMD Ryzen Threadripper 7000 Series Processors
- Supports AMD Socket sTR5
- Supports ASRock Hyper BCLK EngineChipset
- AMD TRX50Memory
- Quad Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
- Max. capacity of system memory: 1TB
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI supportGraphics
- n/aAudio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic AudioLAN
1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113)
- Support Wake-On-LAN
- Support PXE
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority ControlWireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO
Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.Slots
CPU:
- 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16 PCIE4 at x8)
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
- 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode
Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15mu Gold Contact in VGA PCIe Slots
Supports NVMe SSD as boot disksStorage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode
- 1 x MCIO PCIe Gen5x4 Connector
- 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode
- 4 x SATA3 6.0 Gb/s Connectors
Supports NVMe SSD as boot disksRAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Requires additional M.2 NVMe expansion cards to support RAID 10USB
CPU:
- 1 x USB 3.2 Gen2x2 Type-C (Rear)
- 4 x USB 3.2 Gen2 Type-A (Rear)
Chipset:
- 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 4 x USB 2.0 (Front)
All USB ports support ESD ProtectionConnector
- 2 x Thermistor Cable Headers
- 1 x SPI TPM Header
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 3 pin ATX Power Connector
- 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)
- 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)
- 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)
- 1 x Front Panel Audio Connector (15mu Gold Audio Connector)
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
Support in total up to 5V/3A, 15W LED Strip
CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2/WP supports the fan power up to 2A (24W).
CHA_FAN13/WP support the fan power up to 2A (24W).
Plug the Multi PSU Adaptor Cable that comes with the package to ATX_CON1 if you use a secondary PSU.
It is required to connect both ATX12V1 and ATX12V2 otherwise, the system may not boot up properly.
It is required to connect all 8 pin and 6 pin 12V Power Connectors when overclocking.
It is required to connect a 6 pin PCIE 12V Power Cable to GFX_12V1 otherwise, the system may not boot up properly.Rear Panel I/O
- 2 x Antenna Ports
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Type-A Ports
- 2 x RJ-45 LAN Ports
- 1 x Clear CMOS Button
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
These utilities can be downloaded from ASRock Live Update and APP Shop.Accessories
- 1 x User Manual
- 4 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 2 x Thermistor Cables
- 1 x Multi PSU Adaptor Cable
- 2 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 SocketsForm Factor
- EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm
- 12 Layer PCB
- 2oz Copper PCBOS
- Microsoft Windows 11 64-bitCertifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)Item Dimension (L"xW"xH")
15 x 13 x 4
Weight
6.25 lbs
Warranty Information
3 years
Features
Energy Efficiency Compliance:
Energy-related Products Directive Ready (ErP Ready)
Energy-using Products Directive Ready (EuP Ready)
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 10.9" |
| I/O Expansions | |
| PCI Express Standard |
|
| Number of PCI Express x16 Slots | 5 |
| Total Number of PCI Express Slots | 5 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported | 7600 MHz |
| Memory Form Factor |
|
| Maximum Memory Supported | 1 TB |
| General Information | |
| Brand Name | ASRock |
| Package Type | Retail |
| Manufacturer Website Address | http://www.asrock.com |
| Marketing Information | TRX50 WS Dependable and Versatile Workstations Motherboard. Designed to deliver powerful performance, manageability and reliability for high speed computing workstations. Optimized VRM Design 20K Capacitor VRM Design Power Connector PREMIUM PCB SOLUTION | Server Grade Ultra Low Loss PCB The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance. 2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. 12 Layer PCB The 12 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. Composite VRM Heatsink It is equipped with a composite VRM heatsink active cooling fans, XXL aluminum heatsinks and heat pipe for maximum heat dissipation. DDR5 ECC Memory Support Supports 4 DIMMs DDR5 RDIMM ECC Memory overclocking with max capacity of 1TB. It can automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules. 3 x PCIe Gen5 x16 With AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series processors, ASRock TRX50 WS supports 3 PCIe gen5 x16 slots, deliver all the performance of PCIe 5.0 to your GPU and add-on cards. Fullfill all the professional design, deep learning, simulation and rendering applications. Multi PSU Adaptor Cable Users can easily add a secondary power supply via Multi PSU Adaptor Cable and ATX_Con header, allowing users to build a high performance with wider combinations of high wattage power supply. PCIe Gen5 Blazing M.2 The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. Server Grade Storage Connections Equipped with SlimSAS(SFF-8654) and the latest MCIO server grade connections for fast and stable storage expansions. Ultimate Network Connectivity Equipped with Marvell10 GbE & Realtek 2.5 GbE LAN to ensure superfast file-transfer speed to local server, NAS or Cloud storage. Wi-Fi 6E 802.11ax WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. USB 3.2 Gen2x2 Type-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. POLYCHROME RGB This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across thePolychrome RGB Sync-certifiedaccessories to create their own unique lighting effects |
| Product Type | Workstation Motherboard |
| Product Name | TRX50 WS Workstation Motherboard |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | TRX50 WS |
| Product Model | TRX50 WS |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Processor Supported | Ryzen Threadripper PRO |
| Total Processor Supported | 1 |
| Processor Socket | Socket sTR5 |
| Chipset Model | TRX50 |
| Onboard Interfaces | |
| Total Number of Onboard USB Ports | 7 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 2.0 Ports | 4 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| S/PDIF | Yes |
| VGA | Yes |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Total Number of USB Ports | 8 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| 10Gigabit Ethernet | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
