ASRock W790D8UD-1L1N2T/BCM Server Motherboard - Intel W790 Chipset - Socket LGA-4677 - Deep Micro ATX (w790d8ud-1l1n2t-bcm)

This item is brand-new, factory sealed.

TGPIO supporting precise time synchronization between devices

Deep Micro-ATX (10.4" x 10.5")

Supports Intel Xeon W-2500/2400 and W-3500/3400 series processors

8 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS

4 PCIe5.0 x16

2 OCuLink

Supports 1 M.2 (PCIe4.0 x4)

Up to 8 SATA 6Gb/s

2 RJ45 (10GbE) by Broadcom BCM57416

1 RJ45 (2.5GbE) by Intel i226

1 RJ45 (1GbE) by Intel i210

Remote Management (IPMI) Physical Status
Form Factor
Deep Micro-ATX
Dimensions
10.4 x 10.5 (264 x 266 mm) Processor System
CPU
Intel Xeon W-2500/2400 and W-3500/3400 series processors
Socket
Single Socket E (LGA 4677)
Thermal Design Power
350W
Chipset
Intel W790 System Memory
Supported DIMM Quantity
8 DIMM slots (2DPC)
Supported Type
DDR5 288-pin RDIMM/ RDIMM-3DS
Max. Capacity per DIMM
RDIMM: 64GB
RDIMM-3DS: 2H- 128 GB/ 4H- 256 GB
Max. DIMM Frequency
4400MT/s (2DPC) / 4800MT/s (1DPC)
Voltage
1.1V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe5.0 x16 (CPU)
SLOT6: PCIe5.0 x16 (CPU)
SLOT5: PCIe5.0 x16 (CPU)
SLOT4: PCIe5.0 x16 (CPU) Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe4.0 x4), supports 2280 form factor (PCH)
OCuLink
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) (PCH)
1 OCuLink (PCIe4.0 x4) (PCH) SATA/SAS Storage
PCH Built-in Storage
Intel W790 (Up to 8 SATA 6Gb/s, RAID 0/1/5/10):
1 OCuLink for 4 SATA, 4 SATA 7-pin Ethernet
Additional GbE Controller
2 RJ45 (10GbE) by Broadcom BCM57416
1 RJ45 (2.5GbE) by Intel i226
1 RJ45 (1GbE) by Intel i210 Server Management
BMC Controller
ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F Graphics
Controller
ASPEED AST2600:

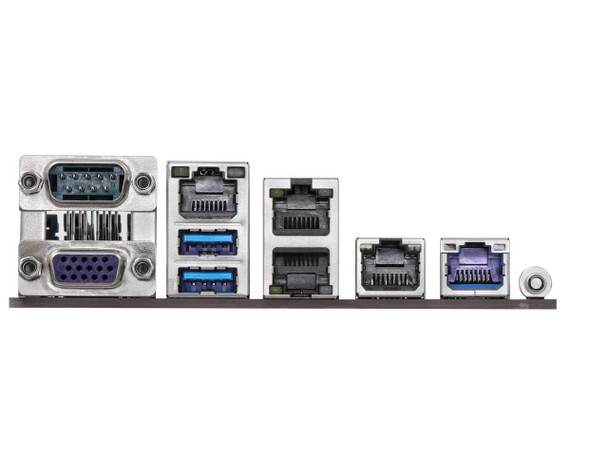

1 DB15 (VGA) Rear I/O
UID Button/LED
1 UID button w/ LED
Video Port
1 DB15 (VGA)
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45(10GbE), 1 RJ45(2.5GbE), 1 RJ45(1GbE), 1 dedicated IPMI Internal Connector/Headers
Power Connector
1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 4 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header
1 (4-pin)
Buzzer
1
Fan Header
7 (4-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
HSBP
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Others
2 (1-pin, TGPIO header)
Front Lan LED Connector
1
NMI Header
1 LED Indicators
Standby PWR LED
1
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1 System BIOS
BIOS Type
AMI 256Mb SPI Flash ROM
BIOS Features
Plug and Play, ACPI 5.0 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash Hardware Monitor
Temperature
CPU, MB, Card side, TR1 Temperature sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
CPU1_PVCCIN, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, +12V, +12VSB Supported OS
OS
Microsoft Windows
- Windows 10 (64 bit)
- Windows 11 (64 bit)
Linux
- RedHat Enterprise Linux Server 9.3 (64bit) / 8.6 (64bit)
- SUSE SLE 15.5 (64 bit) / 12.5 (64bit)
- UBuntu 23.04 (64 bit) / 22.10 (64 bit) / 22.04.4 (64 bit)
Hypervisor:
- VMWare ESXi 7.0 U3l / 7.0U3n
- VMWare ESXi 8.0 U1a / 8.0U2b
Note: RAID mode is not supported on the Ubuntu system.
Note: iPXE Server is not supported on the Ubuntu 23.04
Note: NVMe RAID is not supported on SUSE 12.5 Environment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
12 x 12 x 3

Weight
4 lb

Warranty Information
3 years
