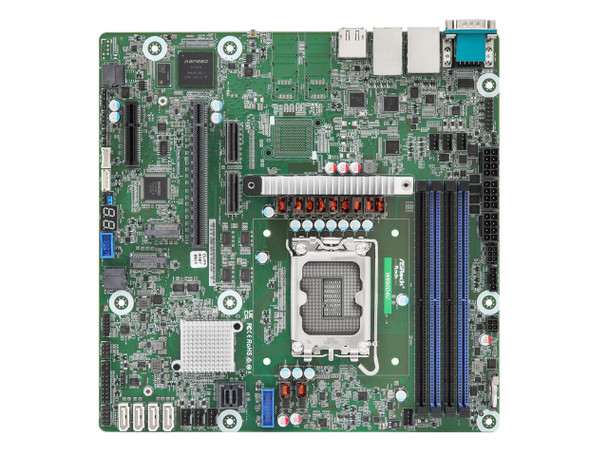

Asrock W880D4U Micro-ATX Server Motherboard for LGA1851

This item is brand-new, factory sealed.

W880D4U

Support ATX PSU or 12V DC-in

Micro-ATX (9.6" x 9.6")

Supports Intel Core Ultra Desktop Processors (Series 2)

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM, CUDIMM Memory

1 PCIe5.0 x16*, 1 PCIe5.0 x4

1 MCIO (PCIe5.0 x8 or 2 PCIe5.0 x4)*, 1 MCIO (2 PCIe4.0 x4)

Supports 2 M.2 (PCIe4.0 x4)

8 SATA 6Gb/s

2 RJ45 (1GbE) by Intel i210

1 HDMI, 1 DisplayPort

Remote management (IPMI)Physical Status
Form Factor
Micro-ATX
Dimensions
9.6" x 9.6"Processor System
CPU
Supports Intel Core^TM Ultra Desktop Processors (Series 2)
Socket
Single Socket LGA 1851
Thermal Design Power
125W
Chipset
Intel W880System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM, CUDIMM
Max. Capacity per DIMM
64GB
Max. DIMM Frequency
CUDIMM:
6400 MT/s (1SPC)
5600 MT/s (2SPC 0R2R)
4800 MT/s (2SPC 1R1R)
4400 MT/s (2SPC 2R2R)
ECC/non-ECC UDIMM:
5600 MT/s (2SPC 0R2R)
4800 MT/s (2SPC 1R1R)
4400 MT/s (2SPC 2R2R)
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 x16 (CPU)^note
Note: MCIO1 shared lanes x8 with SLOT6. To enable MCIO1, BIOS settings are required.
PCIe x 4
SLOT4: PCIe5.0 x4 (CPU)TPM
TPM support
1 (13-pin, SPI)Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe4.0 x4), supports 2280 form factor (CPU)
1 M-key (PCIe4.0 x4), supports 2280 form factor (PCH)
Others
MCIO1 (PCIe5.0 x8 or 2 PCIe5.0 x4) (CPU)
MCIO2 (2 PCIe4.0 x4) (PCH)SATA/SAS Storage
PCH Built-in Storage
Intel W880 (8 SATA 6Gb/s, RAID 0/1/5/10):
4 SATA 7-pin, 1 Mini-SAS HDEthernet
Additional GbE Controller
2 RJ45 (1GbE) by Intel i210Server Management
BMC Controller
ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211FGraphics
Controller
ASPEED AST2600:
1 DB15 (VGA)
Intel Integrated Processor Graphics:
1 HDMI, 1 DisplayPortRear I/O
UID Button/LED
1 UID button, 1 UID LED
Video Port
1 DB15 (VGA), 1 HDMI, 1 DisplayPort
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (1GbE), 1 dedicated IPMIInternal Connector/Headers
Power Connector
1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors
1 (6-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header
1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header
1 (15-pin)
Speaker Header
1
Fan Header
7 (4-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (2-pin)
USB 3.2 (Gen1) Header
1 header (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header
1 header (9-pin, 2 USB2.0)
NMI Header
1LED Indicators
Standby PWR LED
1 (5VSB)
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1 System BIOS
BIOS Type
AMI 256Mb SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant FlashHardware Monitor
Temperature
CPU, PCH, MB temp, Card side temp, TR1, VR, M.2 Temperature Sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
VCORE, GT, VCCSA, VNNAON, VCCIO, 1.8V_CPU, VDD2, 0.82V_PCH, 1.8VSB, 3V, 5V, 12V, BAT, 3VSB, 5VSBSupported OS
OS
Microsoft Windows
- Windows 10 (64 bit)
- Windows 11 (64 bit)
Linux
- RedHat Enterprise Linux Server 9.6 (64bit) / 10.0 (64bit)
- SUSE SLES 15.6 (64 bit)
- UBuntu 24.04.2 (64 bit) / 24.10 (64 bit) / 25.04 ( 64 bit)
Note: Linux dont support Raid Mode
Note: M.2 NVME / U.2 NVME dont support Raid Mode
Note: Supports UEFI BOOT only.Environment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
12 x 12 x 7

Weight
8.00lb

Warranty Information
36 M
