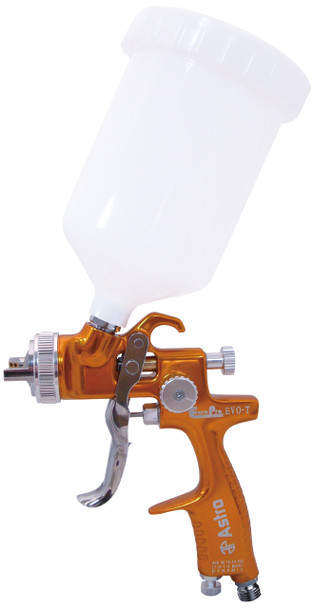

Astro Pneumatic EVOT14 Europro Forged Evo-t Spray Gun 1.4mm

This item is brand-new, factory sealed.

Features and Benefits:

• Forged body provides longer tool life
• Soft trigger pull to reduce fatigue
• Precise lubricated adjustment knobs for better control
• Innovative CNC machining to avoid the need for gaskets behind the fluid tip
• Innovative, advanced EVO-T technology (Patented)
• Anodized body for corrosion protection
• Internal coated passages
• Stainless steel needle and fluid tip
• Slick finish for faster & easier cleaning
• Lightweight: 285 grams (0.6 Lbs)
•

HIGH EFFICIENCY

• “Air Curtain” design to minimize overspray and pollution
• Superior transfer efficiency to reduce paint consumption, as tested in the lab of Fraunhofer IPA, Germany
• Finest atomization & classic quality
• Innovative, advanced EVO-T technology (Patented)

QUICK THREAD TECHNOLOGY

• 1.5 Turn to lock/unlock the air cap
• 3 Turns to lock/unlock the fluid nozzle
• 4 Turns to lock/unlock the fluid cup
• Wide threads for easy cleaning
• M11*P1.5 female thread fluid joint
• Compatible with most traditional and disposable cup systems

SMOOTH OPERATION

• Soft trigger pull to reduce fatigue
• Precise lubricated adjustment knobs for better control
• Innovative CNC machining to avoid the need for gaskets behind the fluid tip

SPECIFICATIONS:
Nozzle Size: 1.4mm
Cup Capacity: 600ml
Operation Pressure: 15-19psi
Weight: 0.6lbs. (285g)
Gun Dimensions W x H: 7" x 5-3/4" (175mm x 145mm)
Avg. Air Consumption: 11.5-13.5cfm
Air Inlet Thread NPT: 1/4"
Required Compressor: 2.2-3.7hp
Max. Pattern at 4" to 7" Distance: 9"-101/4" (230-260mm)
Air Cap Output: 10psi
Air Hose I.D. Size: 6-8mm
