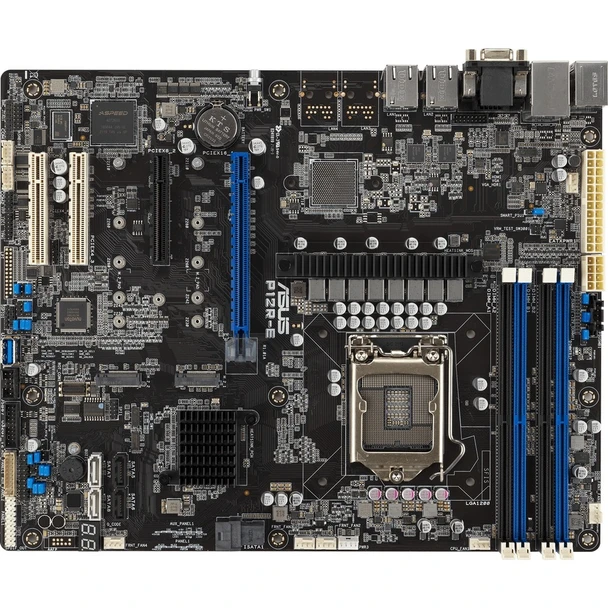

Asus P12R-E Server Motherboard - Intel C256 Chipset - Socket LGA-1200 - ATX (260571)
(No reviews yet)
Write a Review
- SKU:
- 18837881
- MPN:
- 260571
- Availability:
- Out of stock
- Stock Update:
- 01/14/2026 01:37:19 PM PST
- Stock Update:
- 01/14/2026 01:37:19 PM PST
Description
This item is brand-new, factory sealed.
Intel Xeon E-2300 LGA 1200 ATX server motherboard with four DIMM and dual M.2 slots, plus dual LAN, eight SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2. Optional Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVMKEY FEATURES
Ideal for remote office/branch office (ROBO) use and everyday business environments
Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
Dual Intel I210AT Gigabit Ethernet with teaming support
Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
HDMI 1.4 support for high-resolution display maintenance and monitoring
Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
PCIe 4.0 Ready
PCI Express (PCIe) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs. Processor / System Bus
1 x Socket LGA1200
Intel PentiumTM processors
Intel Xeon E Processors Core Logic
Intel C256 Chipset Memory
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB
Note: Refer to support page for more information Expansion Slots
Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied Form Factor
ATX (12"x9.6", 305mm x 244mm) ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center Storage
Storage Controller :
8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
2 x M.2 connector(2242/2260/2280/22110) both SATA and PCIe mode Note1
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card Networking
2 x Intel I210AT + 1 x Mgmt LAN Graphic
Aspeed AST2600 with 64MB VRAM Note2 On Board I/O
1 x VGA HeaderNote2
1 x HDMI Note3
1 x TPM header
1 x COM port
1 x PS/2 KB/MS port
1 x Onboard header for optional management card
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
2 x USB3.2 Gen2 ports
2 x USB3.2 Gen1 ports
1 x USB3.2 Gen1 header Back I/O Ports
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x HDMI Port (useable only with iGPU)
1 x VGA Port (VGA from BMC)
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse Management Solution
ASUS Control Center Enterprise (Optional)
ASMB10-iKVM for KVM-over-Internet(Optional) Environment
Operation temperature: 10oC to 50oC
Non operation temperature: -40oC to 70oC
Non operation humidity: 20% to 90% ( Non condensing)
Note: The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference. Accessories
Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
4 x SATA 6G cables
1 x Plate for LGA1200
Bulk Pack (10-in-1)
1 x Support CD
1 x I/O shield
1 x Plate for LGA1200 Monitoring
CPU Temperature
Fan RPM Note
1.Gen4 x4 Link and Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal
2.VGA from BMC
3.HDMI (useable only with iGPU)Item Dimension (L inchxW inchxH inch)
13 x 11 x 3
Weight
4.00 lb
Warranty Information
3 Years with ARS
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 5 |
| Number of M.2 Interfaces | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x8 Slots | 3 |
| PCI Express Standard | PCI Express 4.0 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 4 |
| Interfaces/Ports | |
| VGA | Yes |
| HDMI Version | <li>1.4</li> |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | PCIe 4.0 Ready PCI Express ® (PCIe ® ) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads. Intel Xeon E-2300 processors Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs. High-resolution HDMI monitoring ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring. Dual Ethernet bandwidth With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications. Server-management Solution | ASUS ASMB10-iKVM ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish ® API. ASUS Control Center ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. Enhanced security ASUS P12R server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification. In addition, all P12R server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities. |
| Product Type | Server Motherboard |
| Product Name | P12R-E Server Motherboard |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | P12R-E |
| Product Model | P12R-E |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Model | C256 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
