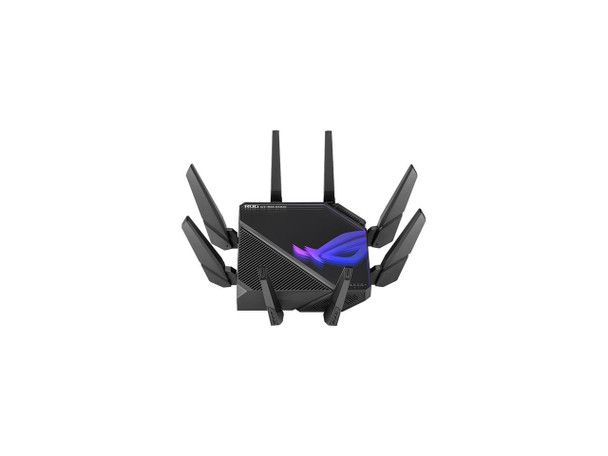

Asus ROG Rapture GT-AXE16000 Wi-Fi 6E IEEE 802.11ax Ethernet Wireless Router (263876)

This item is brand-new, factory sealed.

The world's first quad-band WiFi 6E gaming router

The trailblazing ROG Rapture GT-AXE16000 is the world's very first quad-band WiFi 6E gaming router, delivering incredible speeds of up to 16000 Mbps. We've unlocked the full potential of the four frequency bands 2.4 GHz, two 5 GHz* bands, and 6 GHz with 160 MHz channels in the 5 GHz and 6 GHz bands to bring you the fastest speeds possible.

*The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.


Experience ultimate connectivity

With four frequency bands available, you can dedicate each band to different devices for faster and smoother WiFi connections. It also gives you even more flexible options for connecting ASUS AiMesh-compatible routers as mesh nodes if you want to create a whole-home mesh system.


WiFi 6E - 6 GHz band

WiFi 6E gives you up to seven* additional high-speed 160 MHz channels, for multi-gigabit speeds with stable and consistent connections. It dramatically increases network capacity while reducing bandwidth congestion, delivering higher performance for every WiFi 6E device.

*Subject to regulatory limitations, and co-existence with 5 GHz WiFi. Number of channels may be less than 7. If no 6 GHz SSID is displayed, please check whether your OS and client device are fully licensed to support the newly released 6 GHz band. You can check with your OS and client device provider for the WiFi 6E driver release schedule.


Flexible network port configuration

ROG Rapture GT-AXE16000 has two dual-function 10 Gbps WAN/LAN ports, four 1 Gbps LAN ports, and a 2.5 Gbps WAN port. This flexibility gives you the ability to deliver massive bandwidth to your wired devices, and take advantage of ultra-high-speed internet connections in any scenarios. Network Standard
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi Product Segment
AXE16000 ultimate AX/AXE performance WiFi Data Rate
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps Antenna
External antenna x 8 (non-detachable)
Internal antenna x 4 Transmit / Receive
2.4GHz 4x4
5GHz-1 4x4
5GHz-2 4x4
6GHz 4x4 Processor
2.0GHz quad-core processor Memory
256MB NAND flash and 2GB DDR4 RAM Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Note: The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. Operating Frequency
Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHzOperating Mode
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge I/O Ports
1 x 2.5 Gigabit WAN Port
2 x 10 Gigabit WAN/LAN Ports
4 x Gigabit LAN Ports
1 x USB 3.2 Gen 1 Port
1 x USB 2.0 Port Buttons
WPS Button, LED Button, Reset Button, Power Switch LED Indicator
Power x 1
2.4G x 1
5GHz-1 x 1
5GHz-2 x 1
6G x 1
10GE Port x 1
LAN x 1
WAN x 1 Power Supply
AC Input : 110V to 240V(50 to 60Hz)
DC Output : 19 V with max. 3.42 A current , 19.5 V with max. 3.33 A current Package Content
GT-AXE16000 WiFi Gaming Router
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card AiMesh
AiMesh
- Primary AiMesh Router
- AiMesh Node Game
Game Boost / Acceleration
Game Radar
WTFast
ROG_First
OpenNAT (Game Profile) Parental Control
"Allow you to block access to unwanted websites and apps."
Parental Control Customized Internet Schedule
- Maximum Parental Control profile : 64
- Maximum Parental Control content filter rule : 64 Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
- Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal Security
WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System and OWE
WPS
Lets Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
- Maximum Firewall Keyword Filter : 64
- Maximum Firewall Network Service Filter : 32
- Maximum Firewall URL Filter : 64
