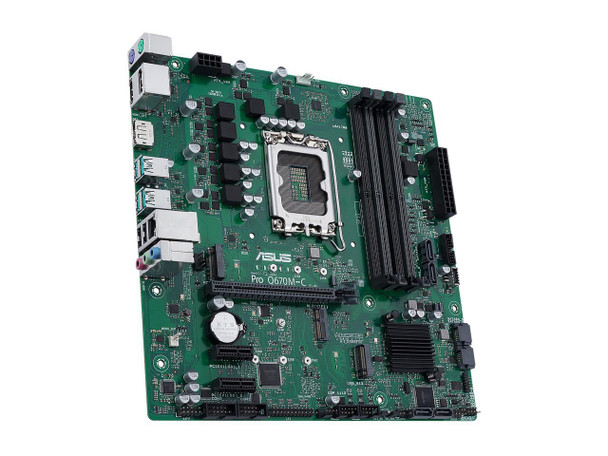

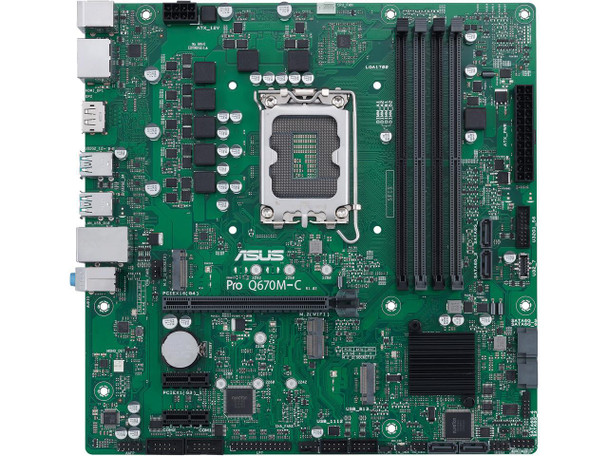

Asus PRO Q670M-C-CSM Desktop Motherboard - Intel Q670 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX (90mb19e0-mvaayc)

This item is brand-new, factory sealed.

Micro-ATX Q670 business motherboard with Intel vPro support and enhanced security, reliability, manageability and serviceability


Intel LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors

ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards

ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration

Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs

Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments

Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance

Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes CPU
Intel Socket LGA1700 for 12th Gen Intel Core^TM, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0^Note2
Note1: Refer to www.asus.com for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
Intel Q670 Chipset Memory
4 x DIMM, Max. 128GB, DDR5 4800 Non-ECC, Un-buffered Memory^Note
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Optimem II
Note: Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics
2 x DisplayPort^Note2
1 x HDMI port^Note3
Note1: Graphics specifications may vary between CPU types.
Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Note:3 Supports 4K at 60Hz as specified in HDMI 2.1.
Note4: VGA resolution support depends on processors or graphic cards resolution. Expansion Slots
Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel Q670 Chipset
2 x PCIe 3.0 x1 slots
Note: Please check PCIe bifurcation table in support site. Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports^Note1
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode
Intel Q670 Chipset^Note2
M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
Note1: Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Note2: Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. Ethernet
1 x Intel I219LM 1Gb Ethernet
ASUS LANGuard Wireless and Bluetooth
M.2 slot only (Key E, CNVi and PCIe) ^Note
Note: Wi-Fi module is sold separately. USB
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC^Note
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMI port
3 x Audio jacks
1 x Intel 1Gb Ethernet
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME jumper
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x Speaker header
1 x 10-1 System Panel header Special Features
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design and Business Focused Features
- ASUS Boot Defender
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM IC onboard Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE) BIOS
256 Mb Flash ROM Manageability
WOL by PME, PXE Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide Operating System
Windows 11 64-bit, Windows 10 - 64 bit Form Factor
mATX Form FactorItem Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00 lb

Warranty Information
3 Years
