Asus

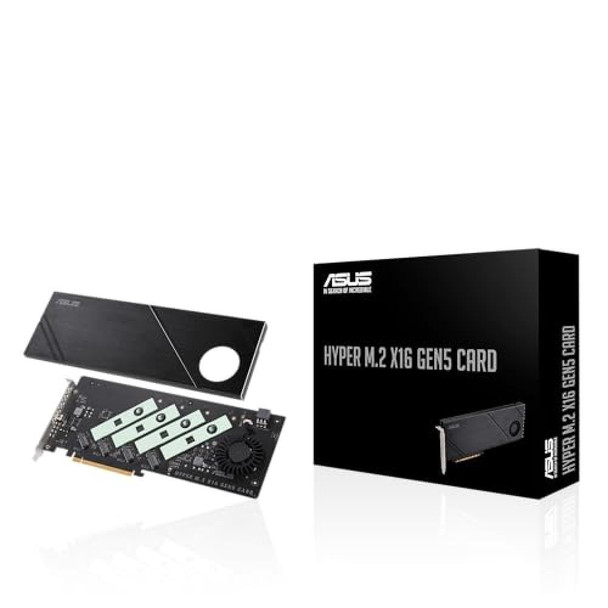

Asus Hyper M.2 x16 Gen5 Card (HYPERM.2X16GEN5CARD) HYPERM.2X16GEN5CARD
(No reviews yet)
Write a Review
- SKU:
- 20535137
- MPN:
- hyper-m-2-x16-gen5-card
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/12/2025 07:29:12 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $99.44 each 99.44 |
| Buy 3 or above | and pay only $97.32 each 97.32 |
- Stock Update:
- 12/12/2025 07:29:12 PM PST
Description
This item is brand-new, factory sealed.
ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platforms1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives
Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard's chassis fan header to allow the motherboard to control and regulate fan speed
Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers
Support RAID Function
The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs*.(*Precise specifications and features vary by model . Please refer to the specification page)
One Card, 8X The Bandwidth
The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card 8X the bandwidth of a single PCIe 4.0 drive.
Enhanced Cooling
The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance. Spec
PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps.
4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0)
Note: Supports PCIe M.2 storage devices only.
1 x M.2 FAN Power Switch
4 x M.2 access LEDs
Active fan with heatsink, support fan control from MB chassis fan header
Maximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards.
Please see the FAQ link for full compatible lists and further information:
https://www.asus.com/support/FAQ/1037507
PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps.
4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0)
Note: Supports PCIe M.2 storage devices only.
1 x M.2 FAN Power Switch
4 x M.2 access LEDs
Active fan with heatsink, support fan control from MB chassis fan headerItem Dimension (L inchxW inchxH inch)
11 x 13 x 3
Weight
4.00 lb
Warranty Information
3 Years
Features
Environmentally Friendly:
Yes
Restriction of Hazardous Substances (RoHS)
China
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Height | 0.6" |
| Width | 4.8" |
| Depth | 11.4" |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Support RAID Function The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs. One Card, 8X The Bandwidth The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card - 8X the bandwidth of a single PCIe 4.0 drive. Enhanced Cooling The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance. A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers. The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4. Designed For Unthrottled Transfer Speeds The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots - supporting both PCIe 5.0 and 4.0 - that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots ,providing up to 128 GT/s bandwidth per M.2 slot. |
| Product Type | M.2 to PCI Express Adapter |
| Product Name | Hyper M.2 x16 Gen5 Card |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | HYPERM2X16GEN5CARD |
| Product Line | Hyper |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
