Asus

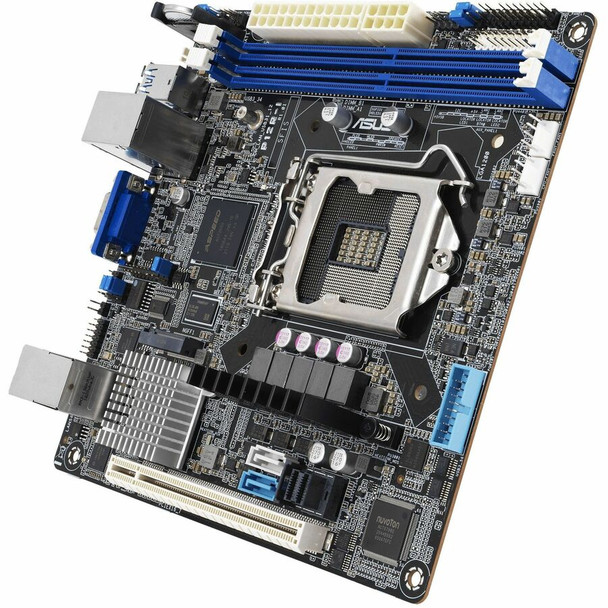

Asus P12R-I Server Motherboard - Intel C252 Chipset - Socket LGA-1200 - Mini ITX
- SKU:
- 20575977
- MPN:
- p12r-i
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/06/2026 09:10:09 PM PST
- Stock Update:
- 04/06/2026 09:10:09 PM PST
Description
This item is brand-new, factory sealed.
PCIe 4.0 Ready
PCI Express®(PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish®API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Features
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Onboard Interfaces | |
| Total Number of Onboard USB Ports | 6 |
| Number of M.2 Interfaces | 1 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Weight (Approximate) | 1.15 lb |
| Width | 6.7" |
| Depth | 6.7" |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 64 GB |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2600 |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | PCIe 4.0 Ready PCI Express ® (PCIe ® ) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads. Intel Xeon E-2300 processors Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs. Dual Ethernet bandwidth With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications. ASUS ASMB10-iKVM ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish ® API. ASUS Control Center ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. |
| Product Type | Server Motherboard |
| Product Name | P12R-I Server Motherboard |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | P12R-I |
| Product Model | P12R-I |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Model | C252 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
