Asus

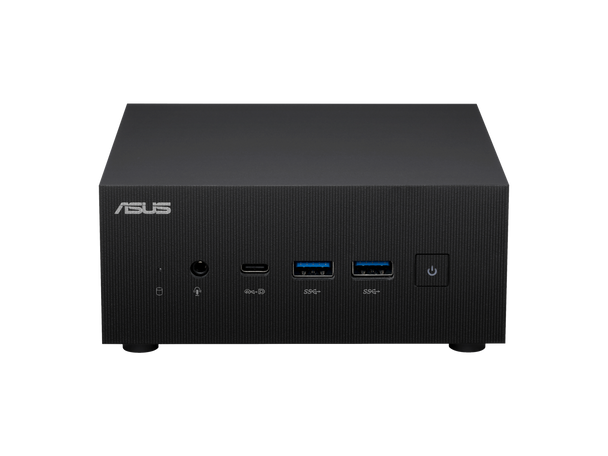

Asus ExpertCenter PN53-BB5000X1TD Barebone System - Mini PC - AMD Ryzen 5 6600H
- SKU:
- 19905681
- MPN:
- pn53-bb5000x1td
- Availability:
- Out of stock
- Stock Update:
- 01/14/2026 01:37:19 PM PST
- Stock Update:
- 01/14/2026 01:37:19 PM PST
Description
This item is brand-new, factory sealed.
Ultra-compact mini PC with AMD Ryzen™ 6000H series processors and AMD Radeon ™ Graphics, supports Quad-4K displays and 8K resolution, 2x PCIe® Gen4x4 M.2 NVMe® SSD, 2.5 Gb LAN, WiFi 6E
- Powered by the latest AMD Ryzen™ 6000H Series Processor with Radeon™ graphics
- Quad-4K displays support and 8K UHD support**
- Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
- Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
- Configurable Ports support DP1.4/VGA/COM/HDMI options
- 24/7 reliability - Extensively tested to ensure long-term dependability
Ultra-compact Mini PC provides flexible, comprehensive solutions
ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe® Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.
System & CPU Performance
PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation.
Graphics Performance
ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks.
Ultrafast PCIe® 4.0 SSD
PCIe 4.0 doubles the data transfer rate of the prior PCIe 3.0 standard. ExpertCenter PN53 support one PCIe Gen4 x4 SSD to deliver greater data performance and lower latency.
Versatile USB 4 Type-C
Power Delivery
The Power Delivery (PD) function can either receive power from a supported display or supply power to mobile devices.
Superfast data transfers
Experience up to 40 Gbps data transmission speeds with USB
DisplayPort™
Enjoy up to 8K @ 30 Hz video output.
Faster and Better DDR5 RAM
ASUS ExpertCenter PN53 is powered by the new AMD 6000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks.
Package Contents:
- ExpertCenter PN53-BB5000X1TD Barebone System
- Power Adapter
Features
- ExpertCenter PN53-BB5000X1TD Barebone System
- Power Adapter
Environmentally Friendly:
Yes
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Controllers | |
| Controller Type | Serial ATA/600 |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Processor | |
| 64-bit Processing | Yes |
| Processor Model | 6600H |
| Maximum Turbo Speed | 4.50 GHz |
| Processor Type | Ryzen 5 |
| Processor Speed | 3.50 GHz |
| Chipset | |
| Chipset Manufacturer | AMD |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Weight (Approximate) | 1.65 lb |
| Product Color | Black |
| Height | 2.3" |
| Color Family | Black |
| Width | 4.7" |
| Depth | 5.1" |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Maximum Memory Supported | 64 GB |
| Total Number of Memory Slots | 2 |
| Memory Standard | DDR5-4800/PC5-38400 |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Graphics Controller Model | Radeon Graphics 660M |
| Graphics Memory Technology | DDR5 SDRAM |
| General Information | |
| Brand Name | Asus |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Ultra-compact mini PC with AMD Ryzen™ 6000H series processors and AMD Radeon ™ Graphics, supports Quad-4K displays and 8K resolution, 2x PCIe® Gen4x4 M.2 NVMe® SSD, 2.5 Gb LAN, WiFi 6E Powered by the latest AMD Ryzen™ 6000H Series Processor with Radeon™ graphics Quad-4K displays support and 8K UHD support** Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port Onboard 2.5GbE LAN delivering faster Ethernet connectivity Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD Integrated Wi-Fi 6E and Bluetooth for easy cordless connections Configurable Ports support DP1.4/VGA/COM/HDMI options 24/7 reliability - Extensively tested to ensure long-term dependability Ultra-compact Mini PC provides flexible, comprehensive solutions ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe ® Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads. System & CPU Performance PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation. Graphics Performance ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks. Ultrafast PCIe ® 4.0 SSD PCIe 4.0 doubles the data transfer rate of the prior PCIe 3.0 standard. ExpertCenter PN53 support one PCIe Gen4 x4 SSD to deliver greater data performance and lower latency. Versatile USB 4 Type-C Power Delivery The Power Delivery (PD) function can either receive power from a supported display or supply power to mobile devices. Superfast data transfers Experience up to 40 Gbps data transmission speeds with USB DisplayPort ™ Enjoy up to 8K @ 30 Hz video output. Faster and Better DDR5 RAM ASUS ExpertCenter PN53 is powered by the new AMD 6000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks. |
| Product Type | Barebone System |
| Product Name | ExpertCenter PN53-BB5000X1TD Barebone System |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN53-BB5000X1TD |
| Product Model | PN53-BB5000X1TD |
| Product Series | PN53 |
| Product Line | ExpertCenter |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types |
|
| Interfaces/Ports | |
| USB Type-C Detail | 1 x USB 4 Type-C (w/ DP output); 1 x USB 4 Type-C (w/ DP output, PD power input) |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 5 |
| HDMI (Rear) | Yes |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Operating System | |
| Operating System Supported |
|
