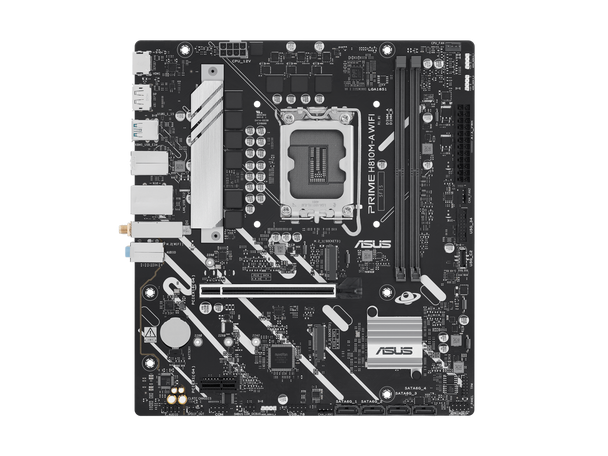

Asus Prime H810M-A WIFI-CSM Desktop Motherboard - Intel H810 Chipset - Socket LGA-1851 - Micro ATX (primeh810m-awifi-c)

This item is brand-new, factory sealed.

PRIME H810M-A WIFI-CSM

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.


ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.


Digital Power Design

Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2).The PRIME H810M-A WIFI-CSM features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel processors plus steady performance for day-to-day use.


DIMM Fit

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration. CPU
Support Intel Core^TM Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 ^Note2
Note1: Refer to https://www.asus.com/support/download-center/ for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
Intel H810 Chipset Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) ^Note1
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Note1: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Note2: Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics
1 x DisplayPort ^Note2
1 x HDMI^TM port ^Note3
Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Note3: Supports 4K at 60Hz as specified in HDMI 2.1.
Note4: VGA resolution support depends on processors or graphic cards resolution. Expansion Slots
Intel Core^TM Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel H810 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports Ethernet
1 x Intel 1Gb Ethernet port ^Note
ASUS LANGuard
Note: With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3. Wireless and Bluetooth
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3^Note
Note: The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications. USB
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C) ^Note1
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Note1: USB Type-C power delivery output: max. 5V/3A
Note2: USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC ^Note
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI^TM port
1 x Wi-Fi module
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Addressable Gen 2 headers Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PME, PXE Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O shield
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express activation key card
1 x Quick start guide Operating System
Windows 11 (22H2 and later), Windows 10 64-bit (21H2 and later) Form Factor
micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)Item Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00 lb

Warranty Information
3 Years
