ASUS PRIMERX9060XTO8G Prime RX 9060 XT 8 GB GDDR6 Graphics Card

This item is brand-new, factory sealed.

PRIME RADEON RX 9060 XT

Primed for Power

Experience Primal performance with the Prime Radeon RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.

Cooling

2.5-slot Design

The Prime Radeon RX 9060 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

Axial-tech Upgrades

Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology

All three fans come to a standstill when GPU temperatures are below 55C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60C, establishing a speed curve that balances performance and acoustics for work or play.

Dual Ball Fan Bearings

Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

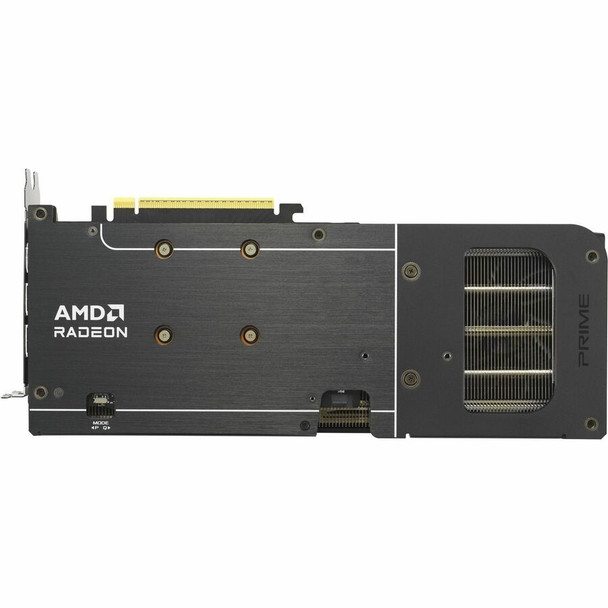

Vented Backplate

Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

MaxContact Design

MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2C, in concert with an extensive heatsink array and powerful Axial-tech fans.Graphic Engine
AMD Radeon^TM RX 9060 XTBus Standard
PCI Express 5.0OpenGL
OpenGL4.6Video Memory
8GB GDDR6Engine Clock
OC mode (GPU Tweak III): up to 3330 MHz (Boost Clock)/up to 2760 MHz (Game Clock)
Default mode: up to 3310 MHz (Boost Clock)/up to 2740 MHz (Game Clock)Stream Processors
2048Memory Speed
20 GbpsMemory Interface
128-bitResolution
Digital Max Resolution 7680 x 4320Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 2 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3)Maximum Display Support
3NVlink/ Crossfire Support
NoAccessories
1 x Thank you card
1 x Speedsetup ManualSoftware
ASUS GPU Tweak III and Drivers: please download all software from the support site.Recommended PSU
550WPower Connectors
1 x 8-pinSlot
2.5 SlotNote
1. Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the "Choose By Wattage" feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
2. All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
3. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
4. Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.Item Dimension (L inchxW inchxH inch)
16 x 10 x 4

Weight
5.00lb

Warranty Information
3 Year Warranty
