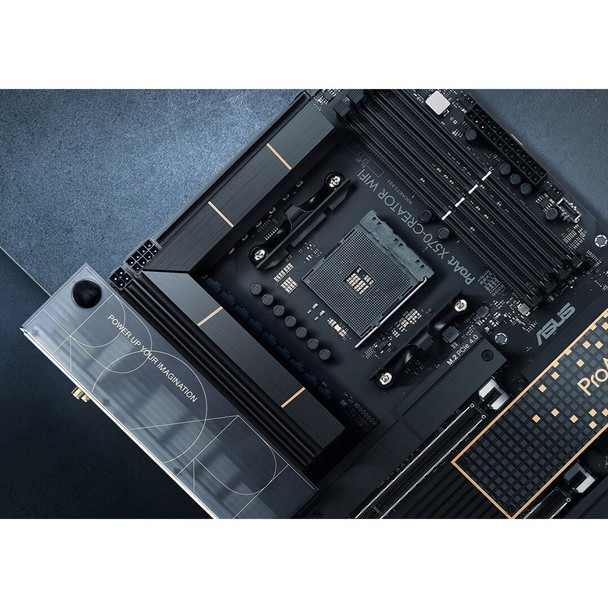

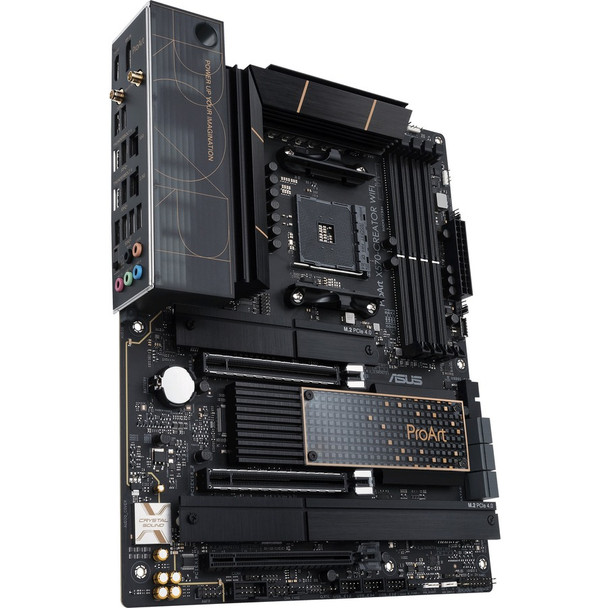

Asus ProArt X570-CREATOR WIFI Desktop Motherboard - AMD Chipset - Socket AM4 - ATX (proartx570-creator)

This item is brand-new, factory sealed.

AMD X570 Ryzen AM4 ATX content creation motherboard with PCIe 4.0, passive PCH cooling design, dual Thunderbolt 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, three M.2 with heatsinks, USB 3.2 Gen 2 and advanced security management


AM4 socket: Ready for AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series CPUs

Robust performance: 14+2 power stages, ProCool II power connector, high-quality alloy chokes and durable capacitors

Comprehensive thermal design: Massive VRM heatsink, passive chipset heatsink and M.2 aluminum heatsinks

Extensive connectivity: Dual Thunderbolt 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, three PCIe 4.0 M.2 slots and USB 3.2 Gen 2 ports

Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express

ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control

Trusted stability: Tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability


Performance to Create

ProArt X570-Creator WiFi perfects the art of performance, empowering creativity and maximizing the computing power of the latest AMD Ryzen processors with powerful hardware and software, efficient cooling and lightning-fast connectivity, including Thunderbolt 4, 10 Gb and 2.5 Gb onboard Ethernet, and WiFi 6E.


Extensive Connectivity

A comprehensive array of powerful I/O ports including two Thunderbolt 4 ports plus 10 Gb and 2.5 Gb Ethernet ports enables quick data transfers and extensive storage options with flexible, hassle-free connectivity. CPU
AMD Ryzen^TM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
AMD Socket AM4 for AMD Ryzen^TM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
Refer to www.asus.com for CPU support list. Chipset
AMD X570 Chipset Memory
AMD Ryzen^TM 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen^TM 5000 G-Series and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen^TM 2000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen^TM 3000 G-Series and 2000-G Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
OptiMem II
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphics
1 x HDMI 2.1
2 x Intel Thunderbolt^TM 4 ports
1 x HDMI 2.1(4K at 60Hz)
2 x Intel Thunderbolt^TM 4 ports (USB Type-C) support DisplayPort 1.2/1.4 and Thunderbolt^TM video outputs
VGA resolution support depends on processors or graphic cards resolution. For more details about the video input and output settings please refer to the user manual. Expansion Slots

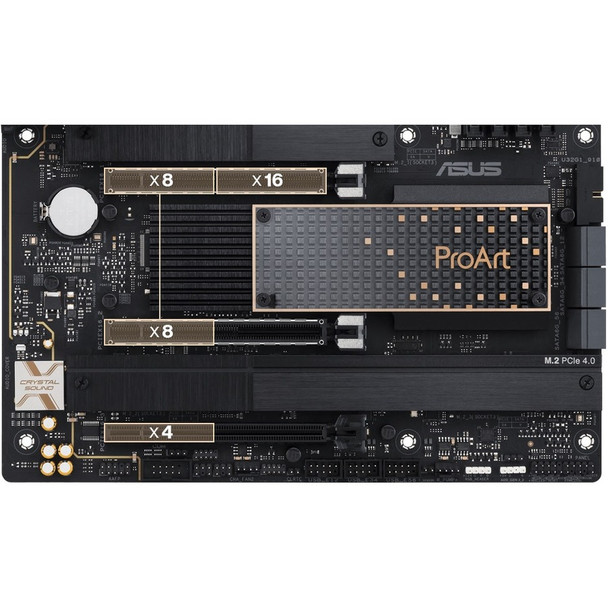

AMD Ryzen^TM 5000 Series and 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
AMD Ryzen^TM 5000 G-Serie, 4000 G-Series and 2000 Series Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
AMD Ryzen^TM 2000 G-Series and 3000 G-Series Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Support PCIe bandwidth bifurcation for RAID on CPU function.
PCIEX16_2 slot share bandwidth with M.2_2, which runs at PCIe 4.0/3.0 x8 by default.
When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings. Storage
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen^TM 5000 Series and 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
AMD Ryzen^TM 5000 G-Serie, 4000 G-Series and 2000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 and SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)
AMD Ryzen^TM 2000 G-Series and 3000 G-Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 and SATA modes)
AMD X570 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes)
Supports RAID 0, 1, 10
6 x SATA 6Gb/s ports
M.2_2 slot share bandwidth with PCIEX16_2. When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings. Ethernet
1 x Marvell AQtion AQC113CS 10Gb Ethernet
1 x Intel I225-V 2.5Gb Ethernet
ASUS LANGuard
1 x Intel 2.5Gb Ethernet Wireless and Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB
Rear USB:Total 10 ports
Rear USB (Total 10 ports)
2 x Thunderbolt^TM 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support
4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports
2 x Thunderbolt^TM 4 USB Type-C port(s)
4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Intel I225-V 2.5Gb Ethernet port
1 x Marvell AQtion AQC113CS 10Gb Ethernet port
1 x ASUS Wi-Fi Module
5 x Audio jacks
1 x BIOS FlashBack^TM button Intrernal I/O Connectors
2 x Thunderbolt^TM 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x W_PUMP+ header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with Dr. MOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
- M.2 Q-Latch
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack^TM button
- BIOS FlashBack^TM LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
Bespoke Motherboard Design and Business Focused Features
- 24/7 Reliability
- Overcurrent Protection Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- 5-Way Optimization by Dual Intelligent Processors 5
TPU
EPU
Digi+ VRM
Fan Xpert 4
Turbo app
- EZ update
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
ProArt Creator Hub
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey BIOS
256 Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PME, PXE Accessories
Cables
4 x SATA 6Gb/s cables
1 x DP to DP cable for Thunderbolt^TM 4
Miscellaneous
1 x ASUS Wi-Fi moving antennas
2 x M.2 Rubber Package(s)
1 x M.2 SSD screw package(s)
1 x Q-connector
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User manual Operating System
Windows 10 64-bit, Windows 11 Ready
Windows 11 64-bit, Windows 10 64-bit Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ATXItem Dimension (L inchxW inchxH inch)
14 x 11 x 4

Weight
5.49 lb

Warranty Information
3 Years

Package Contents:

• ProArt X570-CREATOR WIFI Desktop Motherboard
• 4 x SATA 6Gb/s Cables
• 1 x DP to DP Cable for Thunderbolt 4
• 1 x ASUS Wi-Fi Moving Antennas
• 2 x M.2 Rubber Package(s)
• 1 x M.2 SSD Screw Package(s)
• 1 x Q-connector
• 1 x Support DVD
• 1 x ACC Express Activation Key Card
• 1 x User Manual
