ASUS TUF-GAMING-1000G Power Supply Unit

This item is brand-new, factory sealed.

Built For The Long Haul

The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.



TUF Components

Top marks

With military-grade components, including capacitors rated for 105C operation and up to 170,000 hours lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.

Dual Ball Fan Bearings

2x longer lifespan

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating

All wrapped up

A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.



80 Plus Gold Certification

Heart of gold

The TUF Gaming 1000W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation affording it 80 PLUS Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

ATX 3.0 Compatible

Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.Model
TUF Gaming 1000W Gold

Intel Form Factor
ATX12V

ATX 3.0
Yes

Efficiency
80Plus Gold

Protection Features
OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials
ROHS

AC Input Range
100-240Vac

DC Output Voltage
+3.3V +5V +12V -12V +5Vsb

Maximum Load
25A 25A 83.3A 0.8A 3A

Combined Load
130W 130W 1000W 9.6W 15W

Total Output
1000W

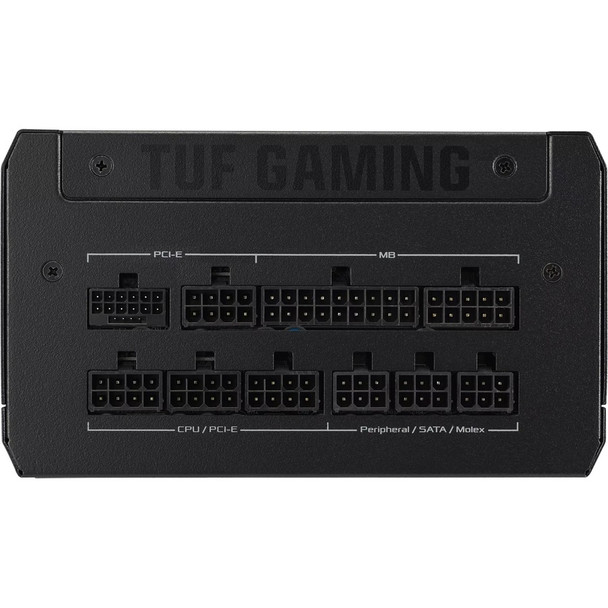

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU and component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4

Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable tie x 3
User Manual x 1

0dB Fan Button
NoItem Dimension (L inchxW inchxH inch)
13 x 8 x 5

Weight
6.98 lbs

Warranty Information
10-Year Warranty
