Asus

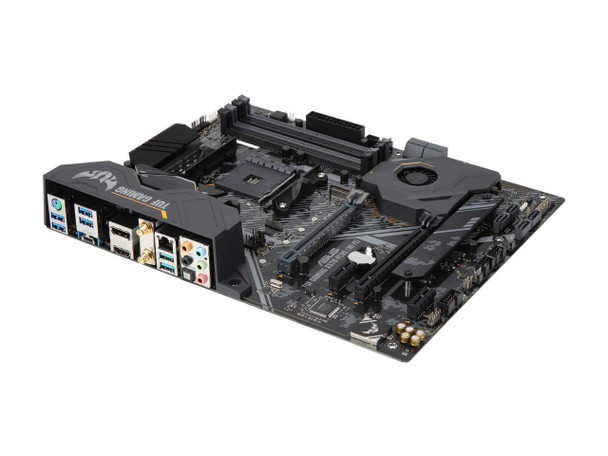

TUF GAMING X570-PLUS [WI-FI] Desktop Motherboard - AMD Chipset - Socket AM4 - ATX (tufgamingx570pluswi)

(No reviews yet) Write a Review
SKU:
18013538
MPN:
tufgamingx570pluswi
Availability:
Out of stock
Stock Update:
01/14/2026 01:37:19 PM PST
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
  • ALTIMAGE1
  • ALTIMAGE2
  • ALTIMAGE3
  • ALTIMAGE4
  • Main

Out of stock

Stock Update:
01/14/2026 01:37:19 PM PST

Description

This item is brand-new, factory sealed.

Specifications

  • Mfr Part Number: TUF GAMING X570-PLUS (WI-FI)
  • CPU: AMD AM4 Socket for 3rd and 2nd  Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
  • Chipset: AMD X570
  • Memory:
    • AMD Ryzen 3rd Generation Processors
      - 4 x DIMM, max. 128GB, DDR4 4400(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, un-buffered memory
    • AMD Ryzen 2nd Generation Processors
      - 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, un-buffered memory
    • AMD Ryzen 2nd and 1st Generation with Radeon Vega Graphics Processors
      - 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, un-buffered memory
      - Dual channel memory architecture
      - ECC Memory (ECC mode) support varies by CPU.
  • Expansion Slots:
    • AMD Ryzen 3rd Generation Processors
      - 1 x PCIe 4.0 x16 (x16 mode)
    • AMD Ryzen 2nd Generation Processors
      - 1 x PCIe 3.0 x16 (x16 mode)
    • AMD Ryzen 2nd and 1st Generation with Radeon Vega Graphics Processors
      - 1 x PCIe 3.0/2.0 x16 (x8 mode)
    • AMD X570 chipset
      - 1 x PCIe 4.0 x16 (max at x4 mode)
      - 2 x PCIe 4.0 x1
  • Graphics:
    • Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support: HDMI/DisplayPort ports
      - Supports HDMI1.4b with max. resolution 4096 x 2160@24Hz
      - Supports DisplayPort with max. resolution 4096 x 2160@60Hz
  • Multi-GPU Support:
    • 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
      - Supports AMD 2-Way CrossFireX Technology
  • Storage:
    • 3rd Gen AMD Ryzen Processors:
      - 1 x M.2_1 socket 3 with M key, type 2242/2260/2280/ 22110 storage devices support (SATA & PCIE 4.0 x 4 mode)
    • 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
      - 1 x M.2_1 socket 3 with M key, type 2242/2260/2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    • AMD X570 chipset :
      - 1 x M.2_2 socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 4.0 x 4 mode)
      - 8 x SATA 6Gb/s port(s)
      - Support Raid 0, 1, 10
  • LAN:
    • Realtek L8200A
    • ASUS Turbo LAN Utility
    • TUF LANGuard
  • Wireless:
    • Intel Wireless-AC 9260
    • 2x2 Wi-Fi 5(802.11 a/b/g/n/ac) with MU-MIMO support dual frequency band 2.4/5 GHz
    • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Bluetooth: Bluetooth 5.0
  • Audio:
    • Realtek S1200A 8-channel high definition audio CODEC
      - Exclusive DTS Custom for GAMING Headsets
      - Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
      - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
      - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
      - Supports jack-detection and front panel jack-retasking
      - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
  • USB:
    • 3 x USB 3.2 Gen 2 ports (up to 10Gbps) at back panel(2*Type A, 1*Type C)
    • 6 x USB 3.2 Gen 1 ports (2 ports @mid-board, 4 ports @back panel)
    • 4 x USB 2.0 ports at mid-board
  • Back I/O Ports:
    • 1 x DisplayPort port
    • 1 x HDMI port
    • 1 x PS/2 combo port
    • 1 x LAN (RJ45) port
    • 1 x 2x2 WI-FI module
    • 3 x USB 3.2 Gen 2 ports (2*Type-A, 1*Type-C)
    • 4 x USB 3.2 Gen 1 ports
    • 5 x Audio jacks + 1 x Optical S/PDIF out
  • Internal connectors:
    • 1 x USB 3.2 Gen 1 connectors support additional 2 USB ports (19-pin)
    • 2 x USB 2.0 connectors support additional 4 USB ports
    • 1 x M.2_1 socket 3 with M key, type 2242/2260/2280/ 22110 storage devices support (SATA & PCIE 4.0/3.0 x 4 mode)
    • 1 x M.2_2 socket 3 with M key, type 2242/2260/2280/ 22110 storage devices support (SATA & PCIE 4.0 x 4 mode)
    • 8 x SATA 6.0Gb/s connectors
    • 1 x Addressable RGB Header(s)
    • 2 x RGB Header(s)
    • 1 x CPU Fan connector (support DC/PWM mode)
    • 1 x CPU OPT Fan connector (1 x 4 -pin)
    • 1 x AIO_Pump header (4-pin)
    • 3 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control
    • 1 x Front panel audio connector (AAFP)
    • 1 x 24-pin EATX Power connector
    • 1 x 8-pin EATX 12V Power connector
    • 1 x 4-pin EATX 12V Power connector
    • 1 x System Panel*
    • 1 x COM port
    • 1 x SPI_TPM header (14-1pin)
    • 1 x Clear CMOS jumper
  • BIOS: 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen,  and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability: WOL by PME, PXE
  • Accessories:
    • 2 x SATA 6Gb/s cables
    • 1 x IO Shield
    • 1 x M.2 Screw Package
    • 1 x Support DVD
    • 1 x TUF Gaming Sticker
    • 1 x TUF Certification card(s)
    • 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    • 1 x User's manual
  • Support DVD:
    • Drivers
    • ASUS Utilities
    • ASUS EZ Update
    • Anti-virus software (OEM version)
  • Operating System: Windows 10 64-bit
  • Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5cm x 24.4cm)
  • *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers


Package Contents:
  • GAMING X570-PLUS (WI-FI) Desktop Motherboard
  • User's Manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  • 1 x TUF GAMING Sticker
  • 1 x TUF Certification card(s)

Features

Package Contents:
  • GAMING X570-PLUS (WI-FI) Desktop Motherboard
  • User's Manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  • 1 x TUF GAMING Sticker
  • 1 x TUF Certification card(s)



Environmentally Friendly:
Yes



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Country of Origin:
China



Specs

Physical Characteristics
Form FactorATX
Width12"
Depth9.6"
Warranty
Limited Warranty3 Year
I/O Expansions
Number of PCI Express x1 Slots2
Total Number of Expansion Slots4
Number of PCI Express x16 Slots2
Total Number of PCI Express Slots4
Memory
Memory TechnologyDDR4 SDRAM
Number of Memory Slots4
Memory Form Factor
  • DIMM
  • UDIMM
Maximum Memory Supported128 GB
General Information
Brand NameTUF
Manufacturer Website Addresshttp://usa.asus.com
Marketing InformationAMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, Wi-Fi, 14 Dr. MOS power stages, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting
AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors
Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
DURABLE. STABLE. RELIABLE.
TUF Gaming X570-Plus distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.
Dr. MOS
The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.
EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
TUF GAMING ALLIANCE
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
IMMERSIVE GAMING
TUF Gaming X570-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
Product TypeDesktop Motherboard
Product NameGAMING X570-PLUS (WI-FI) Desktop Motherboard
ManufacturerASUS Computer International
Manufacturer Part NumberTUF GAMING X570-PLUS (Wi
Product ModelGAMING X570-PLUS (WI-FI)
Processor & Chipset
Chipset ManufacturerAMD
Multi GPU SupportedCrossFireX
Processor Supported
  • Ryzen 7
  • Ryzen 7 PRO
  • Ryzen 5
  • Ryzen 3
  • Ryzen 3 PRO
  • Ryzen 9
Total Processor Supported1
Processor SocketSocket AM4
Chipset ModelX570
Onboard Interfaces
Number of SATA Interfaces8
Total Number of Onboard USB Ports6
Number of M.2 Interfaces2
Interfaces/Ports
S/PDIFYes
DisplayPortYes
HDMIYes
Total Number of USB Ports7
I/O Controller
RAID SupportedYes
Controller TypeSerial ATA/600
RAID Levels
  • 0
  • 1
  • 10
Video
Onboard VideoCPU Dependent Video
Network & Communication
Wireless LANYes
Wireless LAN StandardIEEE 802.11a/b/g/n/ac
BluetoothYes
Gigabit EthernetYes
Audio
Audio Channels7.1
