TUF Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX (tufgamingz790-pluswifi)

This item is brand-new, factory sealed.

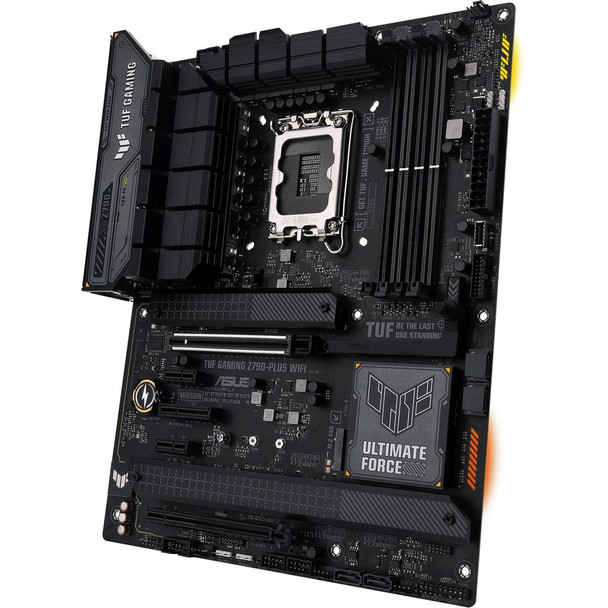

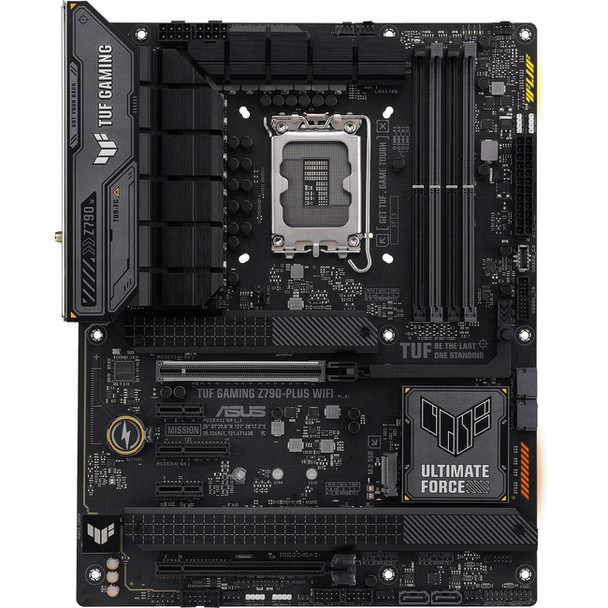

TUF GAMING Z790-PLUS WIFI

TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.


ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING Z790-PLUS WIFI is the perfect foundation for your next Intel battle rig.


16(60A)+1(60A)+1 Power Stages

16(60A)+1(60A)+1 power stages are rated to handle up to 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.


EASY PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.


Build With Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger. CPU
Intel Socket LGA1700 for Intel Core^TM 14th and 13th Gen Processors, Intel Core^TM 12th Gen, Pentium Gold and Celeron Processors^Note1
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0^Note2
Note1: Refer to www.asus.com for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
Intel Z790 Chipset Memory
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Note: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Note: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ Graphics
1 x DisplayPort^Note2
1 x HDMI port^Note3
Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Note3: Supports 4K at 60Hz as specified in HDMI 2.1.
Note4: VGA resolution support depends on processors or graphic cards resolution. Expansion Slots
Intel Core^TM Processors (14th and 13th and 12th Gen)
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
Note: Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core^TM Processors (14th and 13th and 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 13th and 12th Gen processors support PCIe 4.0 x4 mode
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes)
4 x SATA 6Gb/s ports
Note: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet
1 x Intel 2.5Gb Ethernet
TUF LANGuard Wireless and Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band ^Note1
Bluetooth v5.3^Note2
Note1: WiFi 6E 6GHz regulatory may vary between countries.
Note2: The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications. USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
Note: Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt^TM (USB4) header Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PME, PXE Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF GAMING sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide Operating System
Windows 11, Windows 10 64-bit Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )Item Dimension (L inchxW inchxH inch)
14 x 11 x 3

Weight
4.69 lb

Warranty Information
3 Year Warranty
